UGREEN 10109 5m HDMI 1.4 Cable, 4K30, ARC & HEC

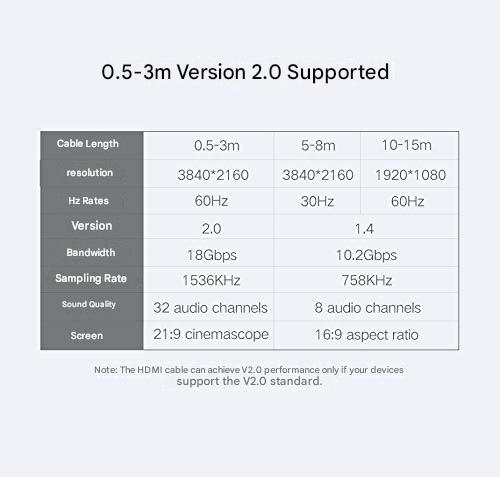

A 5m full-size HDMI cable for 4K30 or Full HD connections. The gallery provides unusually useful length-specific evidence: 5–8m is shown at 10.2Gbps and 3840×2160 at 30Hz, so this corrected page does not borrow the 18Gbps/4K60 rating shown only for shorter family lengths.
5m4K30 / 1080pUp to 10.2Gbps for the 5m lengthPassive cable
Fast purchase decision
Overview
Best suited to
4K30 media player or computer to a television; Laptop to a conference display at 4K30 or 1080p.
Choose it for
5m reach, full-size hdmi type-a male to full-size hdmi type-a male and 4K30 / 1080p.
Do not assume

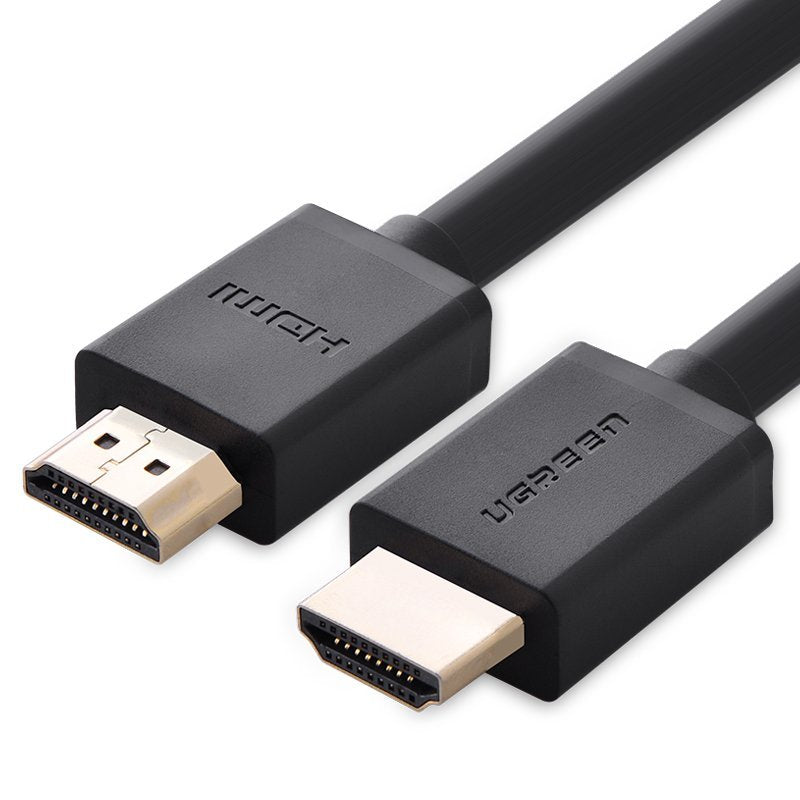

SKU 10109 — Overview. This view shows the cable form, connector format and physical model before the route is planned.
Highlights
Key features
length
5m, selected for the stated route—not a generic family length.
Connector fit
Full-size HDMI Type-A male to full-size HDMI Type-A male
Video target
Up to 4K at 30Hz for the 5m length; 1080p is also supported
Signal capacity
Up to 10.2Gbps for the 5m length
Direction
Non-directional passive cable
Feature scope
4K30 and 1080p video, ARC, HDMI Ethernet Channel on compatible equipment, 3D signalling.
Model guidance
How to read the video rating
Maximum capability is not a guarantee for every setup
Rated: Up to 4K at 30Hz for the 5m length; 1080p is also supported.
Published capacity: Up to 10.2Gbps for the 5m length.
The source, display and selected ports must all support the requested mode.
Receivers, switches, splitters, capture devices, docks, adapters, wall plates and extra cables may lower the result.
SKU 10109 — How to read the video rating. Read the pictured performance as a cable ceiling: the complete HDMI chain still decides the negotiated resolution and refresh rate.
What the cable can carry
Audio and feature support
4K30 and 1080p video
The cable can transport the listed signal only when the source, content and receiving equipment support it.
ARC
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
HDMI Ethernet Channel on compatible equipment
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
3D signalling
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
HDCP compatibility
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
up to 48-bit deep-colour wording
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
A cable does not decode Dolby or DTS audio, create HDR, generate extra frames or add ARC/eARC to an ordinary HDMI port. Those functions come from compatible devices, content and settings.
Model guidance
Construction and routing
Passive cable build

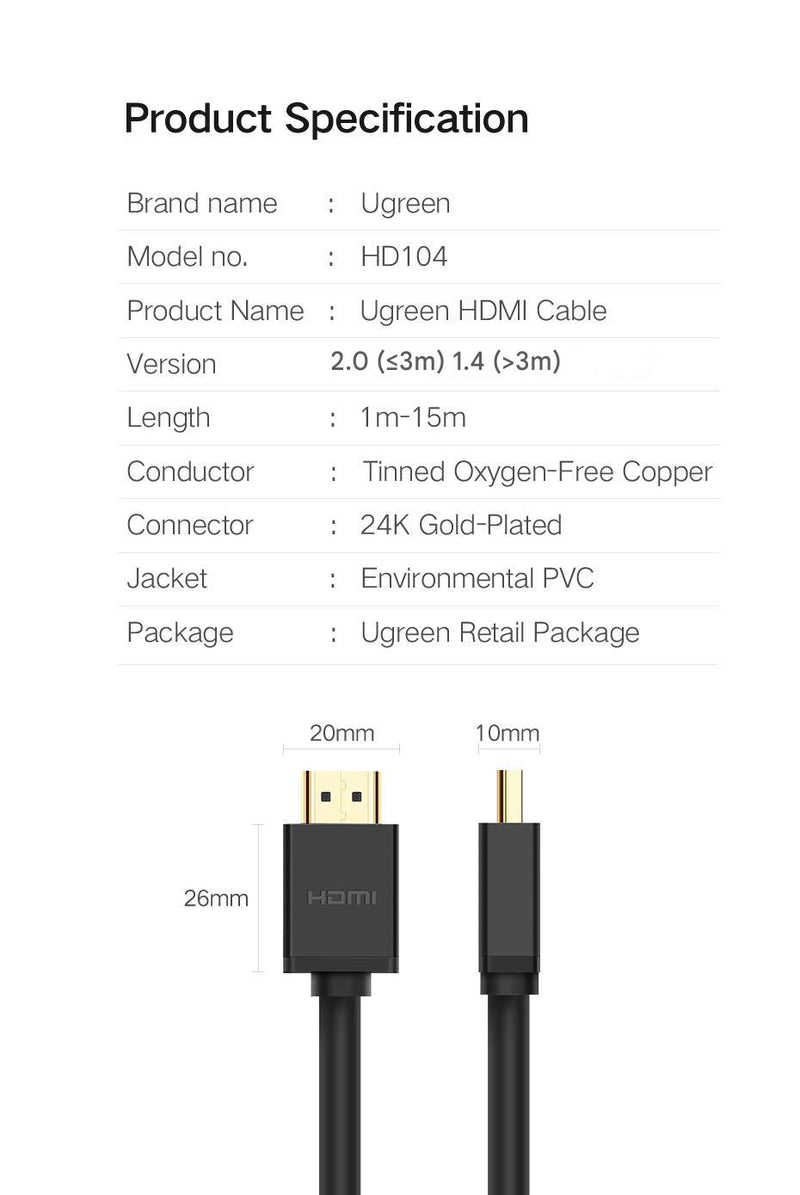

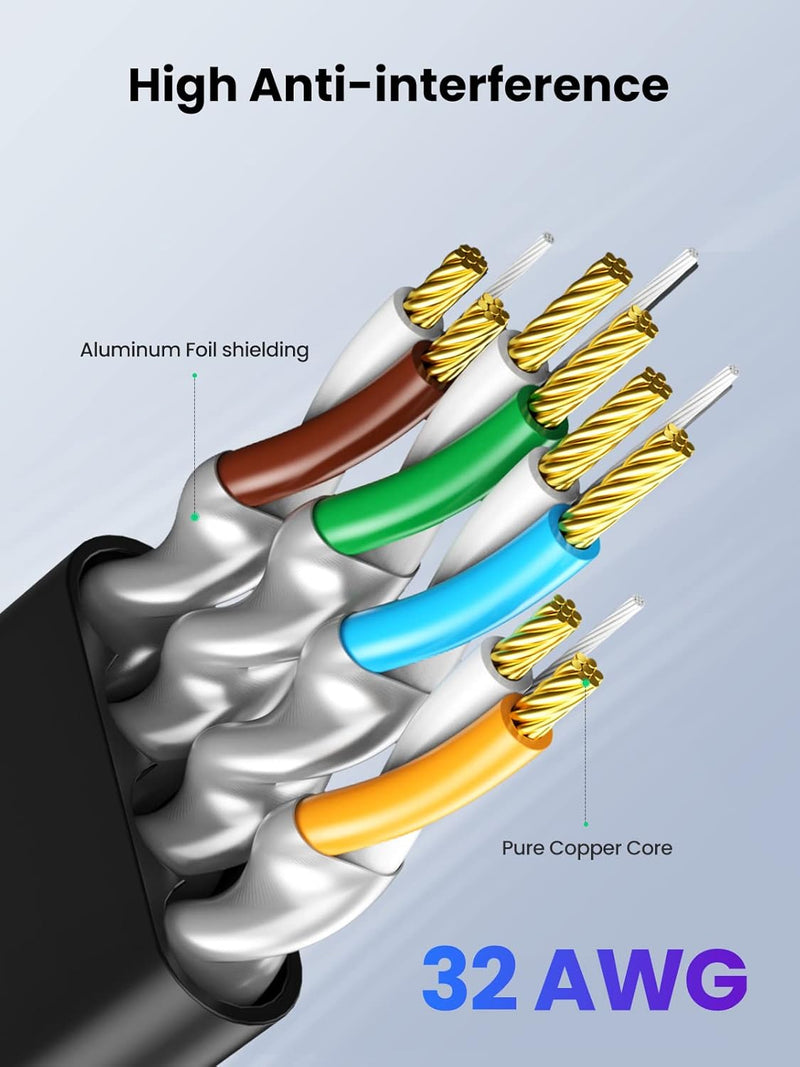

HD104-family passive cable with tinned oxygen-free copper conductors, aluminium-foil shielding, a flexible PVC jacket and 24K gold-plated connector wording in the gallery.
Non-directional passive cable
Plan gentle bends and protect the connector housings from pulling force.
Do not infer an in-wall, plenum, LSZH or fire rating unless it is printed on the supplied cable.
Test the intended mode before any route becomes difficult to access.

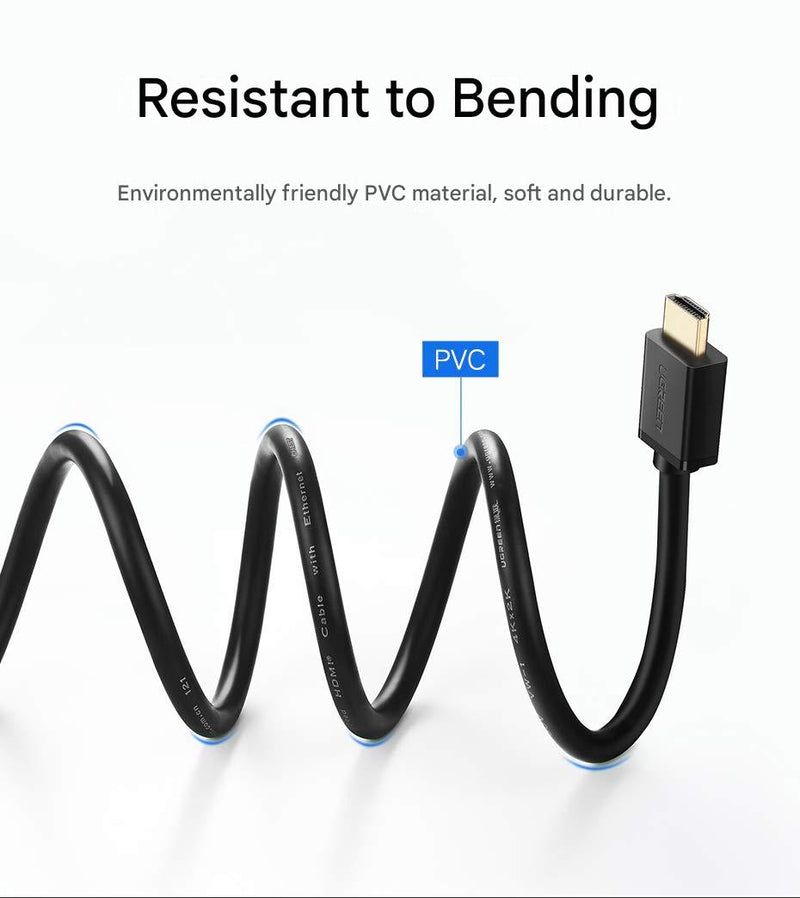

SKU 10109 — Construction and routing. This connector and build view supports the handling guidance: grip the housing, use relaxed bends and keep cable weight off the ports.
Practical examples
Use scenarios
Home entertainment
4K30 media player or computer to a television
Work and presentation
Laptop to a conference display at 4K30 or 1080p
Gaming and media
Blu-ray player, set-top box or console to a monitor or projector
Audio or convenient routing
Compatible TV ARC port to a soundbar or AV receiver
SKU 10109 — Use scenarios. This gallery use view is practical only after confirming length, connector format and the required end-to-end signal mode.
Connect • configure • verify
Setup and usability guidance
Step 1: Measure the route and confirm 5m reaches without stretching.
Step 2: Connect either end to source or display because the passive cable is non-directional.
Step 3: For 4K, choose 3840×2160 at 30Hz or a lower mutually supported mode.
Step 4: For ARC, use ports labelled ARC and enable HDMI-CEC/ARC settings on both devices.
Step 5: Verify the display-reported mode before final cable management.
After setup, open the television or monitor signal-information page. It is the quickest way to confirm the actual resolution, refresh rate and HDR state received by the display.
Model guidance
Compatible devices and systems
Match the connector and the port capability
TVs, monitors and projectors with full-size HDMI input
Computers, Blu-ray players, media boxes and consoles with full-size HDMI output
ARC-capable televisions and audio equipment
Earlier HDMI equipment at a mutually supported lower mode
Operating systems normally need no cable driver. A computer may still require the correct graphics driver and display settings, while a USB-C-only device needs a separate video-capable adapter or dock.
SKU 10109 — Compatible devices and systems. Pictured devices are connection examples; connector fit and mutually supported source/display capabilities must both be checked.
Avoid the common mismatch
Check before buying
The required physical route really suits 5m, with enough slack but no tight coil or tension.
Both connector ends match the intended ports: Full-size HDMI Type-A male to full-size HDMI Type-A male.
The requested mode stays within the rated specification: Up to 4K at 30Hz for the 5m length; 1080p is also supported.
Every adapter, receiver, switch, splitter, wall plate or extra cable in the path supports the same video, HDCP and audio requirements.
A concealed route does not require a safety rating that has not been for this cable.
Scope and limitations
What this product does
Provides a 5m physical HDMI connection using full-size hdmi type-a male to full-size hdmi type-a male.
Carries compatible digital video and audio within the 4K30 / 1080p guidance.
Passes supported functions such as 4K30 and 1080p video, ARC, HDMI Ethernet Channel on compatible equipment, 3D signalling when the complete system supports them.
Works as a passive cable without a separate power supply.
What this product does not do
It does not upscale content, create HDR, decode audio, generate frames or improve the native quality of a display.
It does not add a resolution, refresh rate, ARC/eARC feature or HDCP version to a port that lacks it.
It does not convert USB-C, DisplayPort, Mini/Micro HDMI, DVI or VGA.
It is not an active repeater, fibre extender or ordinary Ethernet/LAN cable.
Care and installation practice
What to do
Check this SKU and length on the order and received package before installation.
Hold the connector housing—not the cable body—when plugging or unplugging.
Test the intended video and audio mode with a direct connection before adding other devices.
Leave a relaxed curve and support the cable so the HDMI socket carries no weight.
What not to do
Do not force a misaligned HDMI plug or pull a connector out by the cable.
Do not sharply kink, knot, crush, staple, pinch under furniture or expose the cable to heat or moisture.
Do not assume the cable upgrades the HDMI capability of a source, display, adapter or receiver.
Do not conceal the cable in a wall or ceiling without verifying its printed rating and local installation rules.
Read before use
Warnings and limitations
Ceiling
This 5m SKU is not positioned for 4K60, 18Gbps, 4K120 or 8K.
Installation caution
HDMI Ethernet Channel is not a general-purpose Ethernet cable and works only when connected equipment supports that HDMI feature.
Not a converter
ARC support does not add ARC to ports that lack it.
Route and rating
No in-wall or fire rating is claimed.
model reference
Technical specifications
Brand
UGREEN
SKU
10109
Product type
Passive HDMI cable
Cable length
5 metres
Connectors
Full-size HDMI Type-A male to full-size HDMI Type-A male
Direction
Non-directional passive cable
Video guidance
Up to 4K at 30Hz for the 5m length; 1080p is also supported
Published bandwidth / rate
Up to 10.2Gbps for the 5m length
Construction
HD104-family passive cable with tinned oxygen-free copper conductors, aluminium-foil shielding, a flexible PVC jacket and 24K gold-plated connector wording in the gallery.
Feature support
4K30 and 1080p video, ARC, HDMI Ethernet Channel on compatible equipment, 3D signalling, HDCP compatibility, up to 48-bit deep-colour wording
Devices, adapters, cable-management accessories and any other cables shown in use images are not included. Confirm SKU 10109 and 5m on the received item.
Tap a question to expand
Product-specific FAQ
Does SKU 10109 support 4K at 60Hz?
No 4K60 claim is used for this 5m SKU. length-specific gallery evidence identifies 4K30 and 10.2Gbps for the 5–8m family.
What connectors does it use?
Full-size HDMI Type-A male to full-size HDMI Type-A male. It does not fit Mini HDMI, Micro HDMI, USB-C, DisplayPort, DVI or VGA without a separate compatible adapter.
Does the cable create a higher resolution or refresh rate?
No. It carries a compatible HDMI signal; it cannot add a mode, upscale content or improve a display panel.
Which devices can I connect?
Use it with compatible full-size HDMI equipment such as TVs, monitors and projectors with full-size HDMI input; Computers, Blu-ray players, media boxes and consoles with full-size HDMI output; ARC-capable televisions and audio equipment.
What determines the actual picture mode?
The lowest-capability source, port, display, content format, setting and intermediate device controls the final mode.
What does HDMI Ethernet Channel mean?
It is an HDMI feature for compatible equipment, not a replacement for an ordinary router-to-device Ethernet cable.
Can I route it inside a wall or ceiling?
No concealed-installation rating is claimed here. Check the physical cable marking and local requirements before any in-wall or ceiling route.
What should I check if there is no picture?
Reseat both ends, select the correct input, try a direct connection, lower the mode and verify every device and setting in the chain.
How should I care for the cable?
Use gentle curves, avoid crushing or pulling, grip connector housings, and keep the cable dry and away from heat.
What is included?
One UGREEN 10109 5m HDMI male-to-male cable. Connected equipment and adapters are not included.
