UGREEN 10204 5m Passive DisplayPort-to-HDMI Cable, 4K30
Overview
Desktop DisplayPort output to an HDMI television; Office computer to an HDMI projector.

What it does well.

Key features
Highlights
length. 5m; buy by the real route rather than a family length.

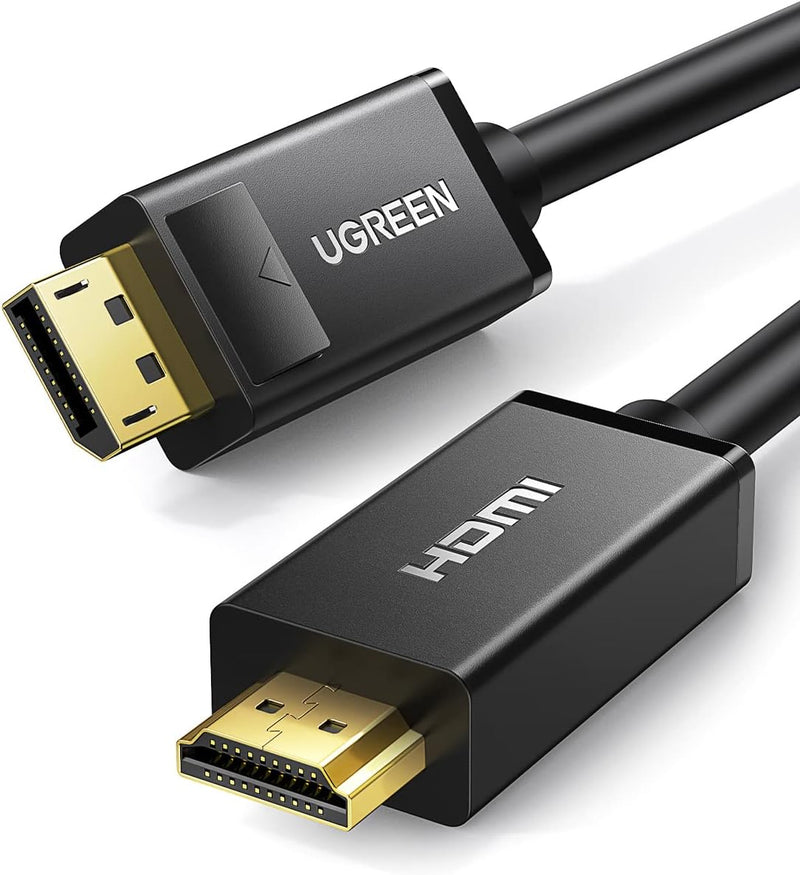

Connector fit. Full-size DisplayPort male to full-size HDMI Type-A male
Video target. Up to 4K at 30Hz, with lower modes supported by the connected source and display
Published signal rate. No dependable model Gbps figure is published
Signal direction. Unidirectional: DisplayPort source to HDMI display only
Construction. The official pages list tinned-copper wiring, aluminium foil and braided shielding, a durable PVC case and gold-plated connectors. The DisplayPort plug includes a release button in the live gallery.
How to read the video rating
Model guidance
Cable ceiling and actual device result are different. The cable is for DisplayPort-source-to-HDMI-display operation up to 4K30. It is not an HDMI-to-DisplayPort cable and does not promise 4K60, 4K120 or adaptive-sync gaming.
- Model guidance: Up to 4K at 30Hz, with lower modes supported by the connected source and display.
- Published rate: No dependable model Gbps figure is published.
- The source must provide compatible video over its DisplayPort output. The official regional page identifies this as a passive cable, so source-port conversion support matters.
- A dock, KVM, receiver, switch, splitter, adapter, coupler, wall plate or extra cable can lower the final mode.

Audio and display features
Functions, plainly explained
Passive model design on official UGREEN regional page. For this SKU or its official model family; connected equipment must support it.
Unidirectional DisplayPort-to-HDMI conversion path. Requires compatible source, display and settings.
Up to 4K30 video. Requires compatible source, display and settings.
Synchronous digital video and audio. Requires compatible source, display and settings.
Mirror and extended desktop modes supported by the host. Requires compatible source, display and settings.
Plug-and-play operation with no separate driver listed. Requires compatible source, display and settings.
A cable cannot upscale content, generate frames or add a feature absent from the source or display.

Construction and routing
Model guidance
Build and handling guidance. The official pages list tinned-copper wiring, aluminium foil and braided shielding, a durable PVC case and gold-plated connectors. The DisplayPort plug includes a release button in the live gallery.
- Unidirectional: DisplayPort source to HDMI display only
- Plan a relaxed route and protect both connector housings from sideways pull.
- Test the intended mode before the route becomes hard to access.
- Do not infer an in-wall, plenum, LSZH or fire rating unless it is printed on the supplied cable.

Use scenarios
Practical examples
Home and media. Desktop DisplayPort output to an HDMI television
Work and presentation. Office computer to an HDMI projector
Gaming or specialist display. Workstation to an HDMI monitor across a 5m route
Longer-term setup. Laptop docking station with full-size DisplayPort output to an HDMI display
Setup and usability guidance
Connect • configure • verify
After setup, use the display information screen or operating-system display panel to confirm the resolution, refresh rate, HDR state and active audio device actually negotiated.
- Step 1: Confirm the computer or graphics output is full-size DisplayPort and the display input is full-size HDMI.
- Step 2: Connect DisplayPort to the source and HDMI to the receiving display.
- Step 3: Select the correct HDMI input, then begin with a common 1080p mode.
- Step 4: Choose 4K30 only if the source, DisplayPort output and HDMI display all support it.
- Step 5: For removal, press the DisplayPort release button before pulling the plug straight out.
Compatible devices and systems
Model guidance
Match connector shape, signal direction and port capability.
Examples do not guarantee every generation or port reaches the cable ceiling; check both device manuals.
- Desktop PCs and graphics cards with compatible full-size DisplayPort output
- Laptops and docks with full-size DisplayPort output that supports the required conversion
- HDMI televisions, monitors and projectors
- Windows, macOS or Linux computers where the host graphics hardware supports the selected external-display mode
Check before buying
Avoid the common mismatch
- The route suits 5m, including connector clearance and relaxed service slack.
- The ports match: Full-size DisplayPort male to full-size HDMI Type-A male.

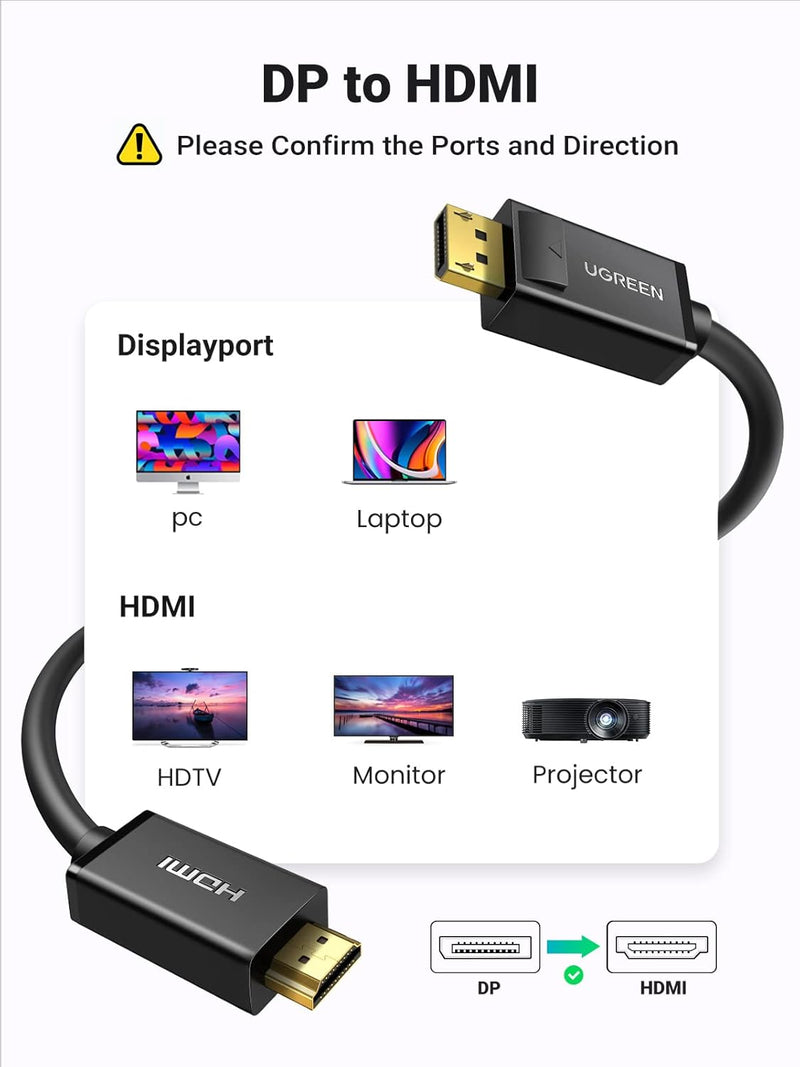

- DisplayPort connects to the source computer or graphics output; HDMI connects to the monitor, television or projector. HDMI-source-to-DisplayPort-display use is not supported.
- The source must provide compatible video over its DisplayPort output. The official regional page identifies this as a passive cable, so source-port conversion support matters.
- The desired mode stays within: Up to 4K at 30Hz, with lower modes supported by the connected source and display.
- Any intermediate device supports the same video, audio and content-protection requirements.

What this product does
Scope and limitations
- Converts a compatible DisplayPort source signal for an HDMI display.
- Carries digital video and source-to-display audio.
- Supports mirror or extended desktop modes controlled by the computer.
- Provides a 5m physical connection without a separate software driver.
- It does not work from an HDMI source to a DisplayPort monitor.
- It does not connect HDMI-output consoles such as PlayStation, Xbox or Switch to a DP display.
- It does not split one source across two independent displays.
- It does not provide USB-C, Mini DisplayPort, DVI or VGA conversion.

What to do
Care and installation practice
- Check port type and signal direction before routing.
- Test 1080p first, then move to 4K30.
- Use the DisplayPort release button when disconnecting.
- Keep the long route free of tight bends and pulling force.
- Do not reverse HDMI and DisplayPort ends.
- Do not use it with an HDMI-source console.
- Do not force or twist the latched DisplayPort plug.
- Do not assume a passive cable can overcome an incompatible source port.

Warnings and limitations
Read before use
Capability limit. The official regional page calls this model passive; source compatibility is therefore important.

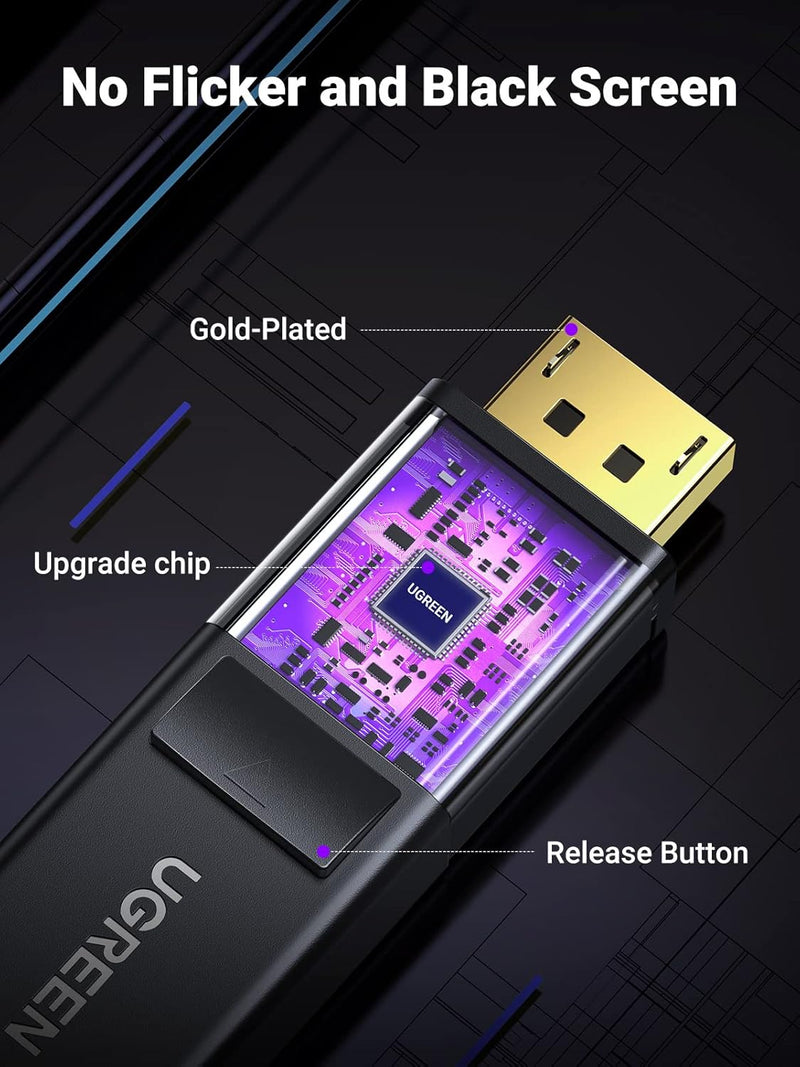

Compatibility caution. The live gallery contains an “upgrade chip” illustration, but this page does not reclassify the cable as active or claim external power.
Gallery or claim conflict. The ceiling is 4K30, not 4K60 or 4K120.
Installation warning. No in-wall, plenum, LSZH or fire rating is stated.
At a glance.
- Brand
- UGREEN
- SKU
- 10204
- Product type
- Passive unidirectional DisplayPort-to-HDMI cable
- Cable length
- 5 metres
- Connectors
- Full-size DisplayPort male to full-size HDMI Type-A male
- Direction
- Unidirectional: DisplayPort source to HDMI display only
- Video guidance
- Up to 4K at 30Hz, with lower modes supported by the connected source and display
- Published bandwidth / rate
- No dependable model Gbps figure is published
- Construction
- The official pages list tinned-copper wiring, aluminium foil and braided shielding, a durable PVC case and gold-plated connectors. The DisplayPort plug includes a release button in the live gallery.
- Feature support
- Passive model design on official UGREEN regional page, Unidirectional DisplayPort-to-HDMI conversion path, Up to 4K30 video, Synchronous digital video and audio, Mirror and extended desktop modes supported by the host, Plug-and-play operation with no separate driver listed
- Conversion path
- DisplayPort source to HDMI display
- Architecture
- Passive cable, per official UGREEN regional page
- Maximum video
- 4K at 30Hz
- Driver / external power
- No separate driver or power adapter listed
- Conductors / shielding
- Tinned copper with aluminium foil and braided shielding
- Connector detail
- DisplayPort release button; gold-plated connector wording
- In the box
- 1 × UGREEN 10204 5m DisplayPort-to-HDMI cable
model reference
In the box
Shown devices and accessories are not included. Confirm SKU 10204 and 5m before routing.
Questions buyers ask.
What is the video guidance for UGREEN 10204?
Up to 4K at 30Hz, with lower modes supported by the connected source and display. The cable is for DisplayPort-source-to-HDMI-display operation up to 4K30. It is not an HDMI-to-DisplayPort cable and does not promise 4K60, 4K120 or adaptive-sync gaming.
Is the cable directional?
DisplayPort connects to the source computer or graphics output; HDMI connects to the monitor, television or projector. HDMI-source-to-DisplayPort-display use is not supported.
What ports and source capability are required?
Full-size DisplayPort male to full-size HDMI Type-A male. The source must provide compatible video over its DisplayPort output. The official regional page identifies this as a passive cable, so source-port conversion support matters.
Will every compatible-looking device reach the maximum mode?
No. The source hardware, port version, graphics driver, operating system, display input, selected colour format and every intermediate device determine the negotiated result.
Does it need a driver or separate power adapter?
No separate cable driver or external power adapter is listed. The host graphics system may still need the correct driver and display settings.
Can I connect a PlayStation, Xbox or Switch to a DisplayPort monitor?
No. Those devices are HDMI sources, while this cable only works from a compatible DisplayPort source to an HDMI display.
Is SKU 10204 active or passive?
The official UGREEN regional page identifies it as passive. No external power supply is listed, and source-port compatibility remains important.
What should I check if there is no picture?
Verify connector direction and port type, select the correct display input, reseat both ends, test a direct connection, lower the resolution/refresh rate, and restart or update the graphics system if needed.
Can it be routed inside a wall or ceiling?
No concealed-installation rating is claimed here. Check the physical cable markings and local installation requirements before any in-wall, ceiling or conduit route.
What is included in the package?
1 × UGREEN 10204 5m DisplayPort-to-HDMI cable. Devices, adapters and cable-management accessories shown in use images are not included.
