UGREEN 70499 Aluminum 2.5-Inch SATA Enclosure, USB-C, 6Gbps

Name: UGREEN 70499 Aluminum 2.5-Inch SATA Enclosure, USB-C, 6Gbps
Brand: Ugreen
SKU: 70499
Price: 1920.0 INR
Availability: InStock

by Ugreen

Save 66%

Rs. 5,597.00

Rs. 5,597.00 - Rs. 5,597.00

Rs. 5,597.00

Rs. 1,920.00

Rs. 1,920.00 - Rs. 1,920.00

Rs. 1,920.00

USB-C TO USB-C • 2.5-INCH SATA • 6TB

UGREEN 70499 Aluminum 2.5-Inch SATA Enclosure, USB-C, 6Gbps

Overview

UGREEN 70499 turns one 7mm or 9.5mm 2.5-inch SATA HDD or SSD into an aluminum USB-C external drive for a compatible USB-C host. The guide below separates drive protocol, physical size, host link and real-world limits so buyers can choose safely without confusing SATA, M.2 and NVMe.

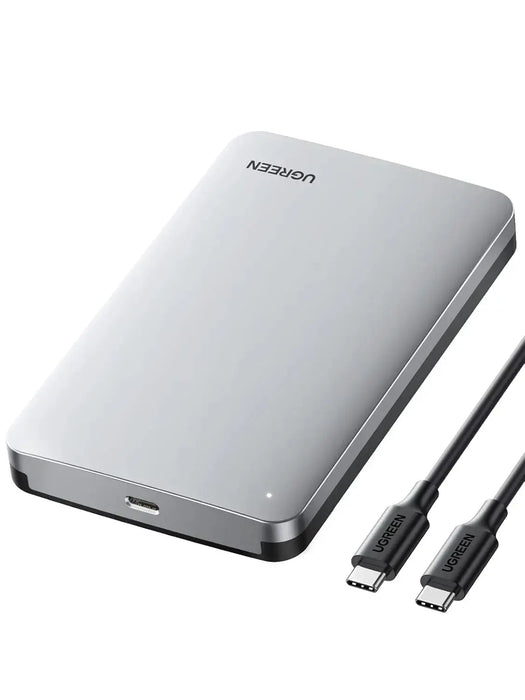

UGREEN 70499 aluminum SATA enclosure with USB-C-to-USB-C cable — product view of SKU 70499 and its supplied USB-C-to-USB-C data cable; a USB-A cable is not included.

Key features

Storage role

turns one 7mm or 9.5mm 2.5-inch SATA HDD or SSD into an aluminum USB-C external drive for a compatible USB-C host.

Supported drive

2.5-inch SATA I/II/III HDD or SSD, up to 9.5mm high.

Connection path

USB-C receptacle on enclosure; supplied 50cm USB-C-to-USB-C data cable; internal SATA III, 7+15-pin.

Thermal and controller design

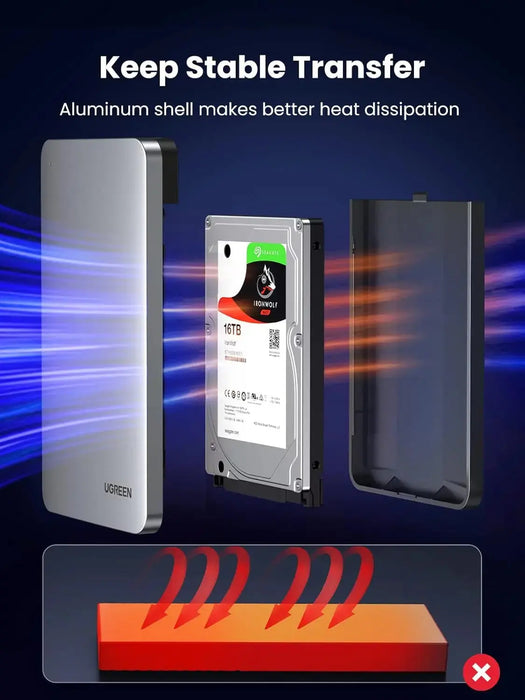

UGREEN 70499 aluminum-shell heat-spreading illustration — The aluminum shell spreads drive and bridge heat during sustained transfer; keep it uncovered and stop for abnormal heat or repeated disconnects.

Understand the complete storage path

1. The drive

2.5-inch SATA I/II/III HDD or SSD, up to 9.5mm high.

2. Internal bus

SATA III, 7+15-pin. This is the protocol used between the installed drive and bridge.

3. Enclosure bridge

4. Host connection

USB-C receptacle on enclosure; supplied 50cm USB-C-to-USB-C data cable. The host port, cable and any hub must support the required data mode.

Do not shop by shape alone: not for 3.5-inch, IDE/PATA, M.2 SATA, M.2 NVMe or mSATA drives. An M.2 notch does not by itself identify SATA versus NVMe, and a USB-C connector does not guarantee USB4 or 10Gbps.

UGREEN 70499 ASM235CM controller with UASP TRIM and USB interface artwork — ASM235CM, UASP and TRIM-related roles are shown, but visibility of these functions depends on the installed drive, host OS and utility.

Drive compatibility: form factor, key and capacity

Compatible: 2.5-inch SATA I/II/III HDD or SSD, up to 9.5mm high.

Not compatible: not for 3.5-inch, IDE/PATA, M.2 SATA, M.2 NVMe or mSATA drives.

Brand examples are not enough: the same SSD brand can sell SATA and NVMe products under similar names. Check this model’s protocol, dimensions, key and any pre-installed heatsink before purchase.

UGREEN 70499 two-point-five-inch SATA drive capacity artwork up to six terabytes

Performance reality: link rate versus file speed

The host link may be 10Gbps-class, but the SATA III drive bus is 6Gbps theoretical. Actual file speed is lower and no SATA drive becomes NVMe-speed through an enclosure.

Large sequential files usually transfer faster than folders containing thousands of small files.
HDD mechanics, SSD cache exhaustion, encryption, antivirus scanning and thermal throttling can dominate the result.
UASP, TRIM and S.M.A.R.T. require compatible drive, bridge, host controller, operating system and software; a feature label does not force every host to expose it.
Backward compatibility means operation at the slower negotiated link; it does not preserve the headline speed.

UGREEN 70499 six-gigabit-per-second external-storage artwork — 6Gbps is the theoretical SATA III path ceiling; it is not a guaranteed file-copy rate and does not turn a SATA drive into NVMe storage.

Use scenarios

Portable SATA SSD

Turn a spare 2.5-inch SATA SSD into compact external storage for documents and project files.

Old laptop drive reuse

Give a healthy 7mm or 9.5mm laptop SATA HDD/SSD a second role after checking for encryption and file-system compatibility.

Console or router storage

Use only if that host supports USB mass storage, the drive capacity and the required format; reformatting can erase existing data.

Backups and archives

Build a scheduled backup target, then keep a second independent copy. An enclosure is storage hardware, not a complete backup strategy.

Drive inspection

Read a removed drive on another computer when the drive is electrically healthy, unlocked and formatted in a file system the host understands.

UGREEN 70499 laptop storage-expansion work scenario — A USB-C laptop is the direct fit for the included cable; safely eject the volume before moving or disconnecting the enclosure.

Setup and usability guidance

Step 1: Disconnect power and USB. Confirm the bare drive is the supported SATA form factor and has no protruding rails, caddy or adapter attached.
Step 2: Open the enclosure, align the drive’s 7+15-pin SATA connector and slide it straight into the socket. Never rock or force the thin plastic tongue.
Step 3: Fit the supplied EVA spacer for a thinner 7mm drive when applicable, then close the housing without trapping the cable or pressing on the drive.
Step 4: Connect the supplied data cable directly to a suitable host port. Avoid unpowered hubs during first detection.
Step 5: If the drive is new, open the operating system’s disk utility, verify the correct disk by capacity/model, then initialise, partition and format it. Formatting erases data.
Step 6: If the drive already contains data, do not initialise or format it merely because the host prompts you. First check encryption, file system, health and the original machine.
Step 7: Before disconnecting, finish all transfers, eject or safely remove the volume in the operating system, wait for activity to stop and then unplug or switch off.

Critical distinction: “Not visible in File Explorer/Finder” does not automatically mean hardware failure. A blank, offline, encrypted, unsupported or unmounted disk can appear only in the system disk utility.

Migration, cloning and data-recovery planning

Before migration

Back up irreplaceable files separately. Record encryption/recovery keys and confirm source and target health before changing partitions.

Cloning is software-driven

This enclosure exposes one drive; it has no standalone clone button. Use trusted software and verify the copy before erasing the original.

Booting is not guaranteed

External boot depends on the computer firmware, operating system, security policy, partition scheme and licensing—not just the enclosure.

Recovery has limits

An enclosure cannot repair failed heads, damaged NAND, controller faults, corrupted encryption or severe file-system damage. Repeated retries can worsen a failing drive.

Compatible devices and systems

Listed/class: Windows, macOS, Linux and ChromeOS; USB-C laptops/tablets are the clearest fit. TV, router or console use needs a compatible USB-C storage port or a suitable data cable/adapter and supported formatting.

Computers

Most modern systems support USB mass storage, but file-system write support differs across Windows, macOS and Linux.

Phones and tablets

A matching connector is insufficient: the mobile host must support USB OTG/mass storage, the chosen file system and the enclosure’s power demand.

TVs, routers and consoles

Check the device manual for USB generation, file system, partition table, maximum capacity and whether formatting is mandatory.

Hubs and adapters

An extra hub or converter can reduce speed or power stability. Test directly on the host before diagnosing the enclosure.

UGREEN 70499 operating-system and device compatibility chart — Windows, macOS, ChromeOS and Linux are shown; USB-A-only televisions, routers and consoles need a suitable data cable or adapter that is not included.

What this product does

Turns one 7mm or 9.5mm 2.5-inch SATA HDD or SSD into an aluminum USB-C external drive for a compatible USB-C host.
Provides the path: SATA III, 7+15-pin to USB-C receptacle on enclosure; supplied 50cm USB-C-to-USB-C data cable.
Supports the drive boundary: 2.5-inch SATA I/II/III HDD or SSD, up to 9.5mm high.
Exposes the drive to a compatible host for normal file access, formatting, backup, migration or supported cloning software.

What this product does not do

Not for 3.5-inch, IDE/PATA, M.2 SATA, M.2 NVMe or mSATA drives.
It does not include an SSD/HDD or add capacity by itself.
It does not guarantee the theoretical link rate as sustained file throughput.
It does not bypass passwords, BitLocker/FileVault encryption, permissions or unsupported file systems.
It does not repair a failing drive, replace a backup, provide RAID or perform unattended offline cloning.
It does not make a host support capacities, formats or game-install rules that the host manufacturer excludes.

What to do

Verify the drive

Read the drive label/data sheet for protocol, physical size, key and thickness before opening the enclosure.

Use the supplied path

Start with USB-C receptacle on enclosure; supplied 50cm USB-C-to-USB-C data cable. Connect directly to a known-good host data port.

Protect the thermal path

Install pads as directed, keep vents clear and allow airflow during sustained transfers.

Eject and keep backups

Safely remove before unplugging and maintain at least one independent copy of important data.

What not to do

Do not force connectors

Misaligned SATA or M.2 connectors can be damaged by surprisingly little force. Recheck orientation and protocol.

Do not format blindly

If a host asks to initialise or erase an existing drive, stop until you know why and have a backup.

Do not unplug during activity

Removing USB or power during writes can corrupt files, file systems or the drive translation layer.

Do not block cooling

Do not wrap, stack or operate on soft insulating surfaces during sustained transfer.

Warnings and limitations

Data first: an enclosure can expose a drive; it cannot guarantee the integrity of the data already on it. Keep independent backups before migration, repartitioning or firmware work.

Power: bus power depends on the host. If detection resets under load, remove unpowered hubs and use the supplied cable on a stronger direct port.

Heat: warmth can be normal, especially with NVMe. Stop use for smoke, burning smell, deformation, liquid ingress, repeated drop-outs or abnormal mechanical HDD sounds.

Handling: protect bare drives from electrostatic discharge; hold an SSD by its edges, avoid touching gold contacts and never move a spinning 3.5-inch HDD roughly.

Removal: wait for all writes, eject in the OS, allow the activity indicator to settle, then disconnect. Auto-sleep is not a substitute for safe removal.

Technical specifications

Brand / SKU	UGREEN 70499
Product role	turns one 7mm or 9.5mm 2.5-inch SATA HDD or SSD into an aluminum USB-C external drive for a compatible USB-C host
Supported drive	2.5-inch SATA I/II/III HDD or SSD, up to 9.5mm high
Excluded drive types	not for 3.5-inch, IDE/PATA, M.2 SATA, M.2 NVMe or mSATA drives
Internal interface	SATA III, 7+15-pin
Host connection	USB-C receptacle on enclosure; supplied 50cm USB-C-to-USB-C data cable
Nominal link	USB 3.1 Gen 2-capable bridge; SATA data path up to 6Gbps
Performance note	The host link may be 10Gbps-class, but the SATA III drive bus is 6Gbps theoretical. Actual file speed is lower and no SATA drive becomes NVMe-speed through an enclosure.
Housing / thermal design	Silver aluminum-alloy shell
Storage features	UASP, TRIM, LED status and aluminum heat spreading; S.M.A.R.T. availability depends on host software and bridge pass-through
Cable	50cm USB-C-to-USB-C cable. USB-A host cable is specifically not included
System/device class	Windows, macOS, Linux and ChromeOS; USB-C laptops/tablets are the clearest fit. TV, router or console use needs a compatible USB-C storage port or a suitable data cable/adapter and supported formatting

Troubleshooting guide

No device at all

Disconnect, power down, reseat the drive and retest with the supplied cable directly on another known-good host data port. Verify the drive protocol and orientation.

Enclosure detected, no volume

Open Disk Management/Disk Utility. A new disk may need initialisation; an old disk may be offline, encrypted or use an unsupported file system. Do not erase valuable data.

Slower than expected

Confirm negotiated USB mode, remove slow hubs, use the supplied cable, test a large file and check SSD/HDD health, cache and temperature. Link rate is not file speed.

Disconnects under load

Check cable seating, direct-port power, thermal-pad placement and airflow. For SKU 50422, use the supplied 12V/2A adapter. Stop if the drive reports health errors.

Read-only or permission errors

Check write protection, ownership, encryption and file-system support. macOS and Windows do not natively write every file system used by the other.

Console/TV asks to format

That host may require its own partition and file system. Formatting erases the drive; move needed data elsewhere first and review the host manual.

Package contents

1 × UGREEN 70499 enclosure, 1 × 50cm USB-C-to-USB-C data cable, 1 × user guide; USB-A cable and SSD/HDD are not included

No host computer, phone, tablet, console, TV, router, SSD/HDD, cloning software or data-recovery service is included unless explicitly named above.

Product-specific FAQ

What is UGREEN 70499 made to do?

Turns one 7mm or 9.5mm 2.5-inch SATA HDD or SSD into an aluminum USB-C external drive for a compatible USB-C host. It is an enclosure/bridge, not a drive; storage media is not included.

Which drives fit?

2.5-inch SATA I/II/III HDD or SSD, up to 9.5mm high. Not for 3.5-inch, IDE/PATA, M.2 SATA, M.2 NVMe or mSATA drives.

Does it support both SATA and NVMe?

No NVMe or M.2 drive fits this enclosure. It is for the stated 2.5/3.5-inch SATA drive format only.

What is the real maximum speed?

The host link may be 10Gbps-class, but the SATA III drive bus is 6Gbps theoretical. Actual file speed is lower and no SATA drive becomes NVMe-speed through an enclosure. Link-rate labels are theoretical and should not be read as a guaranteed benchmark.

What capacity is supported?

Will a new drive appear immediately?

The enclosure can be detected while a blank drive still has no volume. Use the correct disk utility to initialise, partition and format a new drive. Double-check the disk identity because formatting destroys existing data.

Can it clone or migrate my system?

It provides external access to the installed drive but does not perform standalone cloning. Use reliable cloning/backup software, confirm the target has sufficient usable capacity, keep the original untouched until verification and handle encrypted/boot volumes according to the OS vendor’s guidance.

Can I use it with a console, TV or router?

Possibly: Windows, macOS, Linux and ChromeOS; USB-C laptops/tablets are the clearest fit. TV, router or console use needs a compatible USB-C storage port or a suitable data cable/adapter and supported formatting. The host may require a specific file system, partition scheme, capacity, power budget or dedicated “extended storage” format. Those rules can erase the drive and are controlled by the host, not by the enclosure.

Why is the drive not detected?

Power down and reseat the drive, confirm its protocol/form factor, try the supplied cable directly on another suitable host port, and inspect Disk Management/Disk Utility rather than only the file browser. Do not format an unknown drive with valuable data.

Is warmth normal, and how should I disconnect?

A drive and enclosure can become warm in long transfers. Keep ventilation clear, do not cover the housing, and stop for abnormal smell/noise or repeated disconnects. Always eject the volume and wait for activity to stop before unplugging.

What is included?

1 × UGREEN 70499 enclosure, 1 × 50cm USB-C-to-USB-C data cable, 1 × user guide; USB-A cable and SSD/HDD are not included.

model check before ordering

Match SKU 70499, the supported drive protocol/form factor, capacity guidance, supplied cable and the host’s data capability. Similar-looking UGREEN enclosures can differ in SATA versus NVMe, USB-A versus USB-C, power requirements and speed ceilings.

SKU 704992.5-inch SATA I/II/III HDD or SSD, up to 9.5mm highUSB 3.1 Gen 2-capable bridge; SATA data path up to 6Gbps
