UGREEN 10553 Micro HDMI to HDMI 2.0 Adapter, 4K 60Hz, 25cm
MICRO HDMI TYPE-D • HDMI FEMALE • 25cm
UGREEN 10553 Micro HDMI to HDMI 2.0 Adapter, 4K 60Hz, 25cm
A short braided adapter that turns a real Micro HDMI port into a full-size HDMI socket for a suitable HDMI cable, display or capture path.
01 · Product introduction
Overview
UGREEN 10553 Micro HDMI to HDMI 2.0 Adapter, 4K 60Hz, 25cm is documented for a specific connector pair, direction and ceiling. It should be selected by SKU and port geometry rather than by the broad words HDMI, DVI, DisplayPort or VGA.
Intended from a Micro HDMI source/output toward a full-size HDMI display or capture input. Endpoint roles still control any reverse arrangement. Digital HDMI audio and video. ARC, Ethernet Channel, 3D and multichannel audio work only when every item in the chain supports the feature. The source device, destination device, operating-system mode and any intermediate equipment must all agree before a picture can appear.

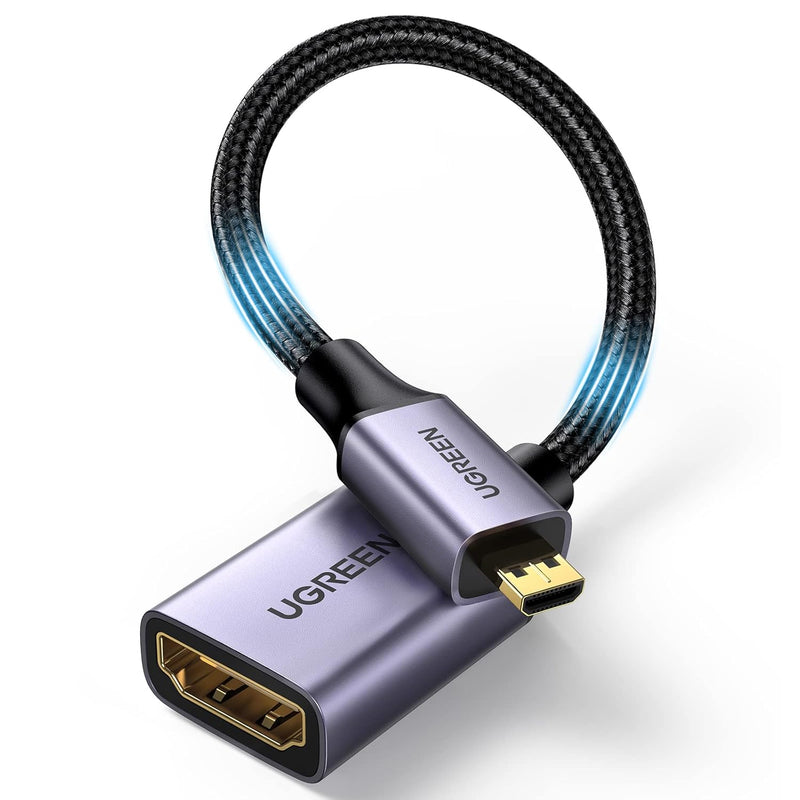

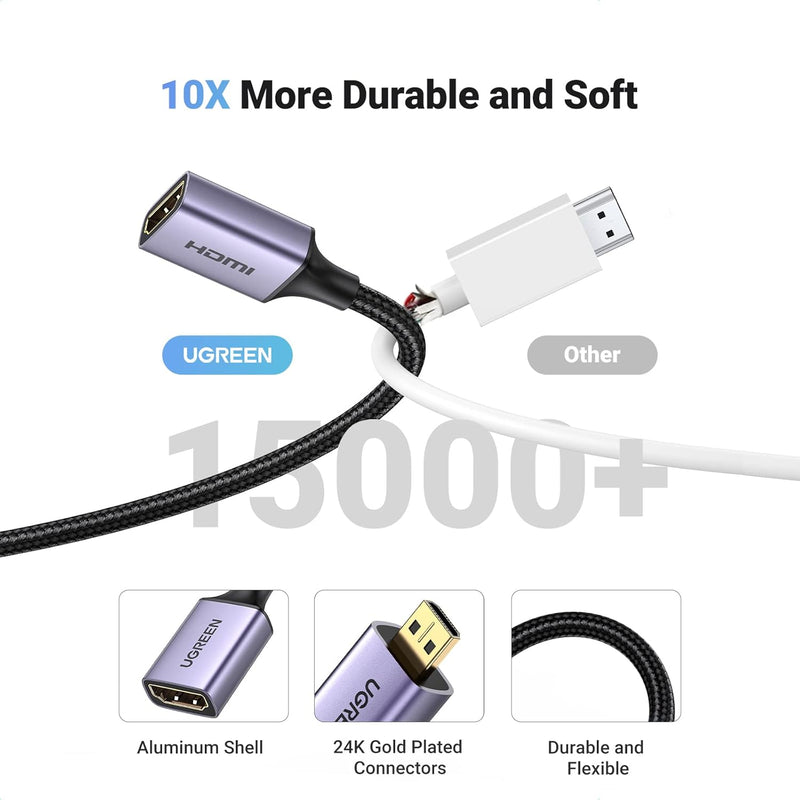

25cm braided jacket, aluminium housing, gold-plated contact surfaces, copper conductors and layered shielding. These construction details support everyday reliability but do not create a mode, audio stream or conversion feature absent from the endpoints.
02 · At a glance
Key features
4K 60Hz listed
UGREEN lists HDMI 2.0-class video up to 4K at 60Hz, plus backward-compatible 1440p and 1080p modes.
HDMI 2.0-class
Identify which device is the source/output and which is the display/input. A cable or adapter cannot make two outputs talk to each other, and many display connectors are input-only.
25cm braided
Intended from a Micro HDMI source/output toward a full-size HDMI display or capture input. Endpoint roles still control any reverse arrangement. Direction is a device-role rule, not merely an arrow printed on a cable.
Audio and video
No product driver is installed for a passive cable. An active converter can still rely on the host graphics driver and supported output modes even when no separate app is required.
03 · Physical fit
Connectors, direction and interface clarity
Connector / side A
Micro HDMI Type-D male for a camera, Raspberry Pi or other device with a genuine Micro HDMI port.
Connector / side B
Full-size HDMI Type-A female for a separately purchased HDMI cable or compatible HDMI male plug.
Signal direction
Intended from a Micro HDMI source/output toward a full-size HDMI display or capture input. Endpoint roles still control any reverse arrangement.
Fit before force
Micro HDMI Type-D is not Mini HDMI Type-C and not Micro USB. Compare the port before applying any pressure.
04 · Capability
Signal, data or power performance
UGREEN lists HDMI 2.0-class video up to 4K at 60Hz, plus backward-compatible 1440p and 1080p modes.
Digital HDMI audio and video. ARC, Ethernet Channel, 3D and multichannel audio work only when every item in the chain supports the feature. A listed maximum is the ceiling of a correct complete chain, not a promise that every device exposes that mode.
The adapter changes connector size only. It does not add an output to a device, convert USB, record video or guarantee clean camera output.
Use the shortest direct route that reaches without tension, leave a gentle service loop and remove unnecessary converters while testing.
Real digital links can fail as a blank screen, sparkles, dropouts or colour errors; analogue VGA can additionally show softness or ghosting. Start at a conservative known-supported mode before increasing resolution or refresh rate.
05 · Complete path
What the entire connection must support
Identify which device is the source/output and which is the display/input. A cable or adapter cannot make two outputs talk to each other, and many display connectors are input-only.
Match both physical connectors exactly. Micro HDMI Type-D is not Mini HDMI Type-C and not Micro USB. Compare the port before applying any pressure.
For protected commercial video, HDCP support must exist at the source, display and every active device. A passive cable or connector adapter cannot add, remove or repair copy protection.
Test one direct path before adding a dock, KVM, wall plate, AV receiver, capture device, coupler or extender. Each added item can change EDID, timing, bandwidth or direction behaviour.
If a separate cable is required at a female socket, that cable becomes part of the signal budget. Its connector type, length and rating matter as much as this product.
06 · Behaviour
Standards, negotiation and operating roles
Intended from a Micro HDMI source/output toward a full-size HDMI display or capture input. Endpoint roles still control any reverse arrangement. Direction is a device-role rule, not merely an arrow printed on a cable.
The adapter changes connector size only. It does not add an output to a device, convert USB, record video or guarantee clean camera output.
Mirror and extended-desktop layouts are created by the source computer and graphics system. One physical connection supplies one display path and does not create additional independent graphics outputs.
Resolution, refresh rate, colour depth, chroma, HDR, audio and protected-content behaviour are negotiated across the chain. A mode name on one device does not override the other endpoint.
The cable or adapter has no user firmware. The graphics driver, display EDID and operating-system settings select the final timing and can require updates even when the accessory itself is plug-and-play.
Ceiling, not a promise
Connector and standard labels describe capability. The complete source, destination, route, settings and negotiated mode determine the result.

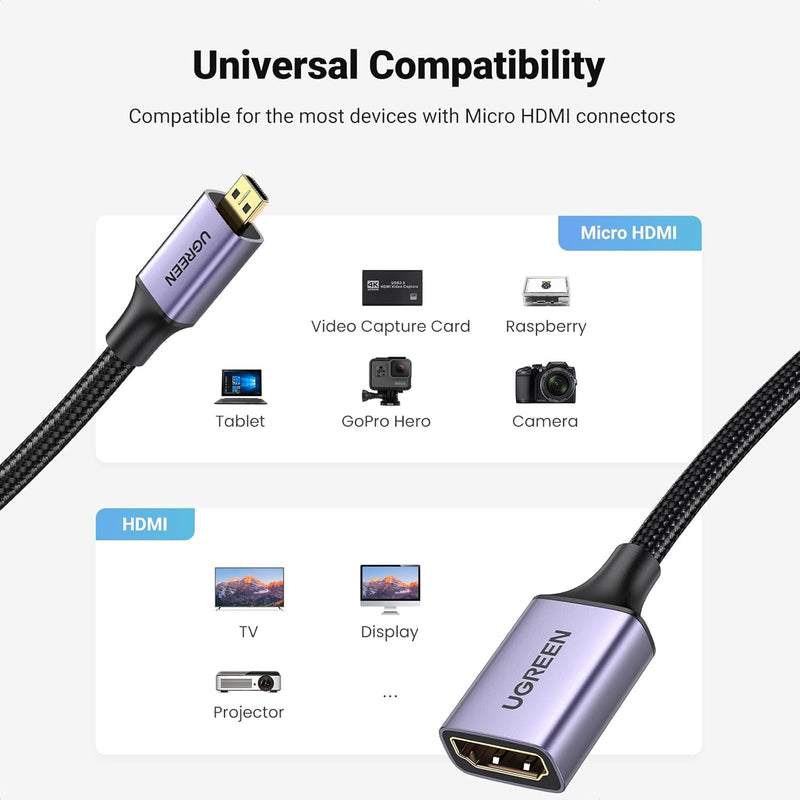

07 · Device fit
Compatible devices and systems
Cameras and action cameras
A true Micro HDMI output and a camera mode supported by the display or capture device.
Raspberry Pi 4
Micro HDMI output to an HDMI monitor using a sound full-size HDMI cable.
Capture cards
Full-size HDMI input, subject to camera clean-output, format and HDCP restrictions.
Displays and projectors
A compatible HDMI input and resolution/refresh support matching the source.
Not USB
Phones or tablets with Micro USB or USB-C need a different video-output solution.
08 · Practical value
Use scenarios

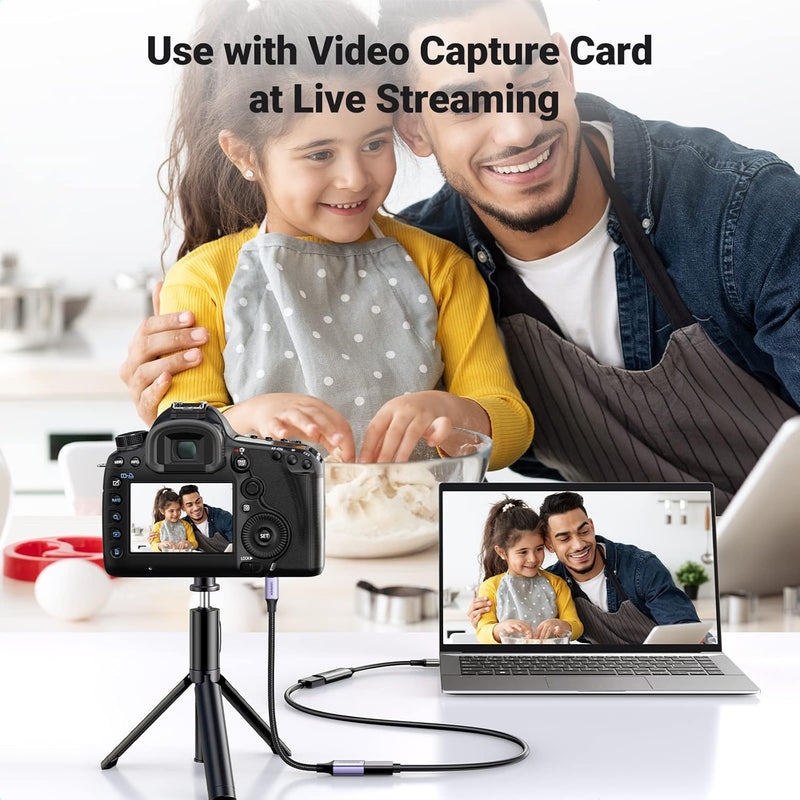

Live streaming
Connect a camera Micro HDMI output to a compatible HDMI capture card.

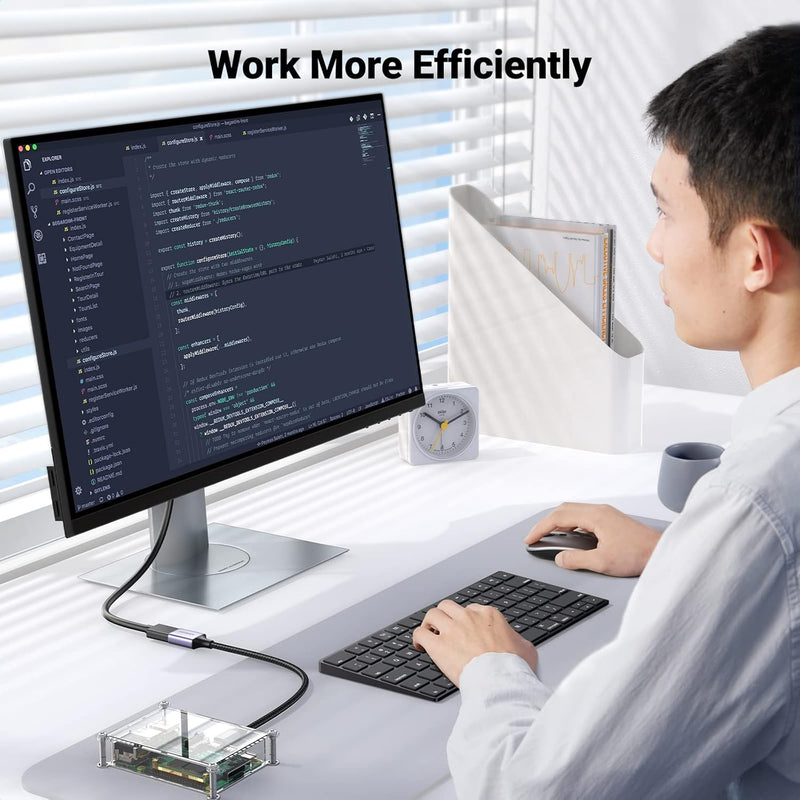

Developer desk
Join a Raspberry Pi Micro HDMI port to a standard monitor cable.

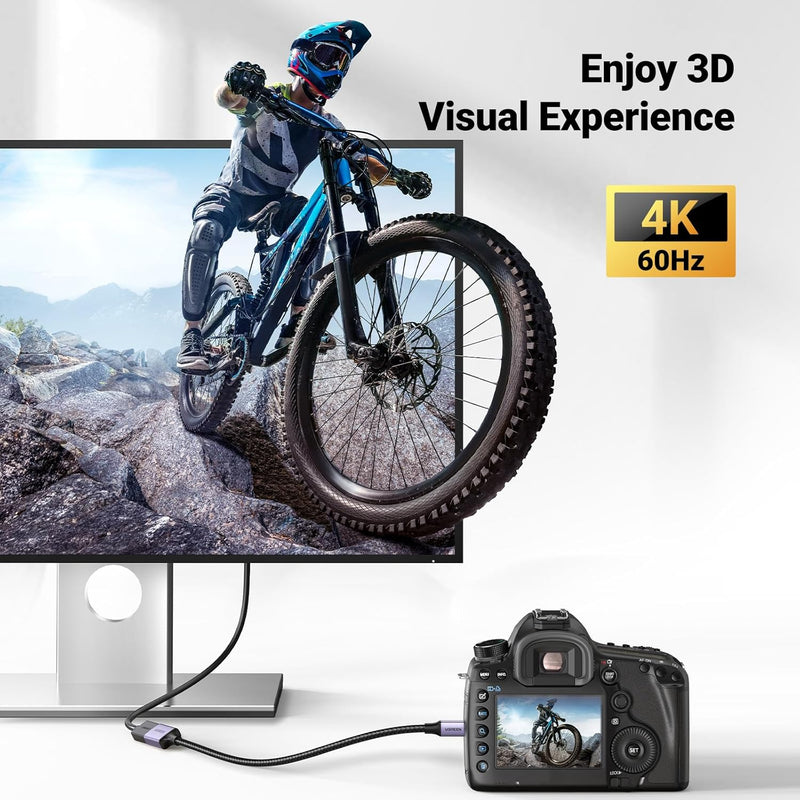

Camera review
Show photos or video on a larger HDMI display when the camera supports external output.
Travel kit
Keep the short adapter with a known-good HDMI cable for flexible display lengths.
09 · Usability
Setup and usability guidance
- Power down the display or stop active output before working around fragile, tightly packed or screw-retained connectors.
- Inspect the source and display ports under good light. Micro HDMI Type-D is not Mini HDMI Type-C and not Micro USB. Compare the port before applying any pressure.
- Align each plug with the socket and insert it straight using normal hand pressure. Stop immediately if the connector tilts, binds or requires force.
- Secure DVI or VGA screws finger-tight only, or fully seat the DisplayPort latch where present. Never use retention hardware to pull a plug into alignment.
- Select the correct display input, then begin with 1920×1080 at 60Hz or another documented safe mode before trying the product's maximum listed timing.
- Configure mirror or extended desktop on the source. Route audio separately whenever this product's signal description says video only.
- Support adapters and heavy cables so they do not lever a small HDMI, Micro HDMI or Mini DisplayPort socket; preserve a relaxed bend at every strain relief.
- To disconnect, release latches and screws first, hold the connector shell and pull straight. Do not twist, rock or pull on the cable jacket.
10 · Host behaviour
Operating-system, driver and software guidance
No product driver is installed for a passive cable. An active converter can still rely on the host graphics driver and supported output modes even when no separate app is required.
If the display is detected but blank, choose a lower resolution/refresh rate in the source settings and confirm the destination input. Detection alone does not prove the selected timing is usable.
If mirror works but extended desktop does not, inspect the operating-system display arrangement and GPU limits. The cable carries the configured signal; it does not decide the desktop layout.
If the picture works but there is no sound, compare the signal statement in this guide. DVI and VGA paths here are video-only and need a separate audio output selected in software.
For cameras and capture devices, configure clean output, frame rate, colour mode and HDCP at the source; the cable cannot remove menus, overlays or protected-content restrictions.
Software boundary
The accessory has no user application. Connected hosts and devices can still require model drivers, firmware, permissions or settings.
11 · scope
What this product does
- Provides the connector path described for UGREEN SKU 10553.
- Operates within the listed ceiling: UGREEN lists HDMI 2.0-class video up to 4K at 60Hz, plus backward-compatible 1440p and 1080p modes.
- Uses the documented direction and signal role: Intended from a Micro HDMI source/output toward a full-size HDMI display or capture input. Endpoint roles still control any reverse arrangement.
- Provides the documented signal type: Digital HDMI audio and video. ARC, Ethernet Channel, 3D and multichannel audio work only when every item in the chain supports the feature.
- Requires no user application or firmware installation on the cable or passive adapter itself.
- Supports practical mirror, extended-desktop, presentation or entertainment use only when the source and display provide those functions.
12 · Clear boundaries
What this product does not do
- The adapter changes connector size only. It does not add an output to a device, convert USB, record video or guarantee clean camera output.
- It does not create a graphics output on a port that lacks video capability.
- It does not make an input become an output, join two sources, drive two independent displays from one connection or act as a capture device.
- It does not guarantee the maximum mode, HDR, HDCP, audio or refresh rate when any endpoint or intermediate device lacks support.
- It does not repair a damaged port, marginal cable, incorrect display input, disabled camera output or unsupported operating-system setting.
- It is not interchangeable with lookalike HDMI, Mini HDMI, Micro HDMI, DisplayPort, Mini DisplayPort, USB-C, DVI-I, DVI-D or VGA products.
13 · Best practice
What to do
Recommended
Match SKU 10553, connector gender, direction, length and maximum mode before ordering.
Recommended
Verify a real source/output and display/input, then test the connection directly before permanent routing.
Recommended
Use finger-tight retention, gentle bends, strain relief and enough clearance around adjacent ports.
Recommended
Start at a conservative timing, update the graphics driver or device firmware where appropriate and increase the mode deliberately.
Recommended
Route separate audio when required and label installed cables so future users do not reverse or misidentify them.
14 · Common mistakes
What not to do
Avoid
Do not force a similar-looking connector, trim plastic, bend pins or use screws to draw a crooked plug into place.
Avoid
Do not advertise a one-way converter as bidirectional or a video-only DVI/VGA path as carrying HDMI audio.
Avoid
Do not promise a maximum resolution or refresh rate without checking both endpoints and every intermediate device.
Avoid
Do not suspend a heavy cable or rigid adapter from a small device port or trap the cable under furniture and sharp edges.
Avoid
Do not hot-swap repeatedly during unstable operation; power down, simplify the path and diagnose one variable at a time.
15 · Read before use
Warnings and limitations
Warning / limitation 1
Do not suspend a heavy HDMI cable from the small Micro HDMI port. Support the cable and use the short pigtail as strain relief.
Warning / limitation 2

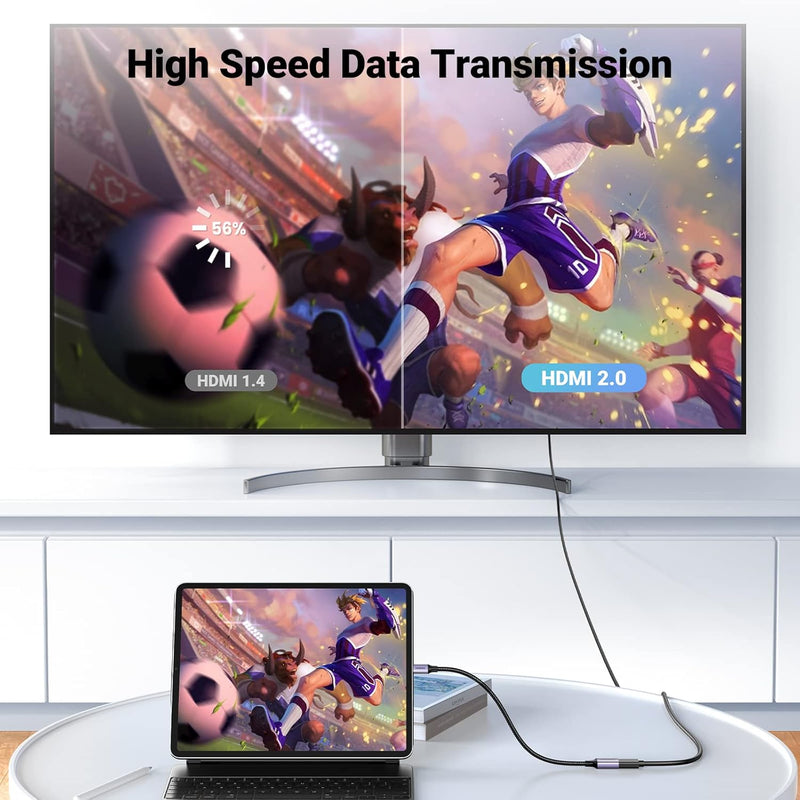

The gallery phrase high-speed data refers to HDMI signalling; this is not a USB storage, file-sync or networking adapter.
Warning / limitation 3
Keep connectors dry and free of dust. Do not use metal tools or liquid cleaners on an energised port.
Warning / limitation 4
Stop using the product if a shell is loose, pins are bent, the jacket is cut, the strain relief separates, or movement causes intermittent operation.
Warning / limitation 5
Long passive routes, wall plates, KVMs, couplers and adapters reduce signal margin. A setup that works at 1080p may fail at a higher timing.
Warning / limitation 6
Device-specific HDCP, EDID, camera-output, GPU and display limits override broad compatibility examples.
16 · Diagnostics
Troubleshooting by symptom
No display detected
Confirm source/output and display/input roles, select the correct input, reseat both ends, remove intermediate devices and restart the source with the display connected.
Display detected but blank
Select 1080p60 or another known-supported mode, disable unsupported HDR/high-refresh settings and verify that the direction matches this product.
Picture flickers or shows sparkles
Shorten the path, remove couplers, route away from power cables, inspect connector seating and test a lower bandwidth mode.
Image is soft or ghosted
For VGA, shorten and replace the analogue cable; for digital links, verify native resolution, scaling and colour settings at both endpoints.
Video works but sound is absent
Check the signal boundary: Digital HDMI audio and video. ARC, Ethernet Channel, 3D and multichannel audio work only when every item in the chain supports the feature. Choose a separate audio route whenever DVI or VGA is in the path.
Only mirror mode appears
Open the operating-system display panel, choose Extend and verify the GPU supports another desktop. The accessory cannot add an independent graphics pipeline.
Works directly but not through a dock or switch
The intermediate device is changing direction, EDID, HDCP or bandwidth. Confirm its specifications or keep the tested direct path.
17 · data
Technical specifications
| Specification | Specification |
|---|---|
| Product | UGREEN 10553 Micro HDMI to HDMI 2.0 Adapter, 4K 60Hz, 25cm |
| SKU | 10553 |
| Product family | 10553 |
| Model | 10553 |
| Length | 0.25m / 25cm |
| Connector A | Micro HDMI Type-D male |
| Connector B | HDMI Type-A female |
| Version listing | HDMI 2.0-class |
| Maximum listed mode | 4K at 60Hz |
| Signal | Digital HDMI audio and video |
| Jacket | Braided |
| Separate HDMI cable | Required for most display connections |
| Configuration | Plug-and-play at the accessory; endpoint settings still apply |
| Performance rule | Complete-chain dependent |
| Package verification | Compare sealed SKU before installation |
Package contents
- 1 × UGREEN 10553 Micro HDMI to HDMI 2.0 Adapter, 4K 60Hz, 25cm. Displays, computers, cameras, capture cards, VGA/HDMI/DVI extension cables, audio cables and converters are not included unless explicitly named in this product title.
Confirm the sealed SKU and included-item list before installation. Similar products can use different connectors, directions or limits.
18 · Native collapsible answers
Product-specific FAQ
Which direction does this model work?
Intended from a Micro HDMI source/output toward a full-size HDMI display or capture input. Endpoint roles still control any reverse arrangement.
What is the highest supported display mode?
UGREEN lists HDMI 2.0-class video up to 4K at 60Hz, plus backward-compatible 1440p and 1080p modes. Treat it as a conditional complete-chain ceiling rather than a guaranteed result for every device.
Does it carry audio?
Digital HDMI audio and video. ARC, Ethernet Channel, 3D and multichannel audio work only when every item in the chain supports the feature. Audio still depends on the source, destination and selected mode.
How do I confirm the ports before buying?
Micro HDMI Type-D is not Mini HDMI Type-C and not Micro USB. Compare the port before applying any pressure.
Does it need a driver or app?
The accessory has no user application. Keep the source graphics driver and device firmware current, especially for active conversion, EDID and high-bandwidth modes.
Can I mirror or extend my desktop?
Yes when the source GPU and operating system support that layout. The product supplies one connection; it does not create extra independent graphics outputs.
Why is the screen detected but blank?
The selected timing, direction, HDCP state or intermediate device may be unsupported. Start at a conservative mode and test one direct source-to-display path.
Can I add another adapter or coupler?
Only when its connector, direction and ceiling are explicitly compatible. Every extra item can reduce signal margin or change EDID/HDCP behaviour.
Can this be used as a capture device or splitter?
No. It carries or converts one display path as documented; it neither records video nor produces multiple independent outputs.
How should I disconnect it safely?
Release any latch or screws, grip the connector shell and pull straight. Never twist the plug or pull the cable jacket.
What is included in the package?
One UGREEN 10553 Micro HDMI to HDMI 2.0 Adapter, 4K 60Hz, 25cm. Check the package section for separately required display, source, audio or extension cables.
