CABLETIME Triple Display USB-C Hub MST for MacBook Pro
Triple Display USB-C Hub MST for MacBook Pro

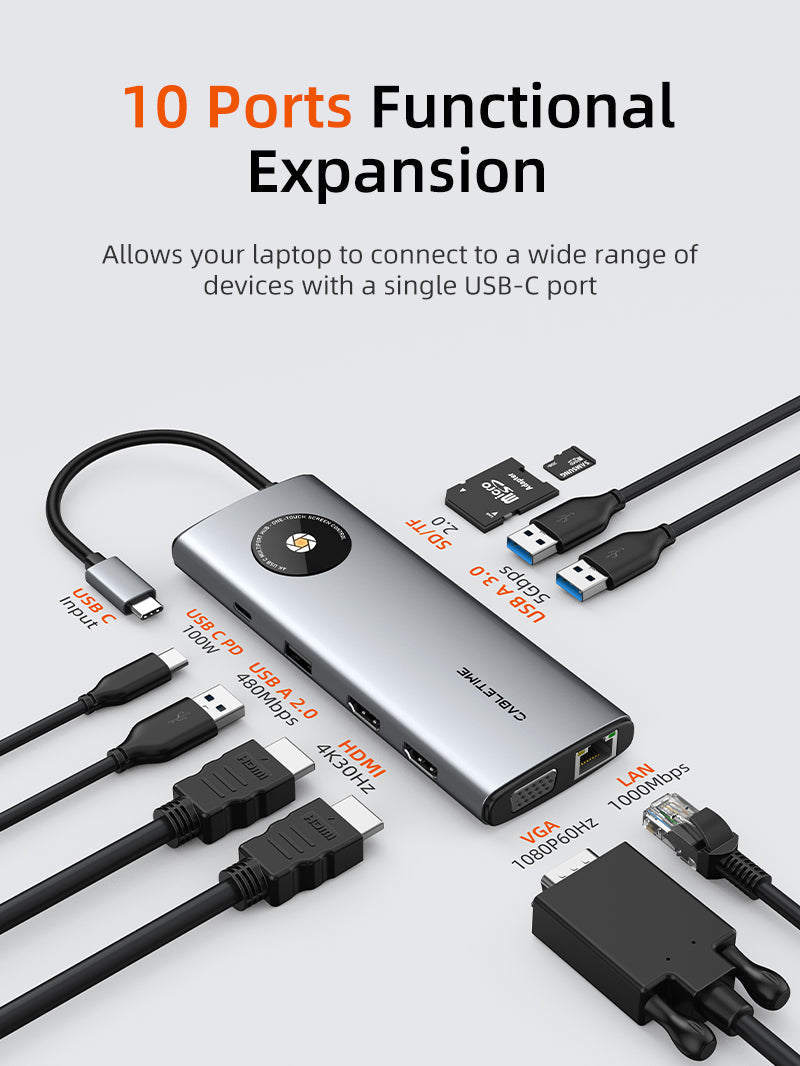

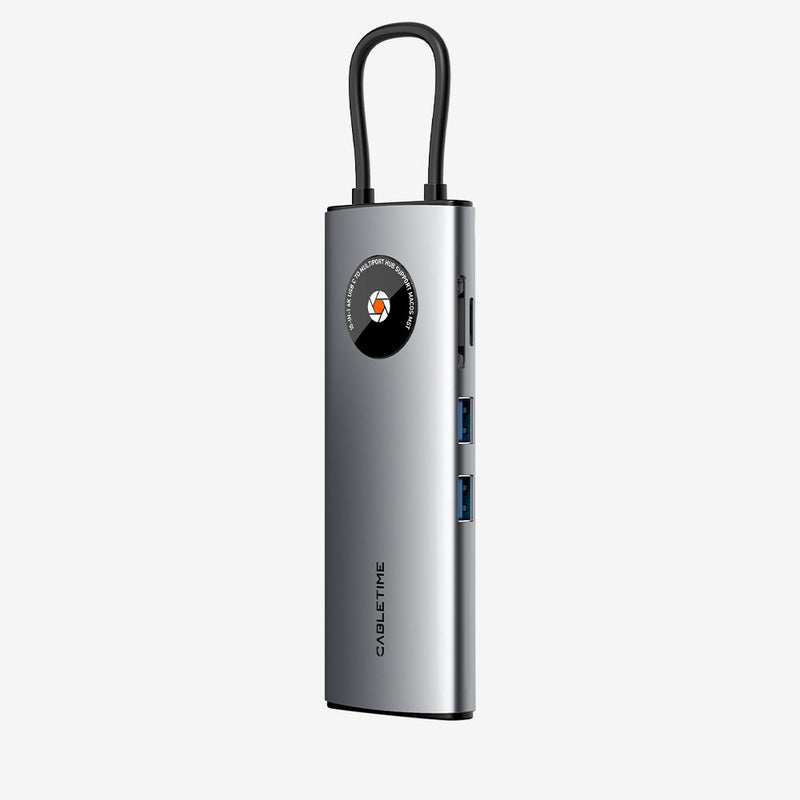

Build a multi-screen workstation from one USB-C connection. The CABLETIME CB94G combines two HDMI outputs, VGA, USB data, card reading, Gigabit Ethernet and up to 100W USB-C Power Delivery in one aluminium hub.
Key features
- Two HDMI outputs up to 4K@30Hz.
- One VGA output up to 1080p@60Hz.

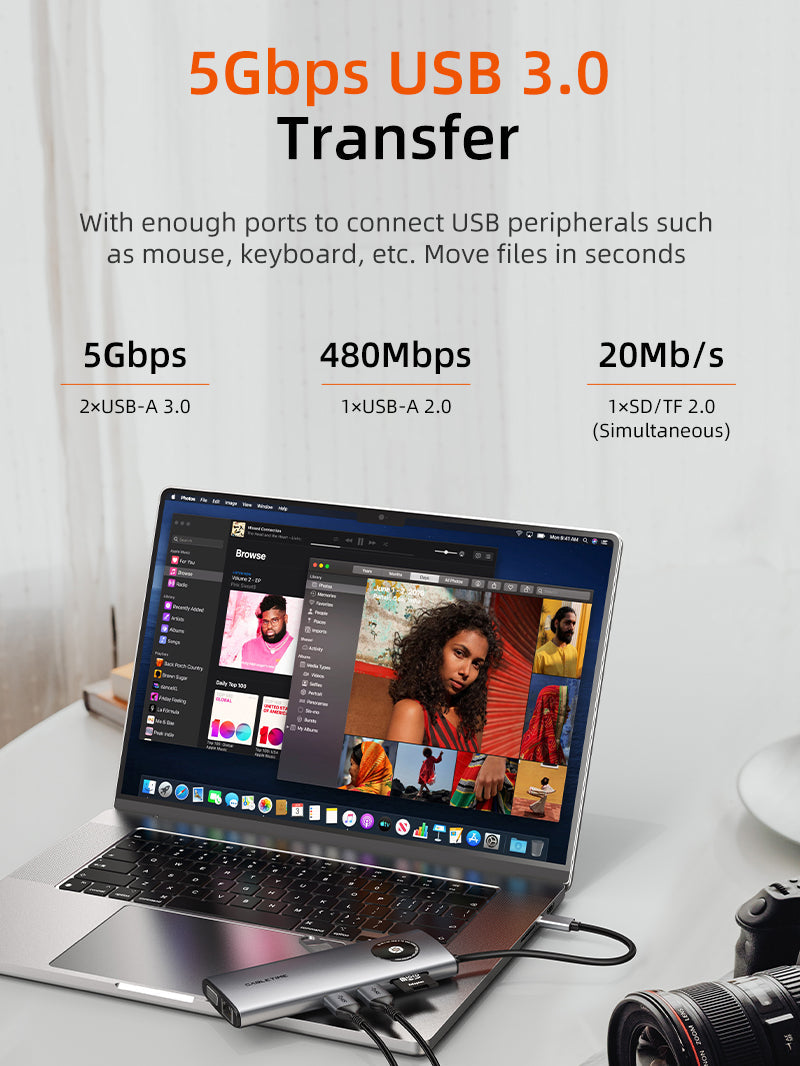

- Two USB-A 3.0 ports up to 5Gbps and one USB-A 2.0 port up to 480Mbps.
- SD/TF 3.0 card reader.

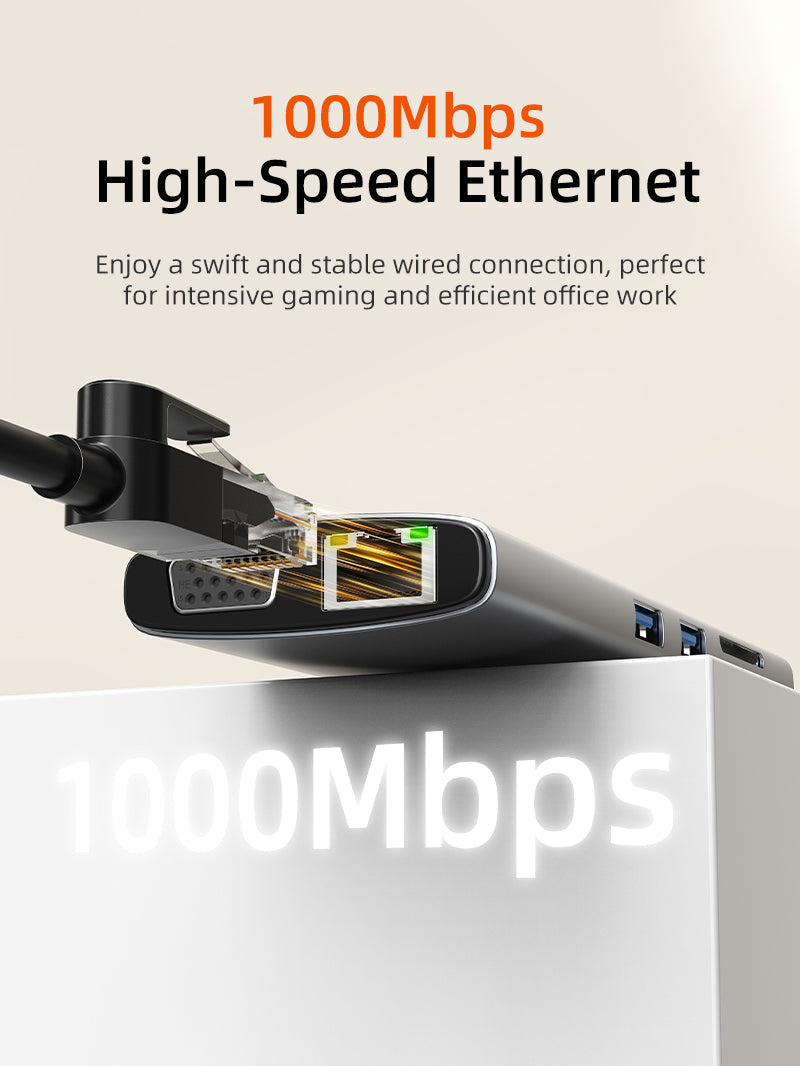

- Gigabit Ethernet up to 1000Mbps.

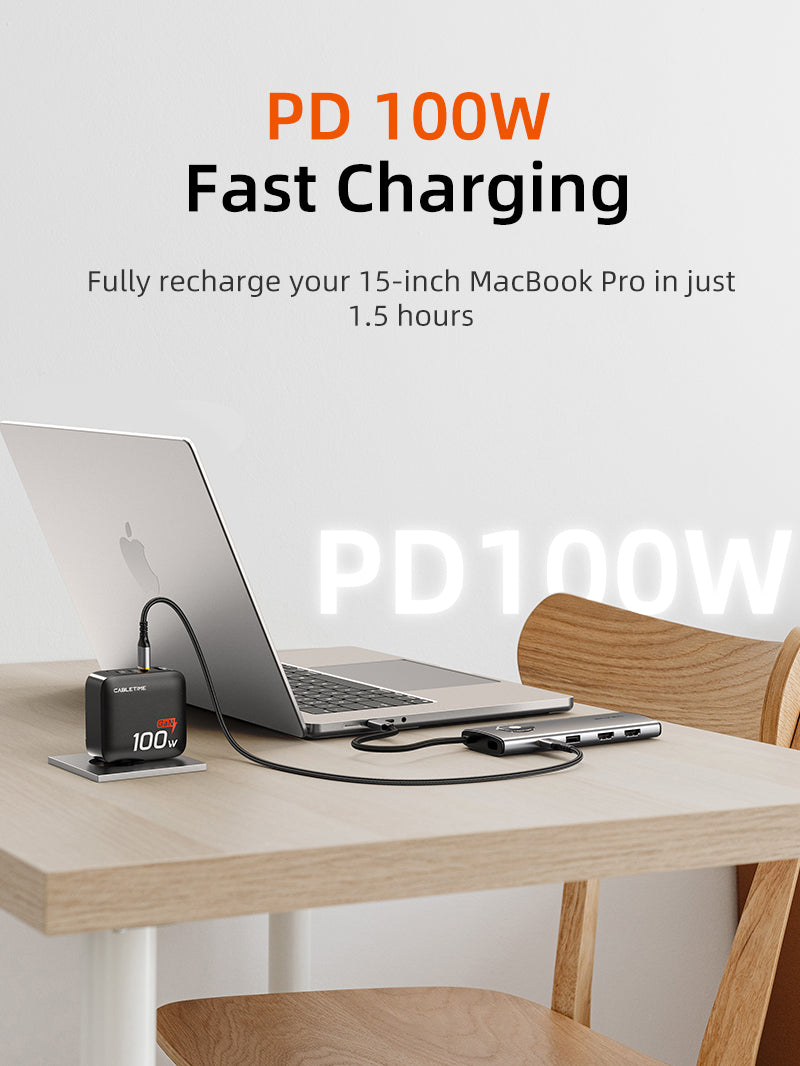

- USB-C Power Delivery input up to 100W.
Driver and compatibility

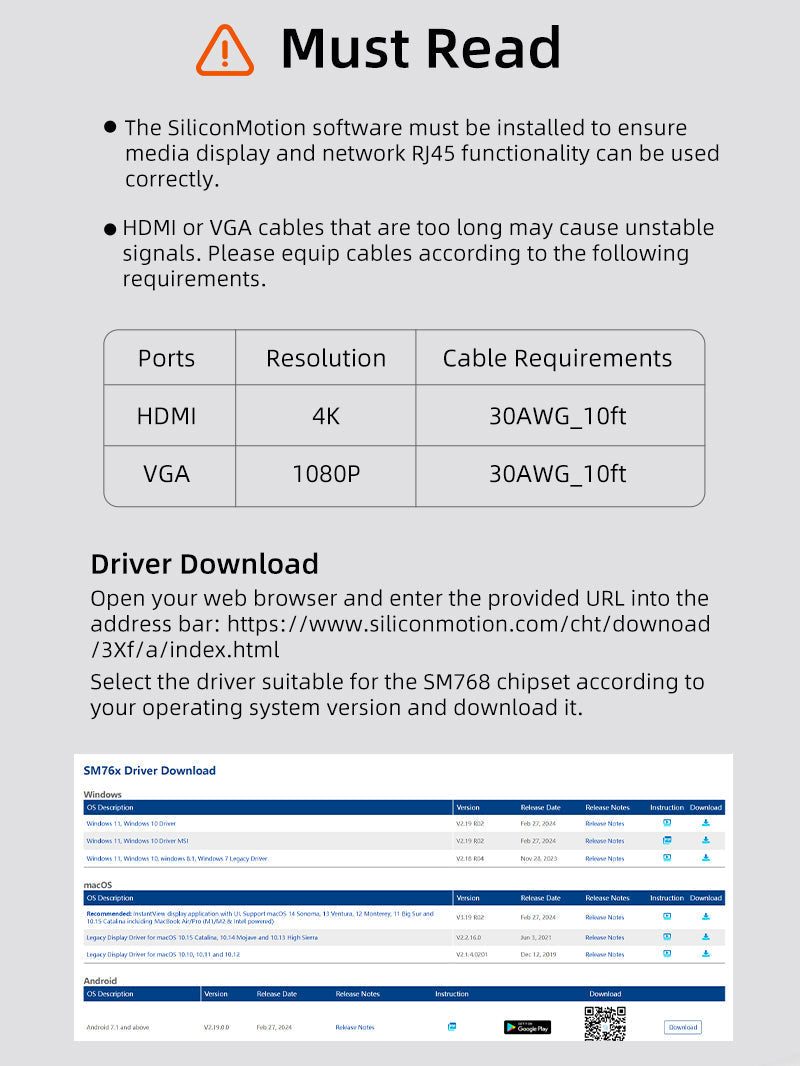

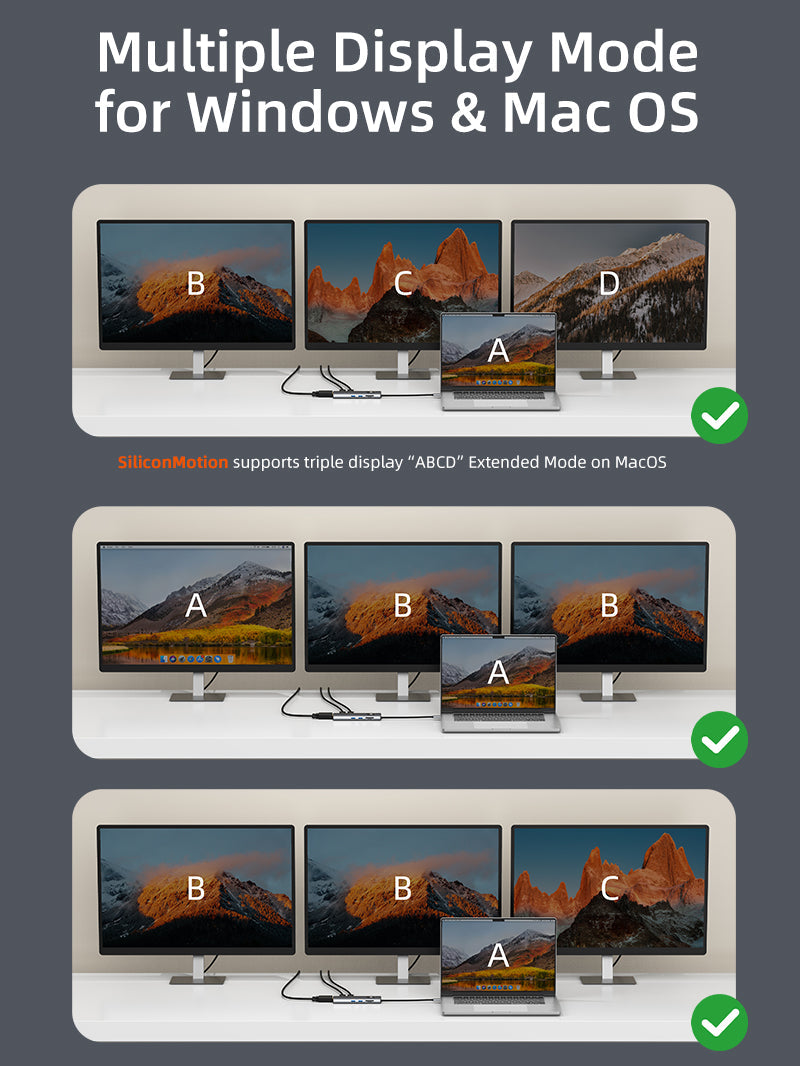

SiliconMotion software is required for the display and RJ45 functions. Install the current compatible driver before relying on the hub for multiple displays or wired networking. Actual display arrangement, resolution and charging depend on the laptop, operating system, USB-C capability, connected displays, cables, charger and driver support.
Port specification
| Host input | USB-C |

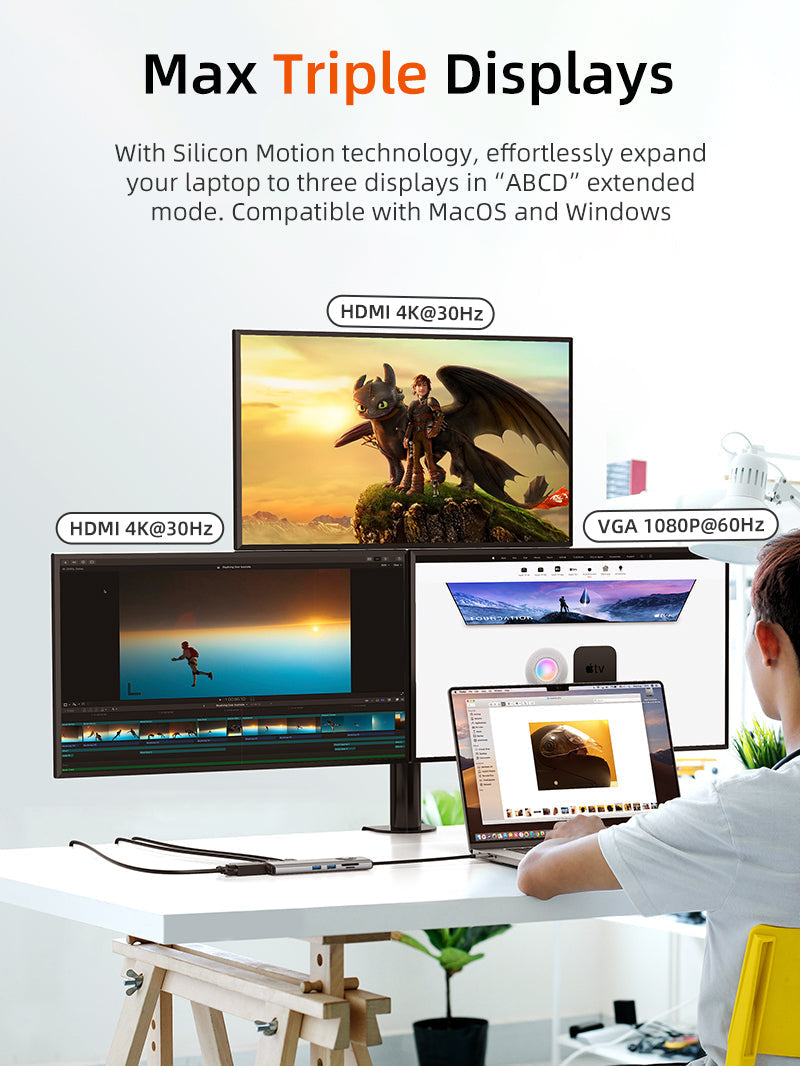

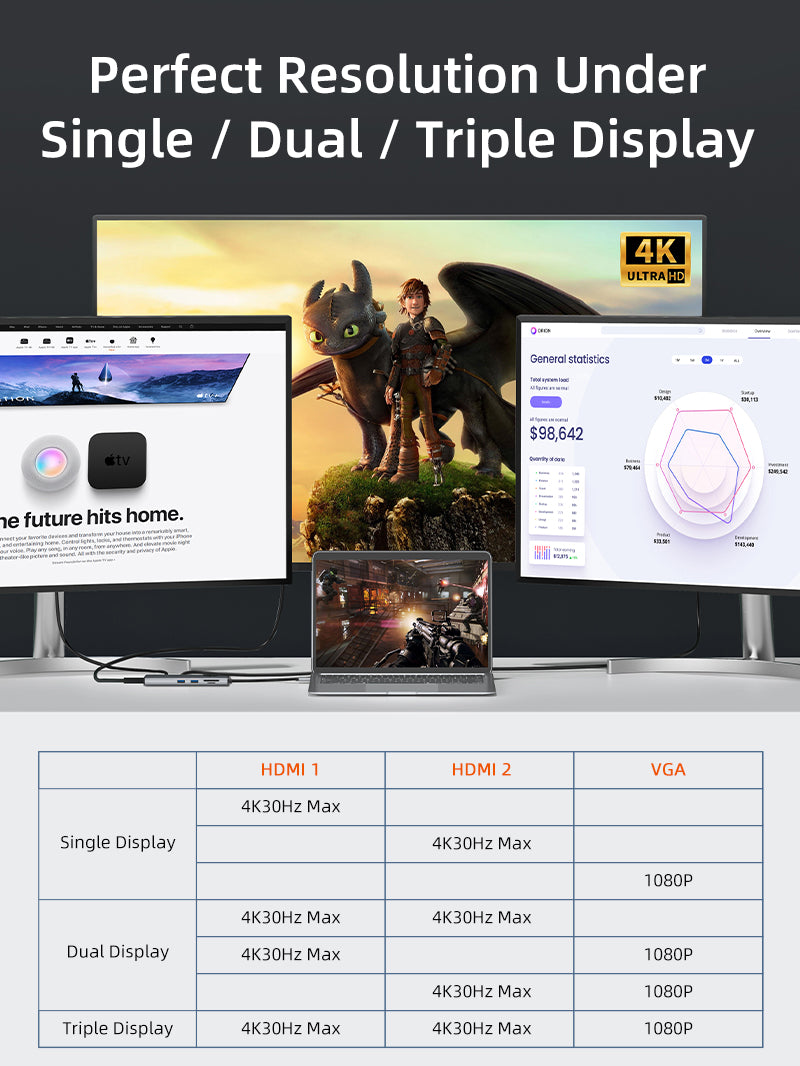

| Display outputs | 2 × HDMI 4K@30Hz; 1 × VGA 1080p@60Hz |
| USB data | 2 × USB-A 3.0 5Gbps; 1 × USB-A 2.0 480Mbps |
| Card reader | SD / TF 3.0 |
| Network | Gigabit Ethernet, up to 1000Mbps |
| Charging | USB-C PD input, up to 100W |
| Model / SKU | CB94G / CT-HUBL5-AG |
FAQ
Is the driver optional? No. Install SiliconMotion software for the display and RJ45 functions.
Can it charge the laptop? Yes, with a compatible USB-C PD charger; the computer receives less than the charger's rated input after hub operation.
Will every USB-C laptop support it? No. Compatibility depends on the host device and operating system.
Connect in a clear sequence.
Check host compatibility, connect any required power supply, attach the host cable and then add peripherals. Configure display, network and audio settings where those functions are provided.
Will every USB-C port support all functions?
No. Port shape alone does not establish video output, charging or data capabilities. Match the host requirements and supported operating-system features listed for this product.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
