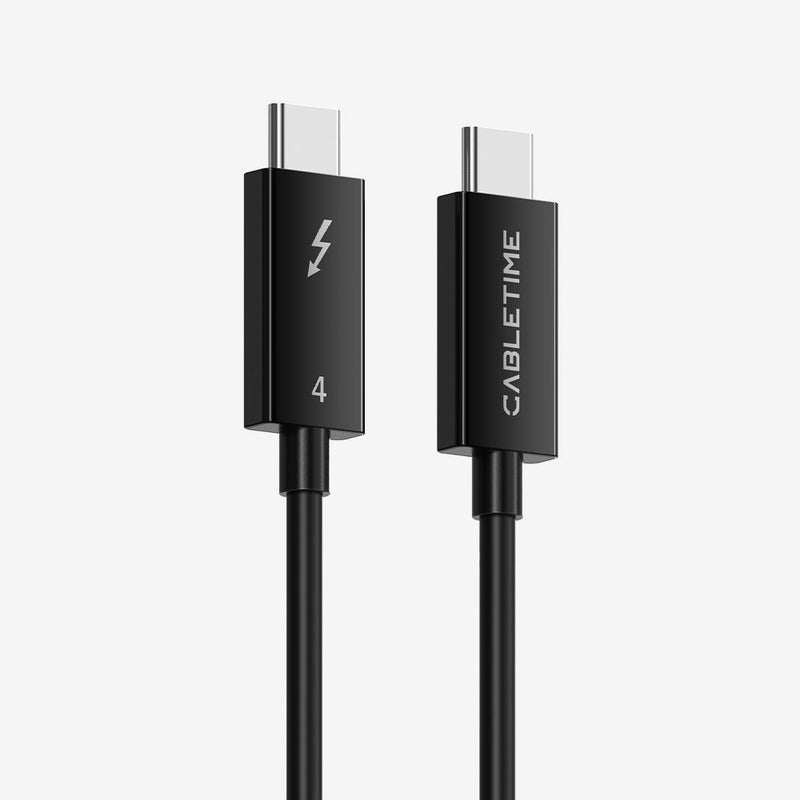

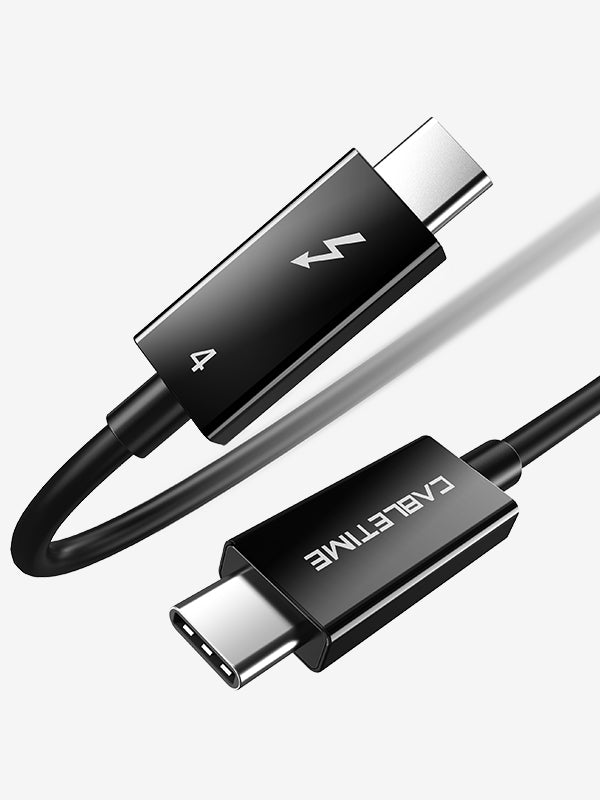

CABLETIME Thunderbolt 4 Cable USB-C to USB-C 8K 60Hz
Thunderbolt 4 Cable USB-C to USB-C 8K 60Hz
Connect compatible laptops, docks, external SSDs and displays through one full-function Thunderbolt 4 cable. The CABLETIME CT40 Series supports up to 40Gbps data, 100W USB-C Power Delivery and high-resolution display output in a compact USB-C to USB-C design.
Key features
- Thunderbolt 4 USB-C male-to-male connection.
- Data transfer up to 40Gbps with compatible equipment.
- USB-C Power Delivery up to 100W, 20V/5A.
- Supports up to 8K@60Hz, 4K@120Hz or dual 4K@60Hz display configurations with compatible hardware.
- Available in 0.5m, 0.8m and 1m.
Compatibility
For compatible Thunderbolt 4, Thunderbolt 3, USB4 and full-function USB-C devices. Final data speed, charging power and display capability are determined by the host, accessory, charger, display and operating-system settings. A USB-C connector alone does not guarantee Thunderbolt performance.
Specifications
| Connectors | USB-C male to USB-C male |
| Maximum data | Up to 40Gbps |
| Maximum charging | 100W, 20V/5A |
| Maximum display support | 8K@60Hz / 4K@120Hz / dual 4K@60Hz |
| Lengths | 0.5m / 0.8m / 1m |
| Models | CT40E / CT40G / CT40H |
| SKUs | CT-C160-U31-TB4-BB0.5 / CT-C160-U31-TB4-BB0.8 / CT-C160-U31-TB4-BB1 |
FAQ
Will it work with an ordinary USB-C port? It can work with compatible USB-C devices, but available functions are limited by that port.
Does every setup reach 40Gbps? No. Both connected devices must support the required high-speed mode.
Will it charge every laptop at 100W? No. The charger and laptop must support the required USB Power Delivery profile.
Available options
| Option | SKU |
|---|---|
| 0.5M | CT40E |
| 0.8M | CT40G |
| 1M | CT40H |
Choose your option using the product selector above. Availability is shown for the selected option.
Match the ports. Choose the right version.
Check connector types, cable length and the supported functions before connecting. Insert plugs without forcing them and leave enough slack around device ports.
Will it support every function of my device?
Only the functions listed for this product should be expected. Charging, data and display capability depend on the accessory and both connected devices; check the product details for your intended use.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
