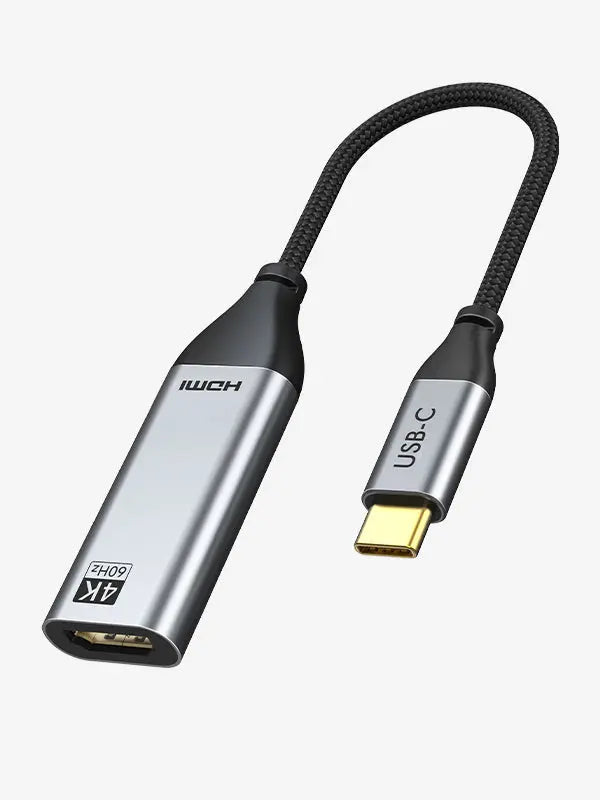

CABLETIME USB-C to HDMI Adapter, 4K@60Hz & 1080p@120Hz
USB-C to HDMI Adapter, 4K@60Hz & 1080p@120Hz

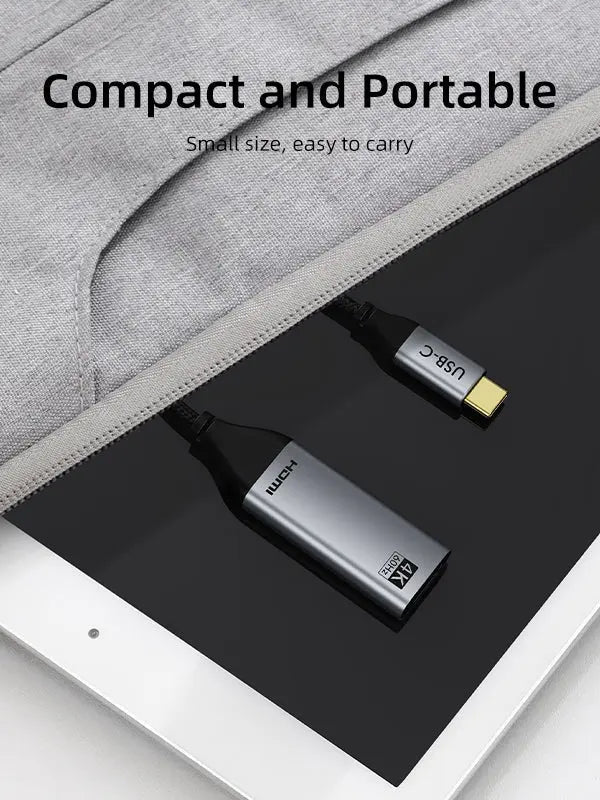

Connect a compatible USB-C or Thunderbolt laptop, tablet or phone to an HDMI monitor, television or projector. The compact adapter supports up to 4K@60Hz and smooth 1080p output without a separate driver or power supply.
Turn a video-capable USB-C port into a full-size HDMI output
Direction and port requirement
This adapter works from a USB-C source to an HDMI display. The USB-C port must support DisplayPort Alternate Mode or Thunderbolt video output. It does not convert HDMI to USB-C and does not provide USB data or laptop charging.
Technical specifications
| Input | USB-C male, gold-plated |
|---|---|
| Output | HDMI female; separate HDMI cable required |

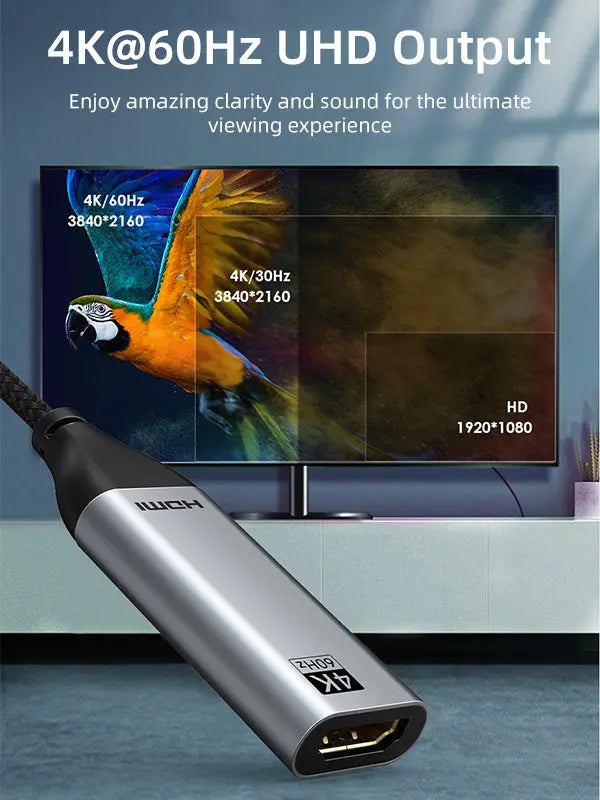

| Video | Up to 4K@60Hz and 1080p@120Hz with compatible hardware |
| Modes | Mirror and extended desktop |
| Model / SKU | CP10B / CT-C160-PU31-CMHDFn1-S0.2 |

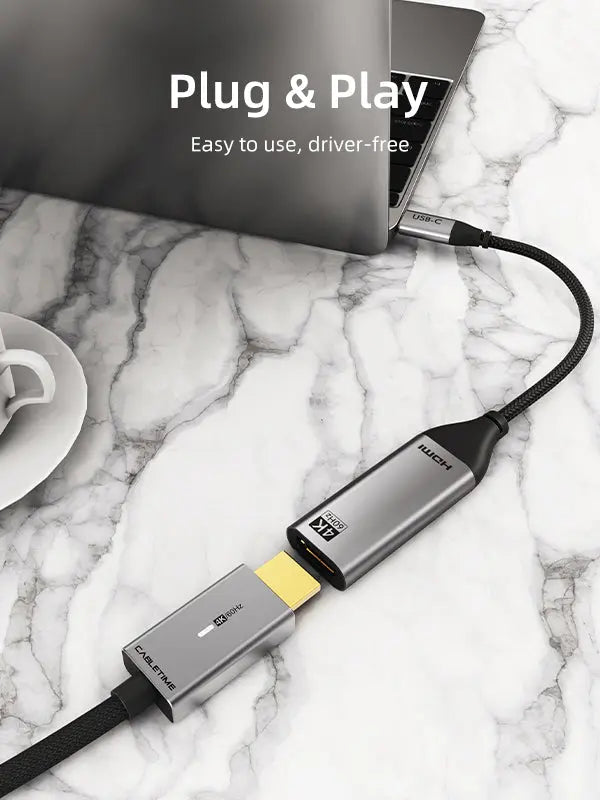

USE
- Confirm the USB-C port supports video output.
- Connect the adapter to the source.
- Run an HDMI cable from the adapter to the display.
- Select the correct HDMI input and set mirror or extend mode.
COMPATIBILITY
Suitable for many DP Alt Mode USB-C and Thunderbolt laptops, tablets and phones, plus HDMI monitors, TVs and projectors. Charging-only and data-only USB-C ports will not produce a picture.
USER SCENARIOS
- Laptop-to-monitor home-office desk
- Conference-room and classroom presentations
- Travel connection to hotel or client-site TVs
- Compatible phone or tablet screen mirroring
FAQ
Will any USB-C port work?
No. It must support wired video output.
Does it charge the laptop?
No. There is no PD input.
Does it carry audio?
Yes, when the source and display support HDMI audio.
GST invoice, India support and the applicable product warranty.
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
