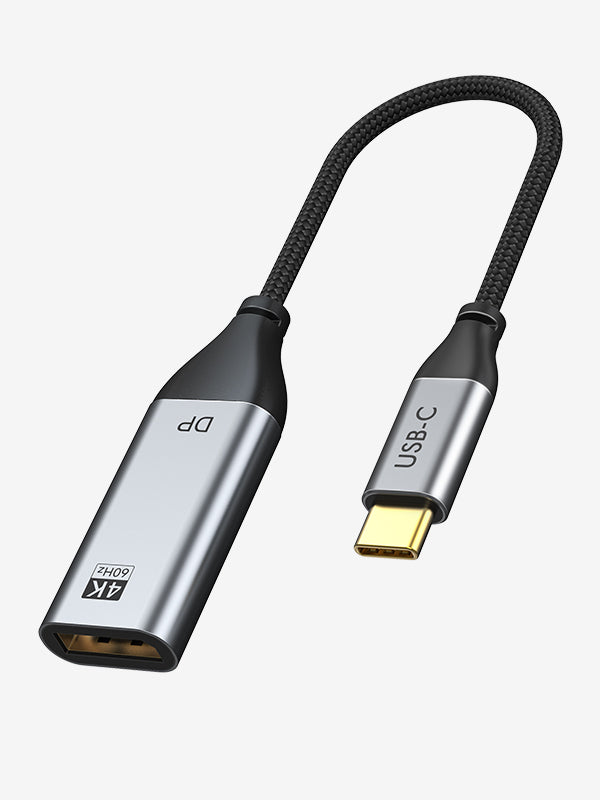

CABLETIME USB-C to DisplayPort Adapter, 4K@60Hz & 1080p@120Hz
USB-C to DisplayPort Adapter, 4K@60Hz & 1080p@120Hz
Extend or mirror a video-capable USB-C or Thunderbolt device on a full-size DisplayPort monitor, television or projector. The adapter supports up to 4K@60Hz and smooth 1080p output without separate software or power.
A compact 4K@60Hz DisplayPort output for USB-C laptops and tablets
Direction and multi-display limits
The adapter sends video from a USB-C source to DisplayPort. It requires DP Alt Mode or Thunderbolt video and a separate DisplayPort cable. It is not bidirectional and does not provide charging or USB data. MST daisy chaining depends on the source, monitors and operating system; macOS generally does not create independent MST desktops.
Technical specifications

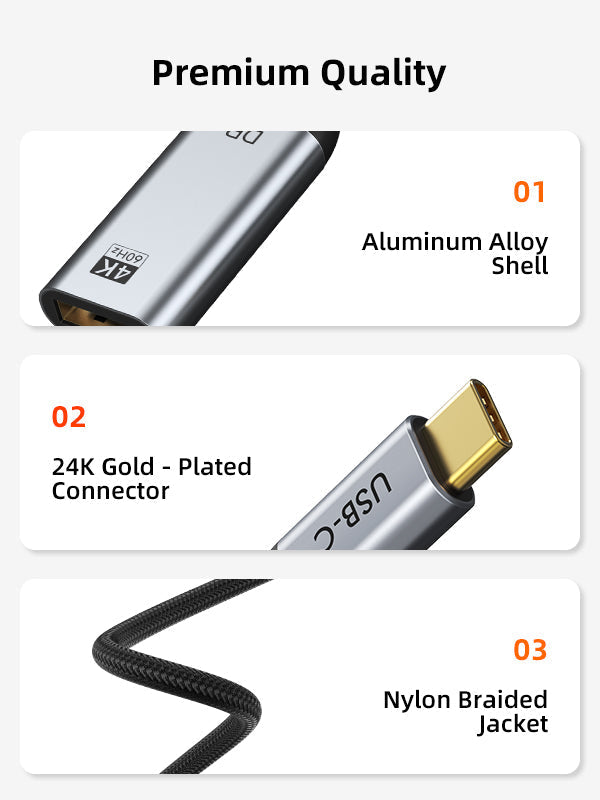

| Input | USB-C male, gold-plated |
|---|---|
| Output | DisplayPort female |
| Video | Up to 4K@60Hz and 1080p@120Hz |
| Display modes | Mirror, extend and compatible MST daisy chain |
| Model / SKU | CP13A / CT-C160-PU31-CMDP1-S0.15 |
USE
- Verify USB-C video capability.
- Connect the adapter to the source.
- Connect a DisplayPort cable to the monitor.
- Select the input and configure the display mode.
COMPATIBILITY

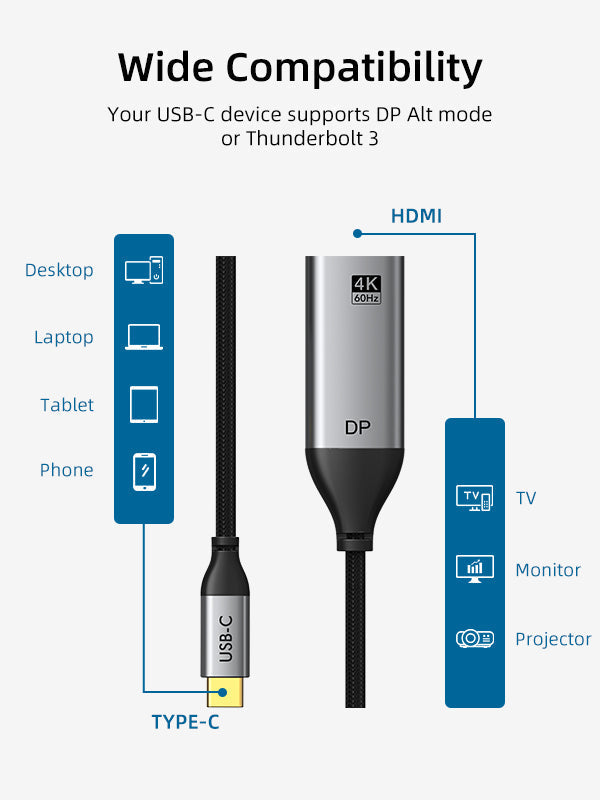

Suitable for many USB-C/Thunderbolt MacBook, Windows laptop, Chromebook, iPad and selected smartphone models that output video, plus DisplayPort monitors and projectors.
USER SCENARIOS
- Add a DisplayPort monitor to a USB-C laptop
- Connect to a DisplayPort projector
- Use compatible 1080p high-refresh screens
- Build a portable workstation kit
FAQ
Does any USB-C port work?
No. Wired video output is required.
Is it bidirectional?
No. USB-C source to DisplayPort display only.
Can it support multiple monitors?
Compatible Windows MST configurations may; macOS support is restricted.
GST invoice, India support and applicable warranty.
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
