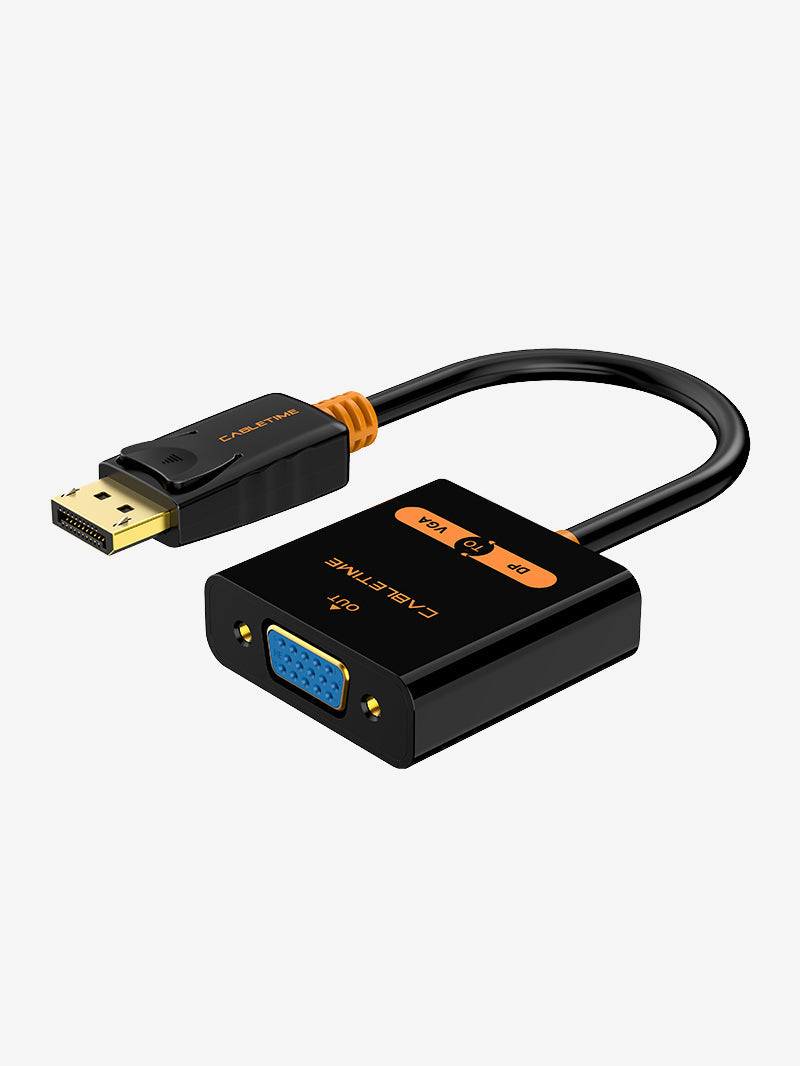

CABLETIME DisplayPort to VGA Adapter, 1080p@60Hz, 0.2m
DisplayPort to VGA Adapter, 1080p@60Hz, 0.2m

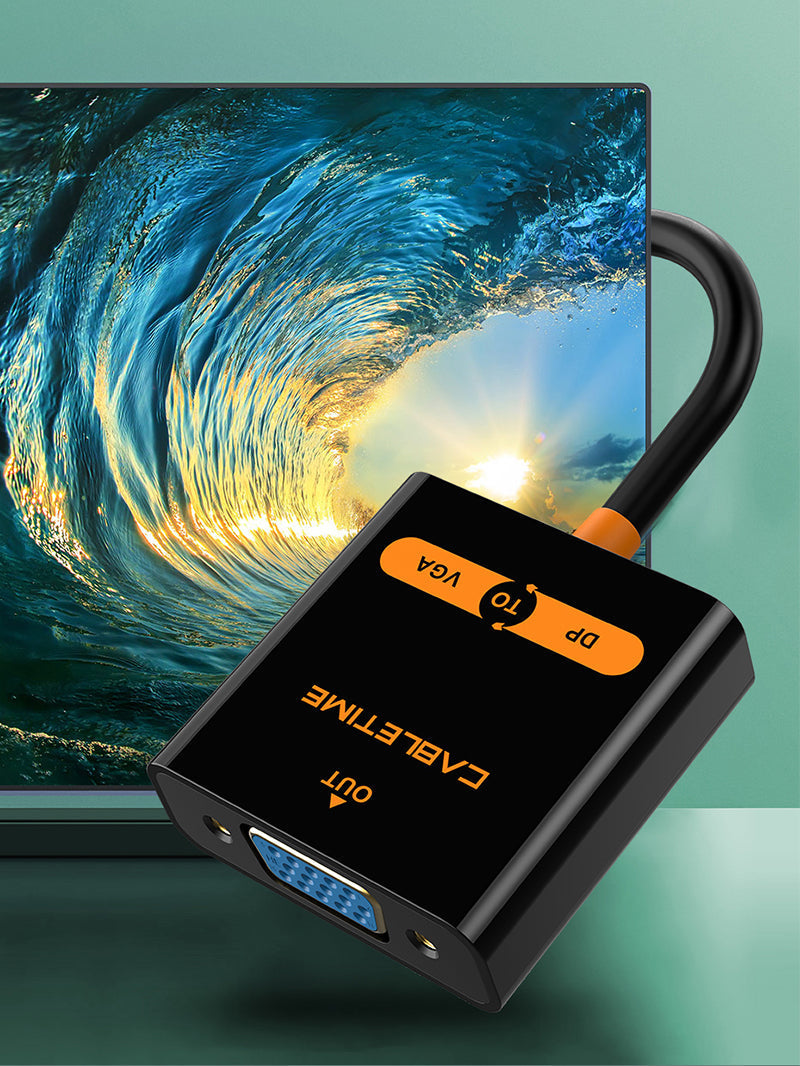

Our CP25B adapter uses active conversion to change a digital DisplayPort signal into analogue VGA video at up to 1080p@60Hz for established displays and presentation systems.
Connect a DisplayPort computer to a VGA monitor or projector in Full HD

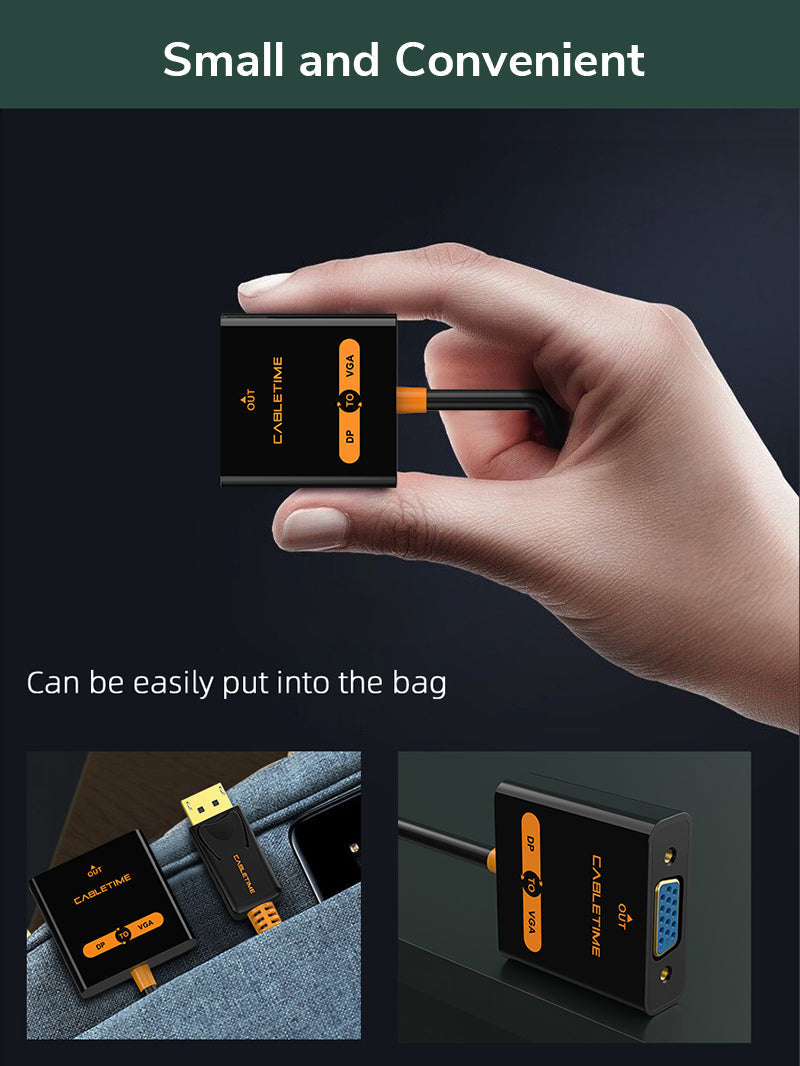

1080p@60HzFull HD analogue outputDP → VGAFixed conversion directionANX9832Integrated conversion chipset0.2mCompact flexible leadKeep older projectors and monitors useful with a DisplayPort source
Connect the locking DisplayPort plug to the computer, then connect a standard VGA cable between the adapter and the display. Choose the VGA input and set the required resolution through the operating system.
Video only: VGA does not transmit audio. Use a separate audio connection where sound is required. The adapter does not work from VGA source to DisplayPort display.
Technical specifications

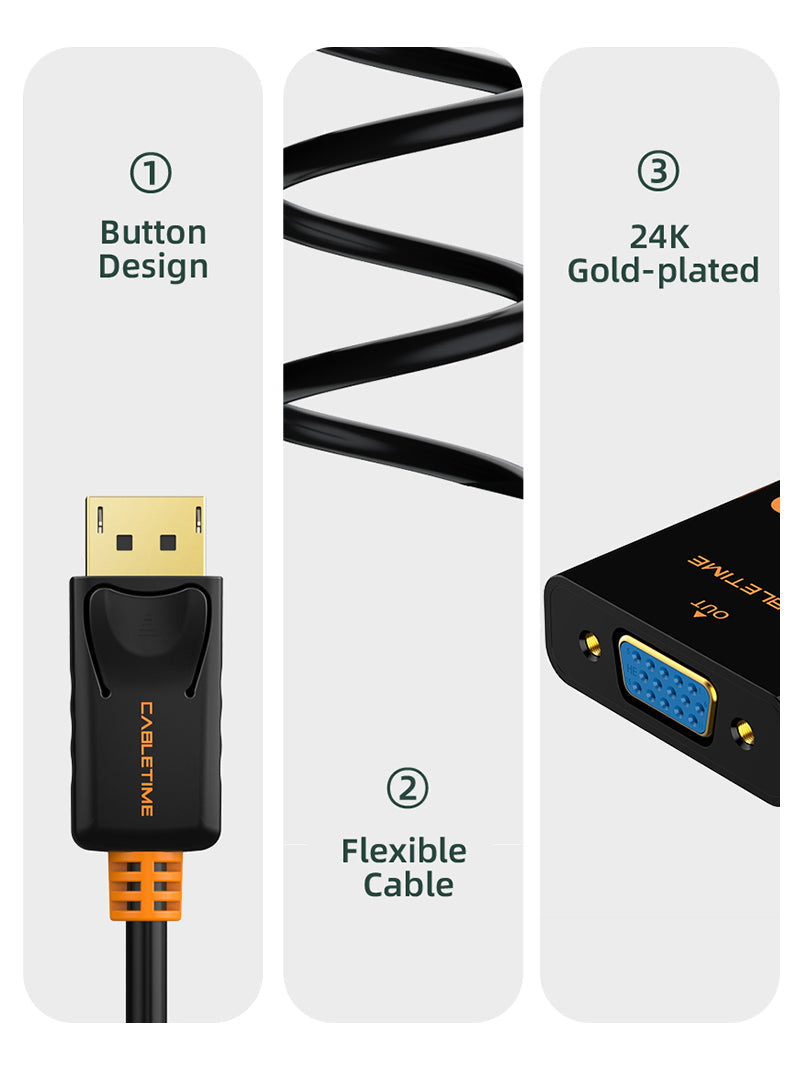

| Source connector | DisplayPort male with retaining latch |
|---|---|
| Display-side socket | VGA female |
| Maximum video | Up to 1920×1080 at 60Hz |
| Chipset / model / SKU | ANX9832 / CP25B / CT-AV586-03G-B0.2 |
USE
- Connect DisplayPort to the source.
- Connect a VGA cable to the adapter and display.
- Select the VGA input.
- Configure resolution and mirror or extended mode.
COMPATIBILITY
For DisplayPort-output computers and VGA-input displays. The display must support the selected VGA resolution.
USER SCENARIOS
- Classroom projector connection
- Office PC to older monitor
- Conference-room presentation kit
- Field service and IT support
FAQ
Does it carry audio?
No.
Can it work VGA to DisplayPort?
No.
Is external power required?
No separate power supply is normally required for a compatible DisplayPort source.
genuine product, GST invoice, India support and applicable warranty.
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
