CABLETIME DisplayPort to DVI Adapter, 1080p, 0.2m
DisplayPort to DVI Adapter, 1080p, 0.2m

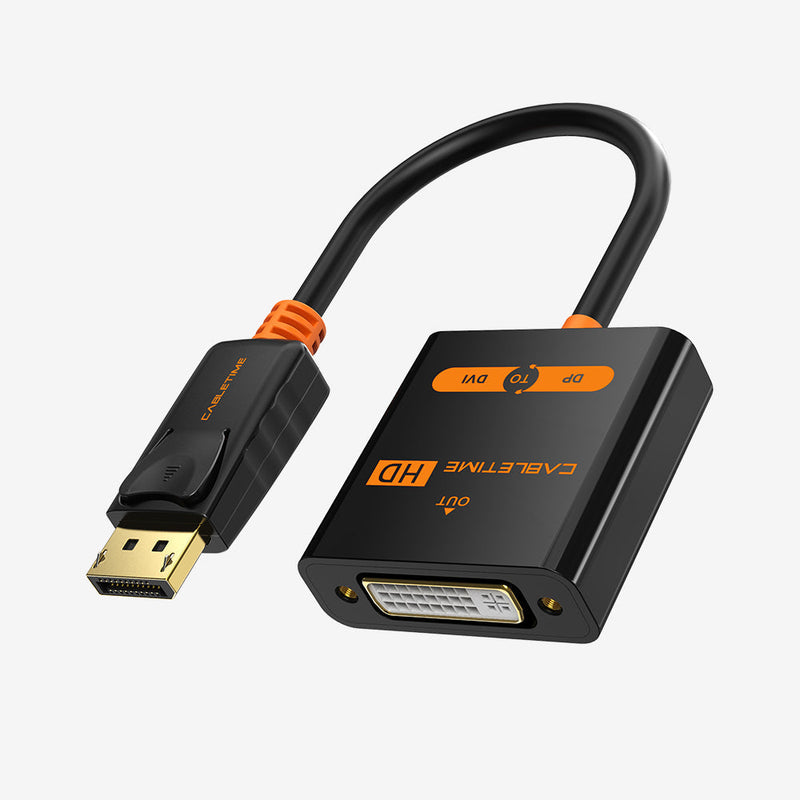

Our compact CP24B adapter converts a compatible DisplayPort output to a DVI display connection at up to Full HD 1080p, helping extend the useful life of dependable DVI equipment.
Connect a DisplayPort computer to an established DVI monitor or projector
1080pFull HD digital videoDP → DVIFixed one-way conversionDVI FemaleConnect a compatible DVI cable0.2mShort flexible adapter leadA simple route from modern graphics output to DVI display input
Connect the DisplayPort male plug to a compatible desktop, workstation, graphics card or dock. Attach a DVI cable to the adapter’s DVI female socket and connect the other end to the monitor or projector.
Video connection: plan a separate audio route because DVI display systems commonly do not carry sound. This adapter is not designed for DVI source to DisplayPort display.
Technical specifications
| Source connector | DisplayPort male with retaining latch |
|---|---|
| Display-side socket | DVI female for compatible digital display connection |
| Maximum video | Up to 1920×1200 or Full HD 1080p with compatible equipment |
| Length / model / SKU | 0.2m / CP24B / CT-AV586-02G-B0.2 |
USE
- Connect the DisplayPort plug to the source computer.
- Connect a compatible DVI cable to the adapter.
- Connect the DVI cable to the display and secure its screws.
- Select the correct input and configure resolution.
COMPATIBILITY
For full-size DisplayPort outputs and compatible DVI display inputs. It does not convert analogue VGA and does not operate in reverse.
USER SCENARIOS
- Office workstation to DVI monitor
- Conference-room DVI projector
- Computer upgrade with an existing display
- IT deployment and service kit
FAQ
Does it carry audio?
Treat it as a video connection and use separate audio.
Can it connect DVI source to DisplayPort monitor?
No.
Does it need a driver?
No driver is normally required for a compatible DisplayPort output.
genuine product, GST invoice, India support and applicable warranty.
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
