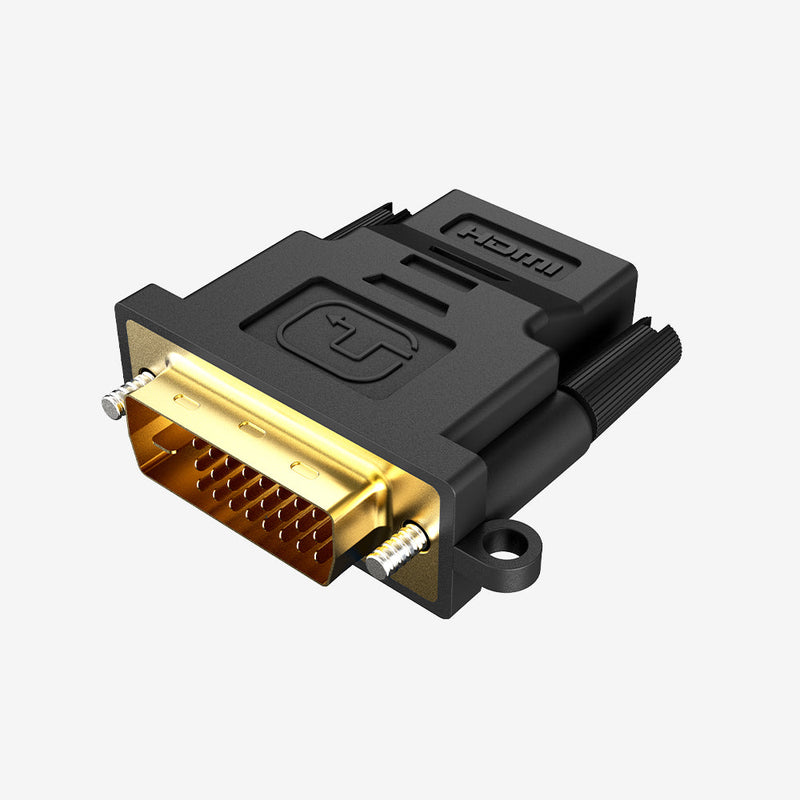

CABLETIME HDMI Female to DVI 24+1 Male Adapter with Retaining Ring
HDMI Female to DVI 24+1 Male Adapter with Retaining Ring
Connect an HDMI cable to a compatible DVI-D display port without a long converter lead. This compact CABLETIME adapter combines an HDMI female socket, a DVI 24+1 male plug and a retaining ring for easy storage in an AV kit.
Key features
- HDMI female to DVI-D 24+1 male connection.
- Supports compatible digital video up to 4K or Full HD, subject to the source and display.
- Gold-plated contacts and compact dark-blue housing.
- Passive plug-and-play design; no software or external power.
Compatibility
For compatible HDMI-source to DVI-display connections. It does not convert analogue VGA and DVI commonly carries video only, so route audio separately unless both connected devices support it.
Specifications
| HDMI side | HDMI female |
| DVI side | DVI-D 24+1 male |
| Model / SKU | AV599-HA05R-GB |
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
