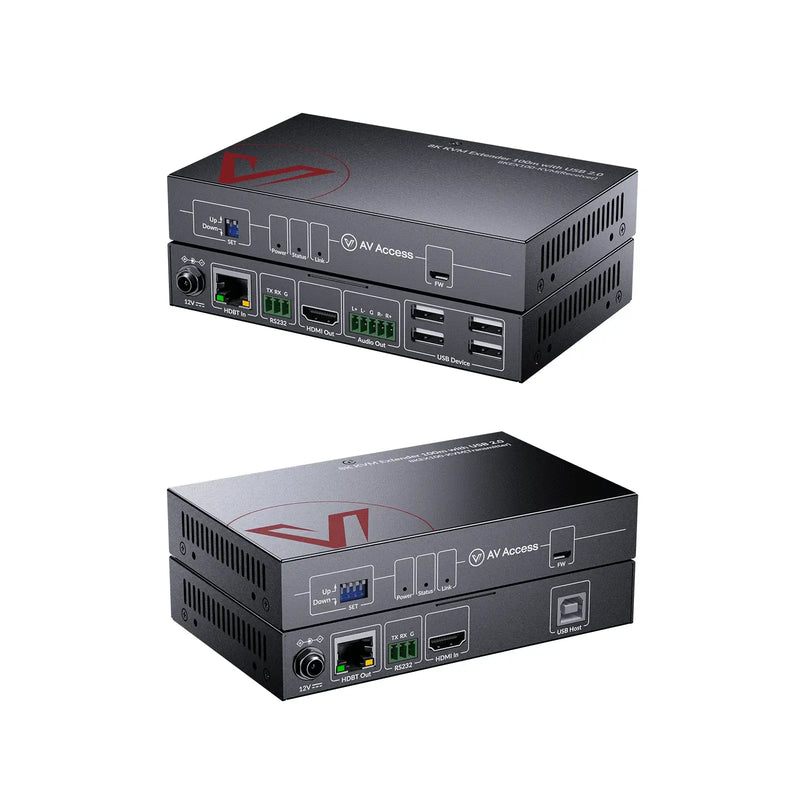

AV Access 8KEX100-KVM Zero-Latency 8K HDMI KVM Extender, HDMI 2.1 & HDCP 2.3, 100m/330ft Over Cat 6/6A/7, 4K/5K Ultrawide Resolution, 4-Port USB 2.0, EDID, PoC & RS-232
Big-screen detail. Long-distance control.
Place the source equipment where it belongs and keep the viewing area uncluttered. 8KEX100-KVM carries video and supported USB control between a matched transmitter and receiver over Cat6 / Cat6a / Cat7; up to 90m with Cat5e, making longer installed connections easier to plan.
8KEX100-KVM

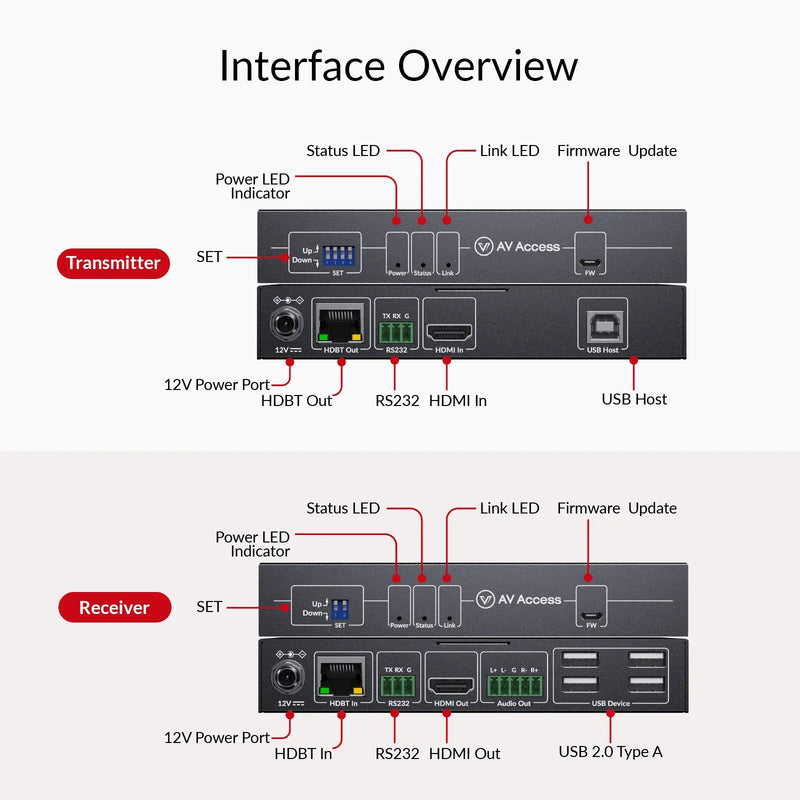

Know what connects where.

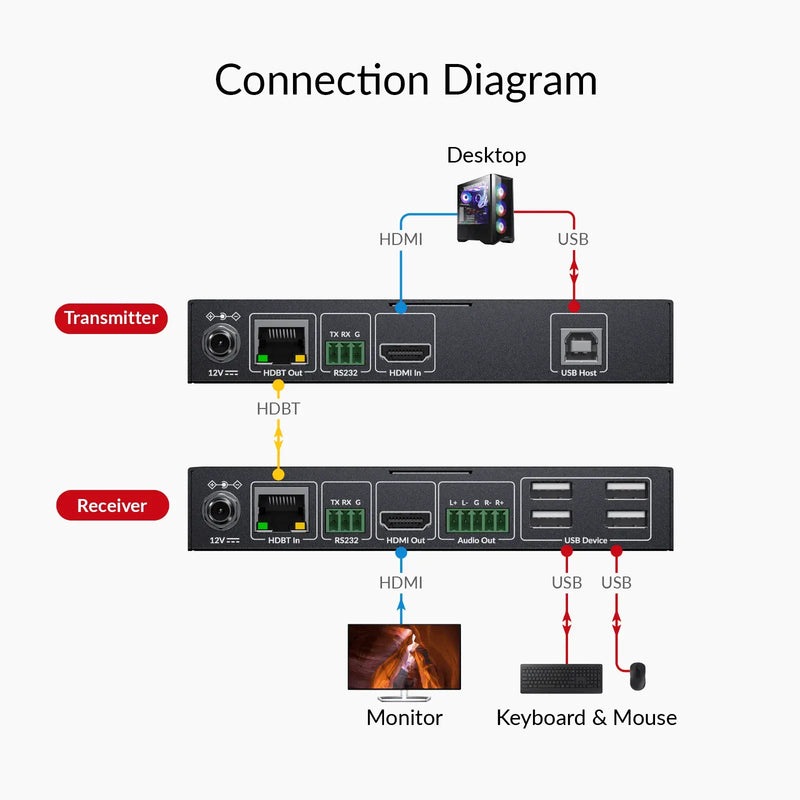

Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Bring the picture to the right place
Use the transmitter beside the source and the receiver beside the remote display. The specified video limit is 8K60 / 4K120; distance depends on cable type and the selected signal. 100m with Cat6 or better is the relevant planning limit for this model.
Keep the remote end useful

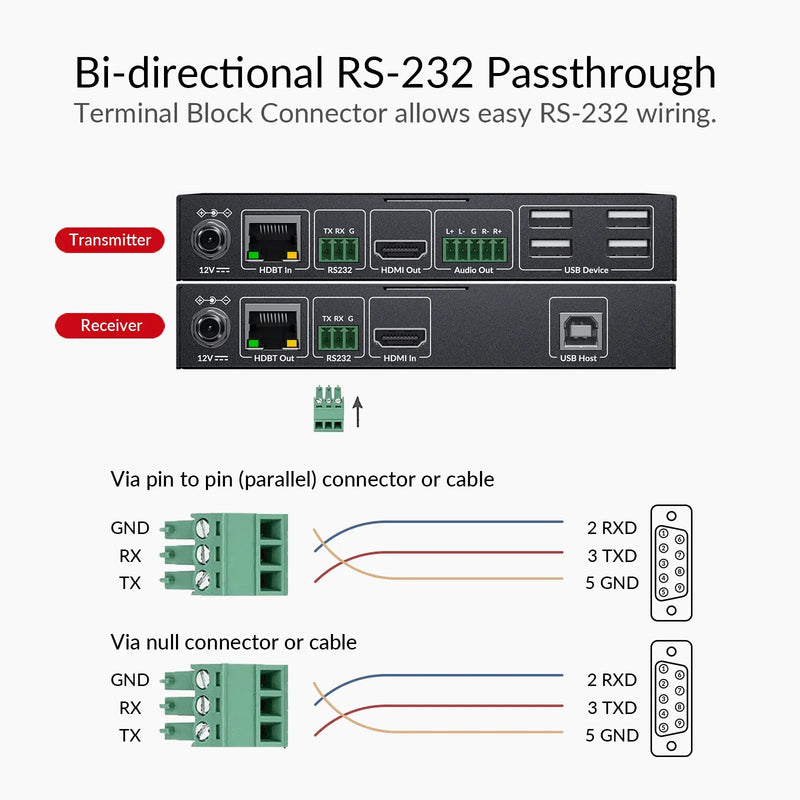

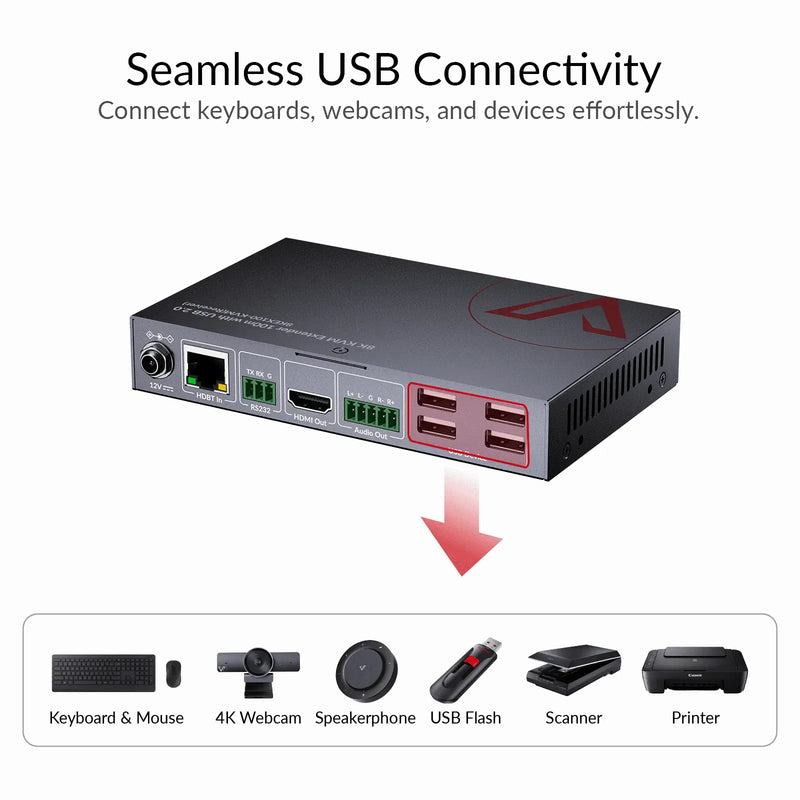

The 40Gbps HDMI path supports 8K 60Hz at 4:2:0, 8K 30Hz at 4:4:4 and 4K 120Hz. Four USB 2.0 ports, EDID management, RS232 and stereo audio extraction support remote work and entertainment installations.
Plan the cable and power together
Use Cat6 / Cat6a / Cat7; up to 90m with Cat5e. Bidirectional PoC allows the supplied 12V/3A adapter to power the kit from either end. Test the complete link, including short video cables at each end, before pulling cable through walls or securing equipment.
Make sure it fits your setup.
The correct cable
Cat6 / Cat6a / Cat7; up to 90m with Cat5e. Use a properly terminated, continuous run within the documented distance.
Direct link required
Connect the labelled extender ports directly to one another. An RJ45 connector does not make this link compatible with a normal Ethernet switch.
Power and peripherals
Bidirectional PoC allows the supplied 12V/3A adapter to power the kit from either end. USB support is USB 2.0, up to 255Mbps effective; match your devices to that limit.

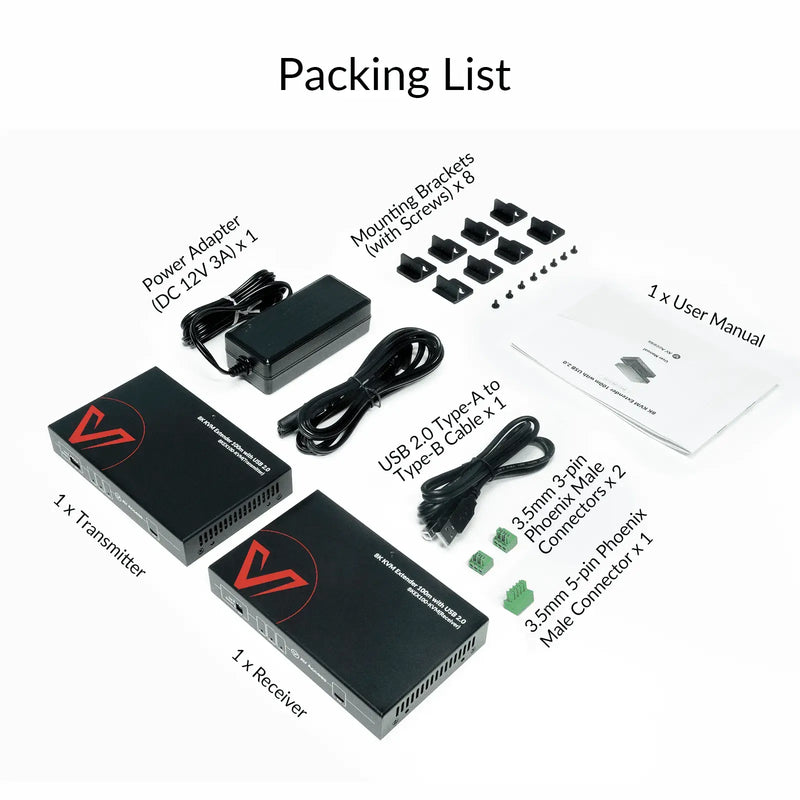

From unboxing to connected.
Plan the link
Match the cable type, total length and required resolution to this model’s limits.
Connect both ends
Put the transmitter at the source and the receiver at the display or USB devices.
Power the kit
Use the power connection specified for this model; then check the link indicators.
Test before installing
Confirm video, sound and any USB/control functions before securing the cable run.
8KEX100-KVM at a glance.
| Model | 8KEX100-KVM |
|---|---|
| Maximum video | 8K60 / 4K120 |
| Transmission range | 100m with Cat6 or better |
| Link medium | Cat6 / Cat6a / Cat7; up to 90m with Cat5e |
| Topology | Point-to-point transmitter + receiver |
| Power arrangement | Bidirectional PoC allows the supplied 12V/3A adapter to power the kit from either end. |
| Additional functions | The 40Gbps HDMI path supports 8K 60Hz at 4:2:0, 8K 30Hz at 4:4:4 and 4K 120Hz. Four USB 2.0 ports, EDID management, RS232 and stereo audio extraction support remote work and entertainment installations. |
| USB support | USB 2.0, up to 255Mbps effective |
| HDMI / HDCP | HDMI 2.1 / HDCP 2.3 |
| HDMI bandwidth | 40Gbps |
| 8K colour format | 8K60: 4:2:0; 8K30: 4:4:4 |
A little clarity before you buy.
Can I connect it through a network switch?
No. This model needs the specified direct link between its transmitter and receiver. Choose a documented AV-over-IP model for switched-network distribution.
Is the maximum distance the same at every resolution?
100m with Cat6 or better. Follow the model documentation for cable category and signal-specific limits.
What should I check if there is no picture?
Check input/output direction, power indicators and cable termination. Try a lower source resolution and a short known-good link before testing the installed run.
