AV Access iDock B30 USB-C KVM Switch 10 In 1 Docking Station, 3-Port with HDMI for Dual Monitor, 65W Power Delivery & Ethernet Port for Laptop
Three computers. One complete dual-screen desk.
Share two HDMI monitors and your desk accessories between two desktops and one laptop. iDock B30 brings display switching and USB expansion into one place, with laptop charging and wired networking for a more organised daily workspace.
iDock B30
Know what connects where.

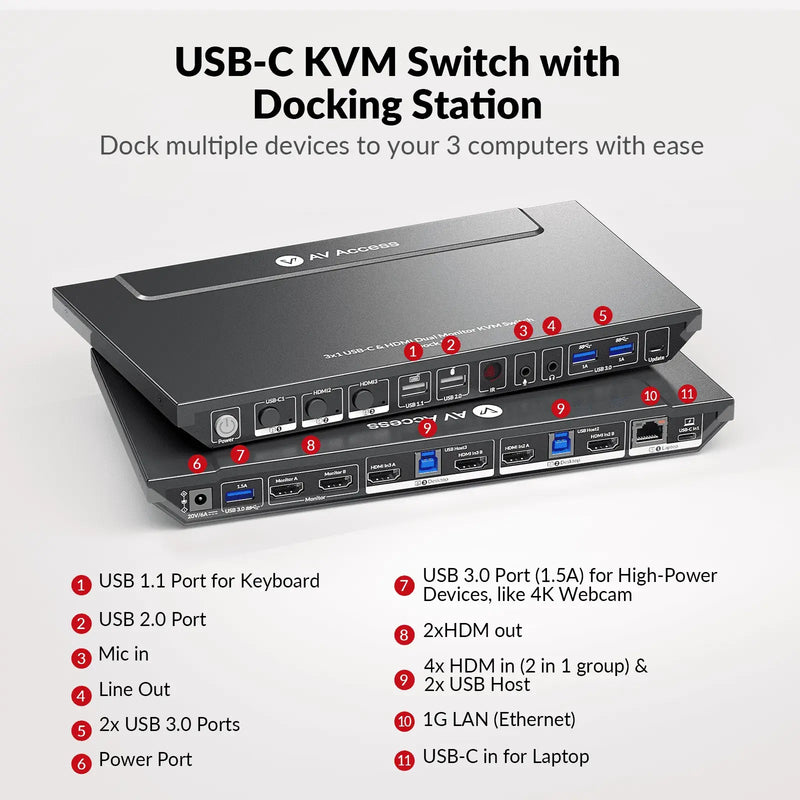

Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Give each task its own screen
Use two independent displays for documents, timelines or a reference window on a compatible Windows system. The USB-C path uses DisplayPort MST, so the laptop’s video capability determines the supported pair of resolutions.
Keep the accessories at the desk
Connect your keyboard, mouse, webcam and supported USB storage to the dock. Selecting a computer moves the shared workspace to that source, helping you avoid reconnecting individual devices.

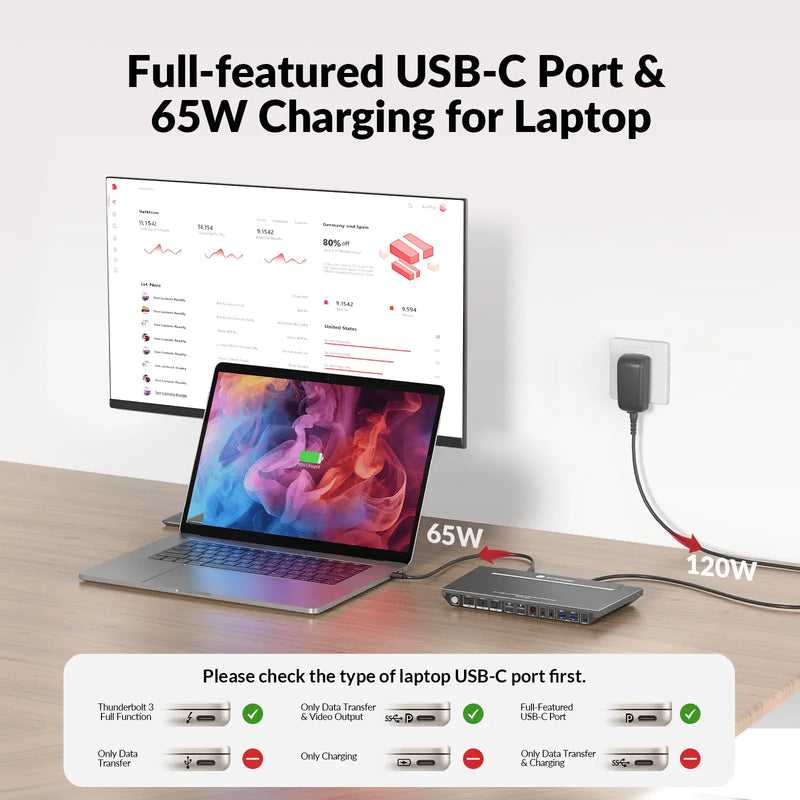

Power and networking, clearly explained
Laptop charging is delivered from the included dock power supply. Gigabit Ethernet is for the USB-C laptop only. Separate microphone and line-out connections suit a desk with existing audio equipment.
Make sure it fits your setup.
USB-C video is essential
A charging-only or data-only USB-C port cannot drive the monitors. Check DisplayPort Alt Mode and the host’s MST/display bandwidth before ordering.
Mac display mode
macOS does not support independent extended screens through this MST connection; the two external monitors mirror each other.
A shared workspace
Each desktop needs two independent HDMI outputs plus USB host. Both monitors follow the selected computer.
From unboxing to connected.
Check the computers
Confirm video outputs, USB host connections and the supported display count.
Connect the displays
Match the labelled monitor outputs to the display inputs using suitable cables.
Add your peripherals
Attach keyboard, mouse and other devices; connect the specified power supply.
Select and configure
Select a computer, then set resolution, refresh rate and display mode in its settings.
iDock B30 at a glance.
| Model | iDock B30 |
|---|---|
| Computer setup | Two desktops and one laptop |
| Inputs | 1 × USB-C laptop; 2 × dual-HDMI desktop groups with USB host |
| Display outputs | 2 × HDMI; up to 4K 60Hz each with suitable host |
| Laptop charging | 65W maximum; Laptop charging is delivered from the included dock power supply. |
| USB data | 5Gbps on high-speed ports; USB 2.0 on designated ports |
| Ethernet | Gigabit Ethernet is for the USB-C laptop only. |

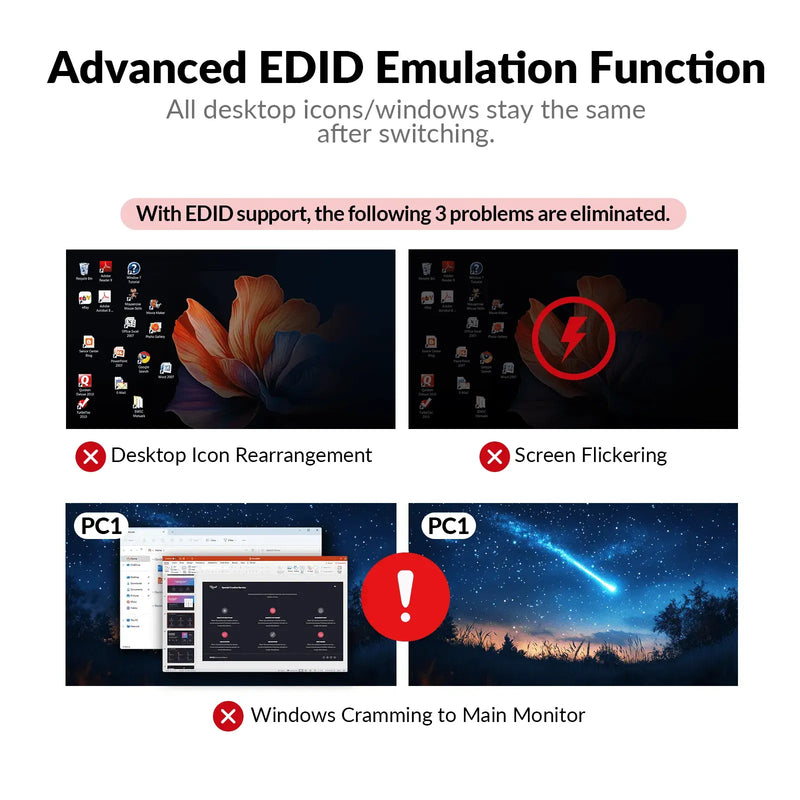

| Display retention | EDID emulation supported |
| Switching | Front buttons, keyboard hotkeys or IR remote |
| USB-C display method | DisplayPort Alt Mode / MST; host dependent |
A little clarity before you buy.
Can I show one computer on each monitor?
This dock is designed to switch the monitor pair to one selected computer. It is not an independent video matrix.
Why am I not seeing two 4K 60Hz options?
Check the laptop GPU, DisplayPort version, MST and DSC support, then the cables and monitor inputs. The dock’s maximum is not a guarantee for every USB-C host.
How do I change computers?
Front buttons, keyboard hotkeys or IR remote.
