AV Access HDEX60-DM | 1080P Dual HDMI KVM Extender with USB 2.0 – Up to 60 m/197 ft HDMI & USB Over Cat Cable, Plug & Play
A dual-screen workstation, up to 60 metres away.
Place the source equipment where it belongs and keep the viewing area uncluttered. HDEX60-DM carries video and supported USB control between a matched transmitter and receiver over Cat5e / Cat6 / Cat6a / Cat7, making longer installed connections easier to plan.
HDEX60-DM

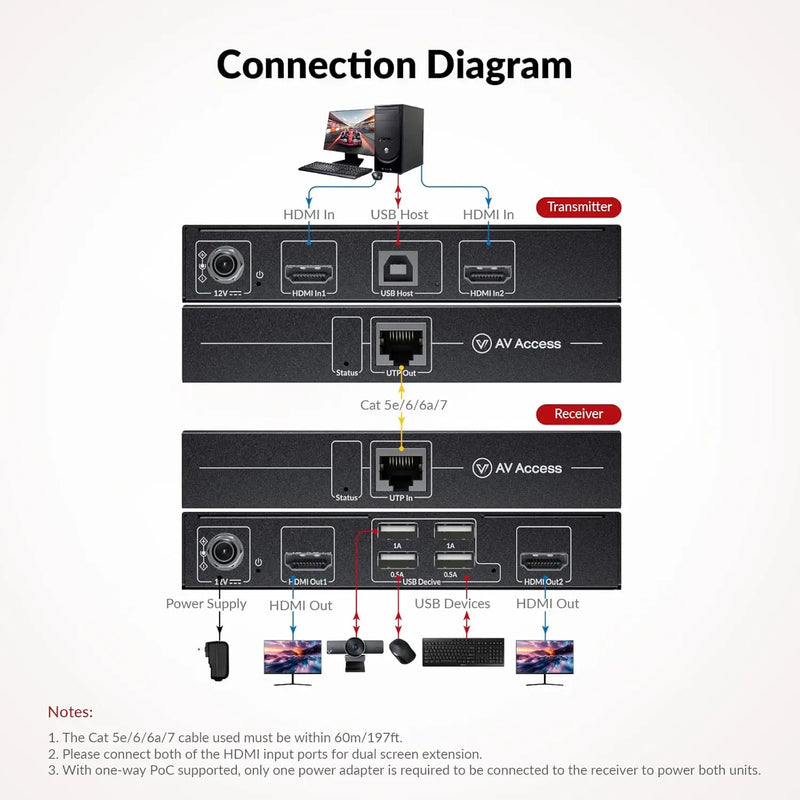

Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Bring the picture to the right place

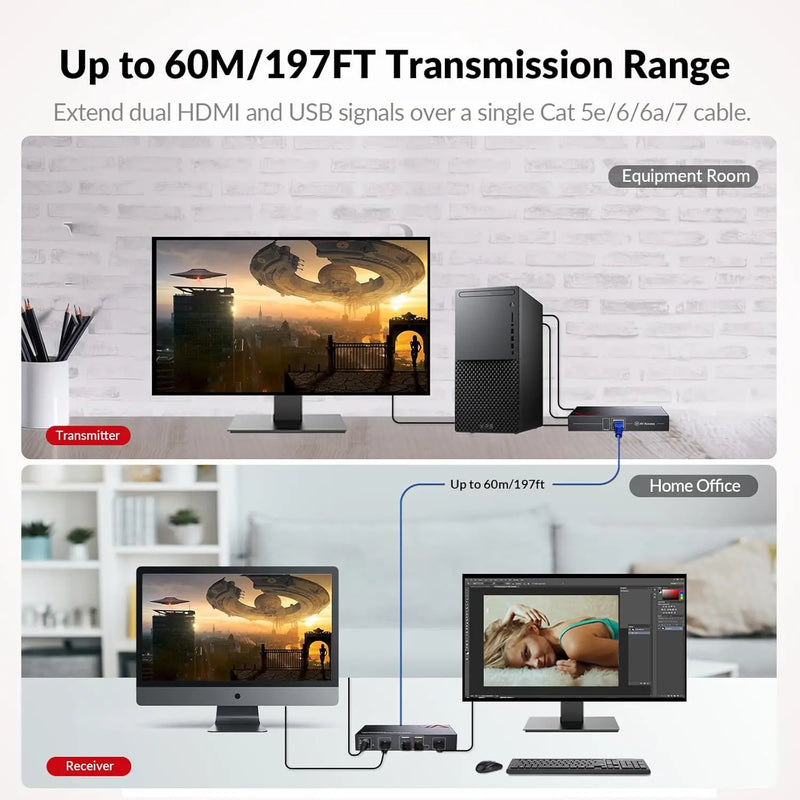

Use the transmitter beside the source and the receiver beside the remote display. The specified video limit is 2 × 1080p60; distance depends on cable type and the selected signal. Up to 60m is the relevant planning limit for this model.
Keep the remote end useful

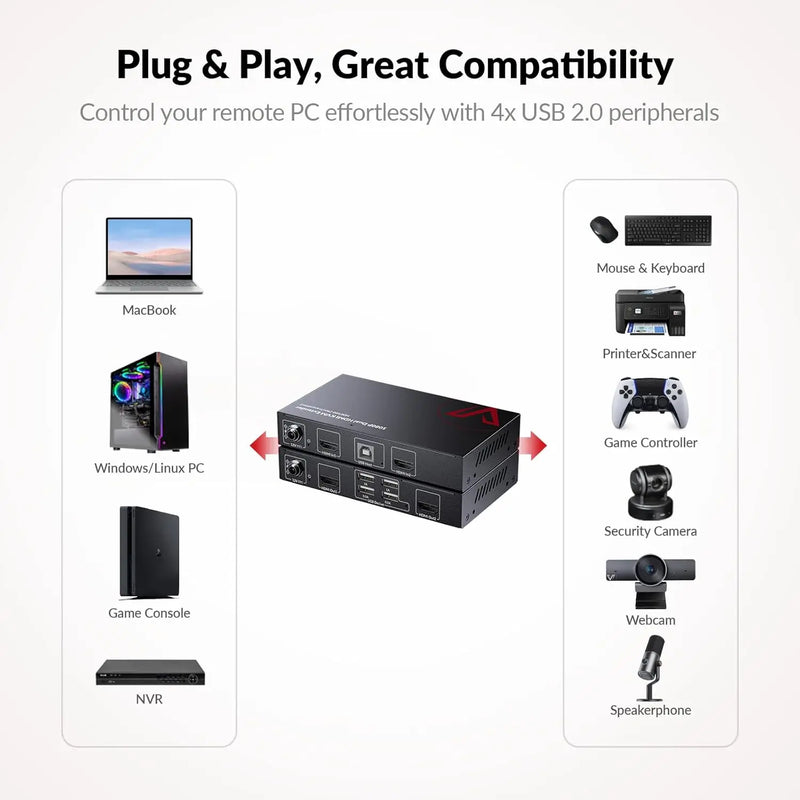

Two separate HDMI signals and four USB 2.0 device ports make this useful for remote dual-monitor workstations. The source computer must provide both independent HDMI signals.
Plan the cable and power together
Use Cat5e / Cat6 / Cat6a / Cat7. Power the receiver with the supplied adapter; the link powers the transmitter. Test the complete link, including short video cables at each end, before pulling cable through walls or securing equipment.
Make sure it fits your setup.
The correct cable
Cat5e / Cat6 / Cat6a / Cat7. Use a properly terminated, continuous run within the documented distance.
Direct link required
Connect the labelled extender ports directly to one another. An RJ45 connector does not make this link compatible with a normal Ethernet switch.
Power and peripherals
Power the receiver with the supplied adapter; the link powers the transmitter. USB support is USB 2.0, up to 480Mbps; match your devices to that limit.
From unboxing to connected.
Plan the link
Match the cable type, total length and required resolution to this model’s limits.
Connect both ends
Put the transmitter at the source and the receiver at the display or USB devices.
Power the kit
Use the power connection specified for this model; then check the link indicators.
Test before installing
Confirm video, sound and any USB/control functions before securing the cable run.
HDEX60-DM at a glance.
| Model | HDEX60-DM |
|---|---|
| Maximum video | 2 × 1080p60 |
| Transmission range | Up to 60m |
| Link medium | Cat5e / Cat6 / Cat6a / Cat7 |
| Topology | Point-to-point transmitter + receiver |
| Power arrangement | Power the receiver with the supplied adapter; the link powers the transmitter. |
| Additional functions | Two separate HDMI signals and four USB 2.0 device ports make this useful for remote dual-monitor workstations. The source computer must provide both independent HDMI signals. |
| USB support | USB 2.0, up to 480Mbps |
| Video inputs / outputs | 2 × HDMI at each end |
| Remote USB ports | 4 × USB-A |
A little clarity before you buy.
Can I connect it through a network switch?
No. This model needs the specified direct link between its transmitter and receiver. Choose a documented AV-over-IP model for switched-network distribution.
Is the maximum distance the same at every resolution?
Up to 60m. Follow the model documentation for cable category and signal-specific limits.
What should I check if there is no picture?
Check input/output direction, power indicators and cable termination. Try a lower source resolution and a short known-good link before testing the installed run.
