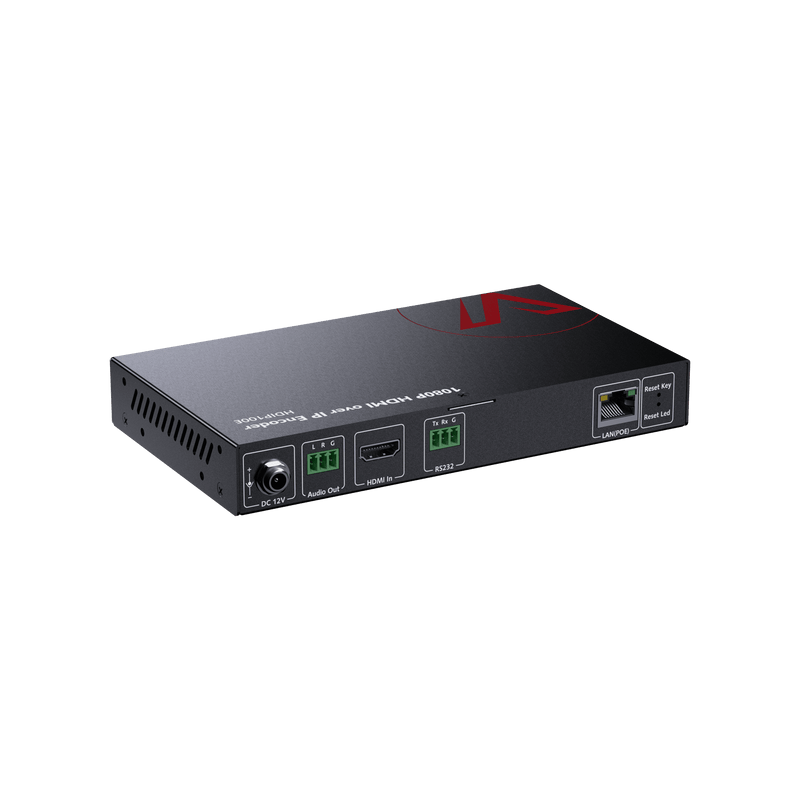

AV Access HDIP100E 1080p HDMI over IP Encoder – 8x8 Video Wall, VDirector App, PoE, Audio & RS232
One HDMI source, to as many screens as you need.
HDIP100E turns an HDMI source into a stream on a standard Ethernet network. Paired with HDIP100D decoders, it builds 1080p matrix switching and video walls up to 8×8 — plug-and-play, with no switch configuration.
HDIP100E

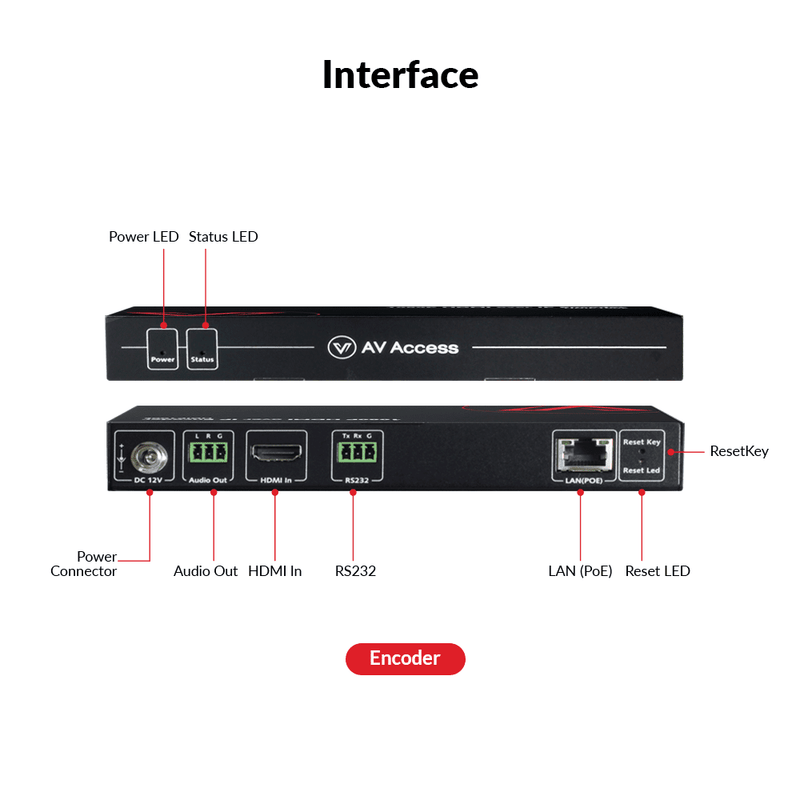

Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Zero configuration
Works with managed or unmanaged switches with no IGMP or VLAN set-up — connect and it streams.
Visual control in an app
The VDirector app on iOS, Android or Windows lets you drag sources to screens and build video walls visually.
Built for venues
Ideal for sports bars, restaurants, retail and houses of worship, with PoE for simple power and RS-232 for control.
Make sure it fits your setup.
Needs HDIP100D decoders
The encoder streams to HDIP100D decoders on the same network.
1080p system
HDIP100 is a 1080p system; for 4K choose 4KIP200 or 4KIPJ200.
Network switch
A standard Gigabit switch (PoE optional) connects all endpoints.
From unboxing to connected.
Connect the source
HDMI into the encoder.
Connect to the switch
LAN to the network switch; PoE or 12V power.
Add decoders
HDIP100D at each display on the same network.
Route in the app
Use VDirector to assign sources and walls.
HDIP100E at a glance.
| Model | HDIP100E encoder |
|---|---|
| Input | 1× HDMI |
| Video | 1080p over IP |
| Network | 1× LAN, standard Ethernet |
| Control | VDirector app, HDIP-IPC, OSD, RS-232 |

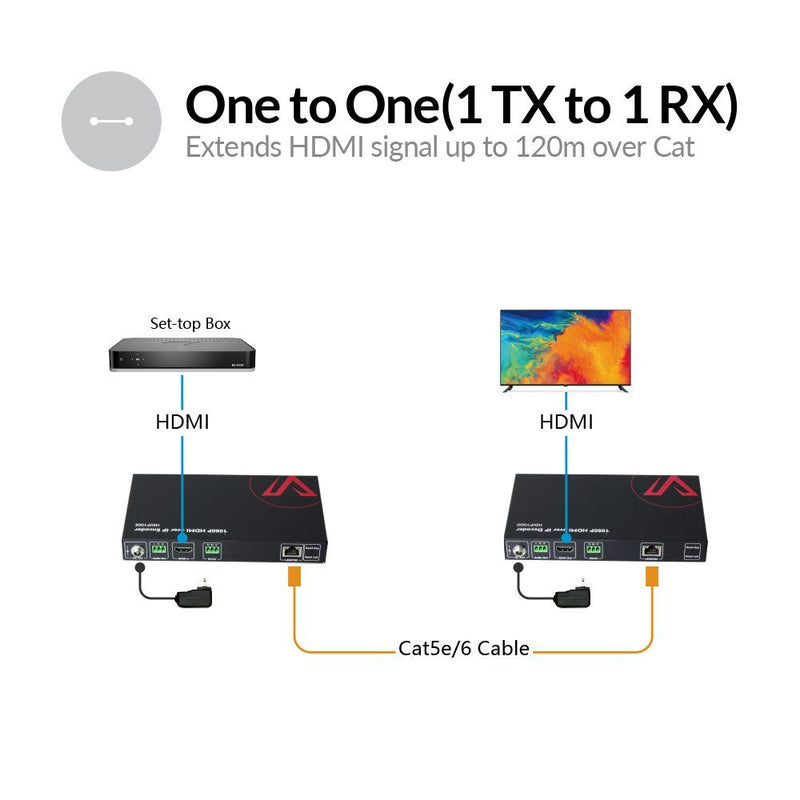

| Distribution | 1:1, 1:many, many:many |
| Scale | Up to 50 HDIP100D per encoder |
| Video wall | Up to 8×8 |

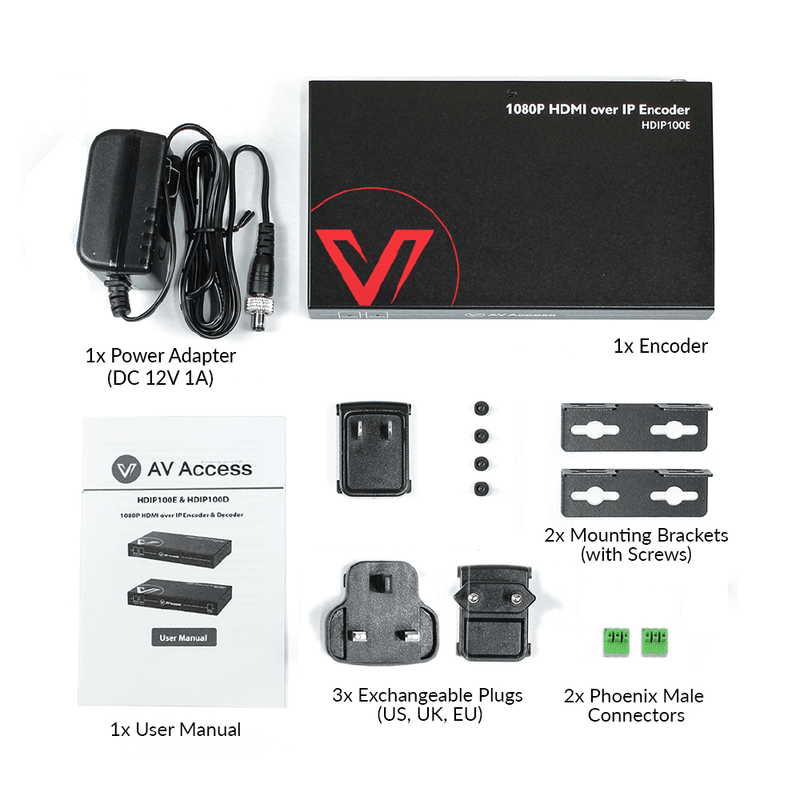

| Included | 12V 1A adapter, US/UK/EU plugs |
| Power | DC 12V 1A or PoE |
A little clarity before you buy.
What is the HDIP100E?
A plug-and-play 1080p HDMI over IP encoder that streams HDMI over standard Ethernet to HDIP100D decoders.

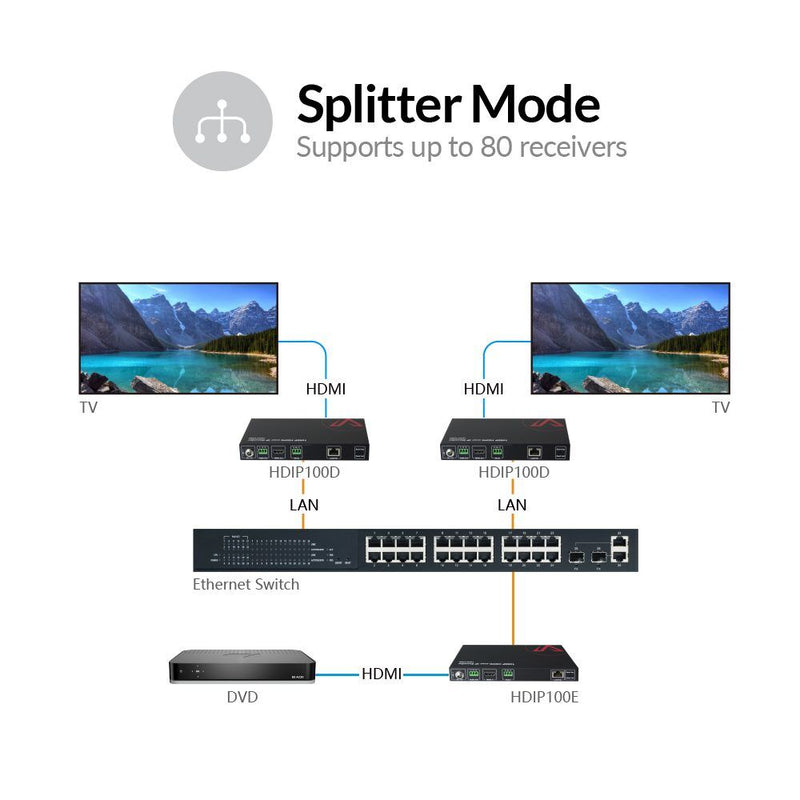

How do I send one source to many screens?
Connect one encoder and several HDIP100D decoders to the same switch.

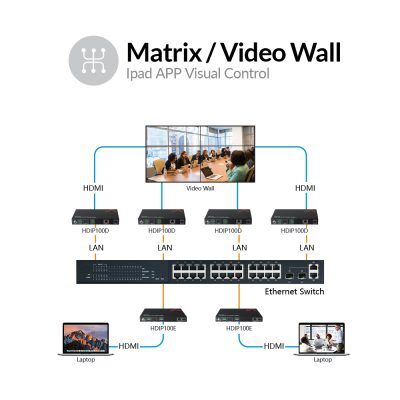

How do I build a matrix?
Connect all encoders and decoders to the network and route them in the VDirector app.
