CABLETIME 1×8 HDMI Splitter Distribution Amplifier, 4K@30Hz, 1 Input to 8 Displays
1×8 HDMI Splitter Distribution Amplifier, 4K@30Hz, 1 Input to 8 Displays

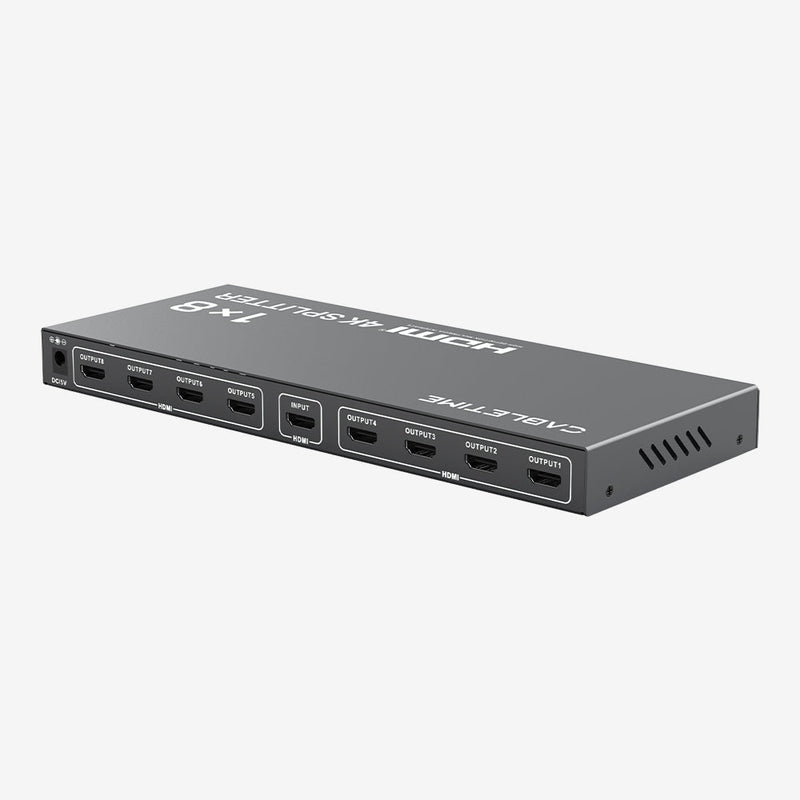

The CABLETIME CP39G is a powered 1-input, 8-output HDMI distribution amplifier. It duplicates one HDMI audio-video signal across up to eight compatible HDMI displays at resolutions up to 4K@30Hz.

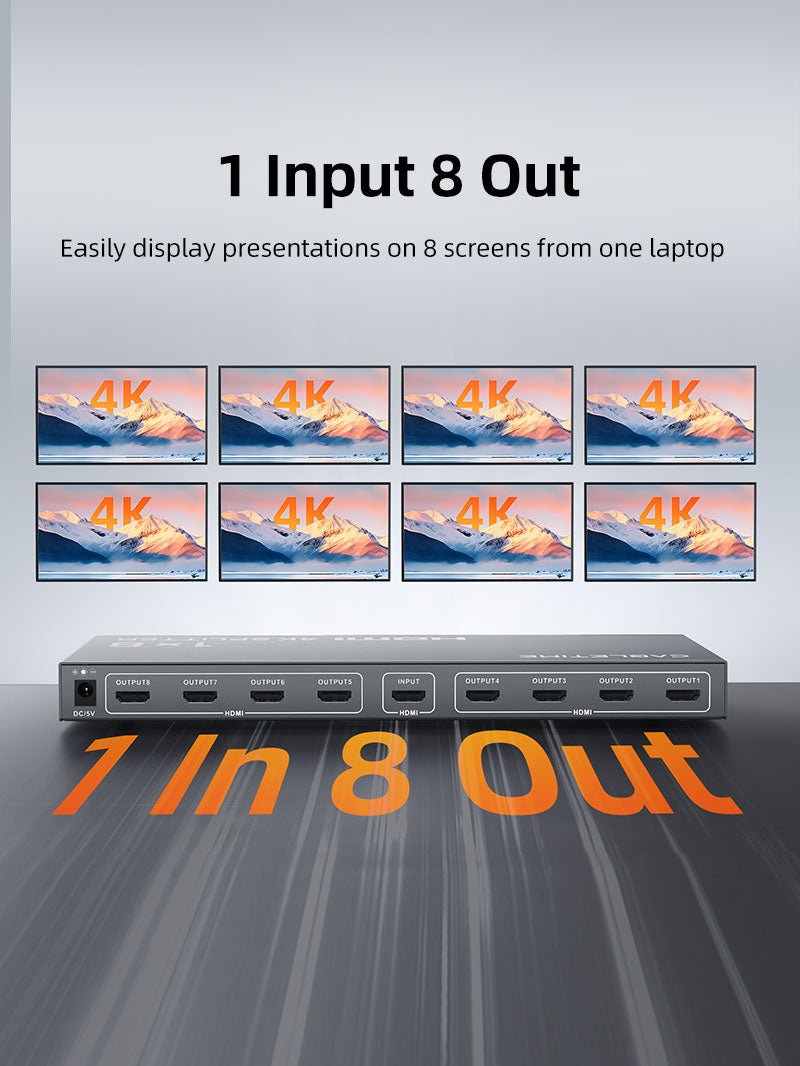

Send one HDMI source to eight displays showing the same content
1 HDMI InputConnect one source device.
8 HDMI OutputsFeed up to eight compatible displays.
Up to 4K@30HzSubject to the complete HDMI system.
Same ContentThis is signal duplication, not eight independent desktops.
A true 1×8 HDMI splitter

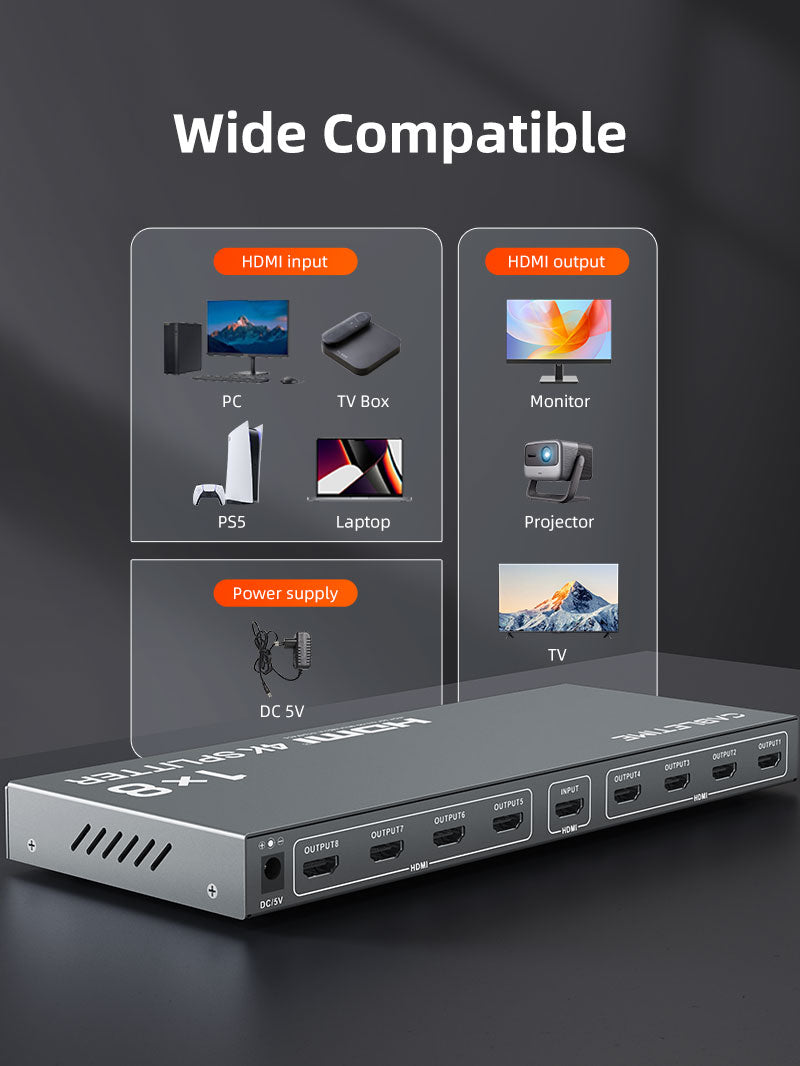

Connect a computer, media player, set-top box, recorder or other compatible HDMI source to the input. The splitter distributes that source to as many as eight TVs, monitors, projectors or capture destinations.
What it does not do:It cannot create eight different screens or independent extended desktops. Every connected output receives the same source content.
Technical specifications
| Brand | CABLETIME |
|---|---|
| Model / SKU | CP39G / CT-HSP4K18-FG |
| Product type | Powered HDMI distribution amplifier / splitter |
| Input | 1 × HDMI female |
| Outputs | 8 × HDMI female |
| Signal direction | Unidirectional: HDMI input to HDMI outputs |
| Maximum listed resolution | Up to 4K@30Hz with compatible source, displays and cables |
| Display behaviour | Duplicates the same source content across connected outputs |
| Housing | Iron / metal enclosure |
USE
Use in showrooms, classrooms, control rooms, conference spaces, retail signage and AV installations where one HDMI source must appear on multiple displays.
COMPATIBILITY
The HDMI source, every display and every cable must support the selected resolution. For stable operation, connect the supplied or specified power source and use suitable HDMI cable lengths.
USER SCENARIOS
One media player to eight showroom TVs; one presentation computer to multiple room displays; one CCTV recorder output to several monitoring screens.
FAQ
Can each screen show something different? No. All outputs duplicate the same source.
Is it an HDMI switch? No. It has one input and eight outputs.
Does every output have to be used? No. You may connect fewer than eight displays.
Genuine CABLETIME product • GST invoice • India-based assistance • Applicable warranty support • Exact CP39G and CT-HSP4K18-FG identification
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
