UGREEN 25665 20Gbps NVMe & SATA M.2 SSD Enclosure
by Ugreen
Save 29%
Original price
Rs. 7,775.00
Original price
Rs. 7,775.00
-
Original price
Rs. 7,775.00
Original price
Rs. 7,775.00
Current price
Rs. 5,547.00
Rs. 5,547.00
-
Rs. 5,547.00
Current price
Rs. 5,547.00
Product overview
Overview
UGREEN 25665 turns one compatible M.2 SSD into portable USB storage. It accepts PCIe NVMe drives with an M-key or compatible B+M-key edge and M.2 SATA drives with a B+M-key edge, across the common 2230, 2242, 2260 and 2280 board lengths.
Features
What it does well.
Key features
Highlights
- Dual-protocol M.2 support: one compatible PCIe NVMe or M.2 SATA SSD, selected automatically by the bridge.
- Four card lengths: 2230, 2242, 2260 and 2280 with the correct internal fixing position.
- High-speed host link: USB 3.2 Gen 2x2 up to 20Gbps theoretical when port, cable, bridge and system all support it.
- Mac expectation: guidance specifies up to 10Gbps on Mac; connector shape alone does not establish Gen 2x2.
- Thermal path: aluminium shell and supplied thermal interface pieces transfer heat away from the installed SSD.

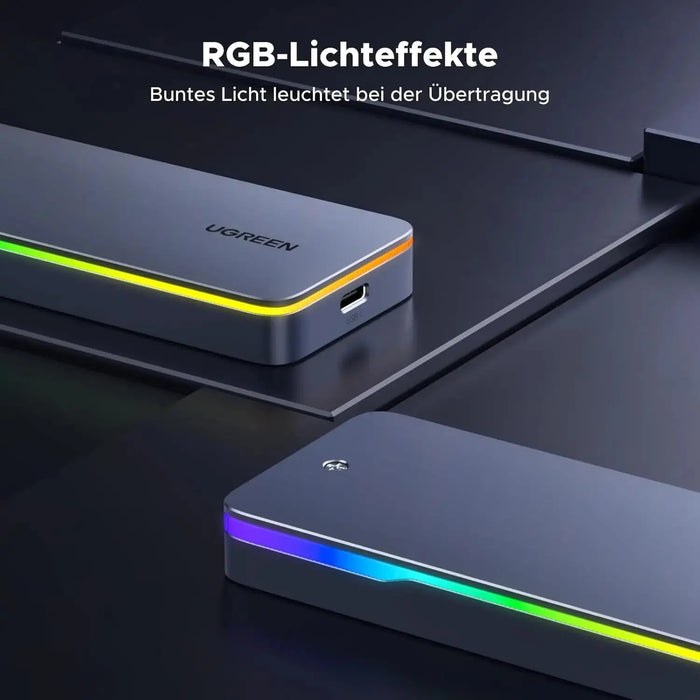

- RGB light strip: integrated illumination presents the enclosure’s operating state without replacing safe ejection.

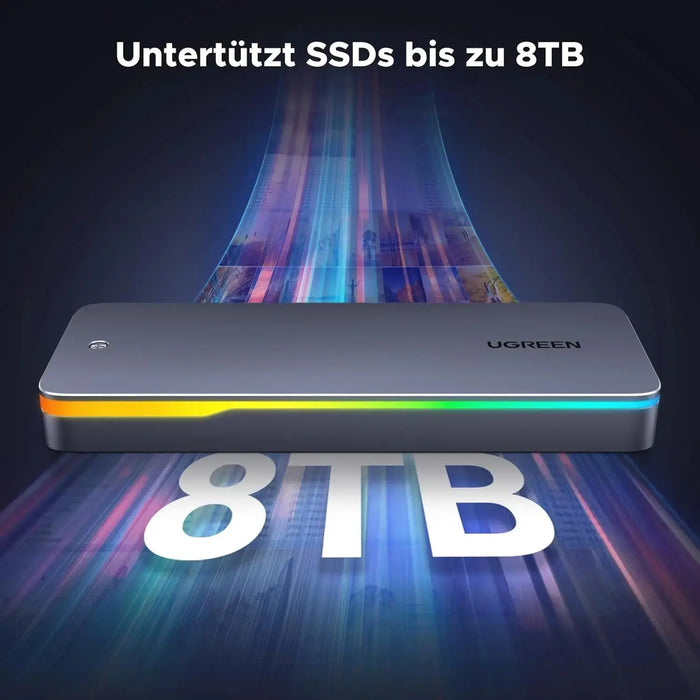

- Listed storage ceiling: up to 8TB for this model, subject to SSD, host, partition and filesystem support.
- Bridge functions: UASP, TRIM and automatic sleep are listed but depend on the host OS, filesystem, USB path and SSD exposing them.
Drive key, protocol and host-link map
Know the connector roles
M.2 describes a physical card format; it does not guarantee that two drives use the same electrical protocol. Read the SSD label or specification before installation.

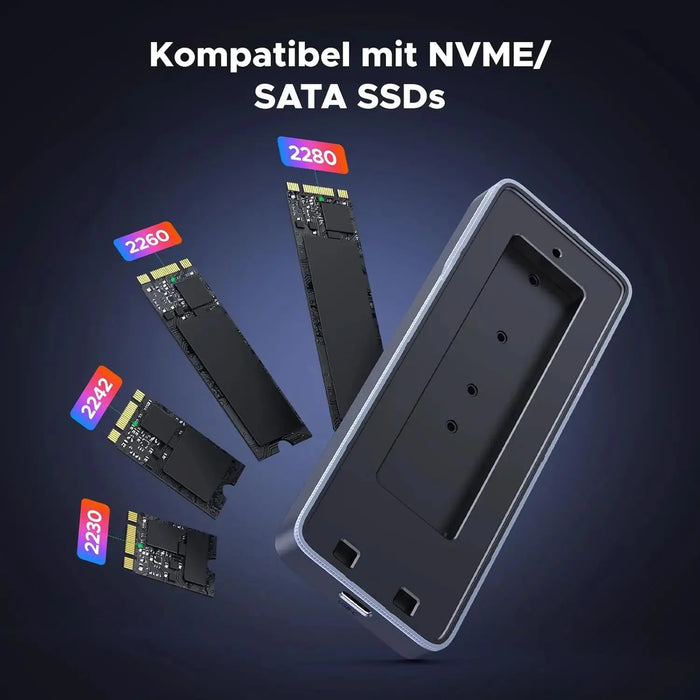

- M-key PCIe drive: supported as an NVMe/AHCI PCIe M.2 SSD when its length is 2230, 2242, 2260 or 2280.
- B+M-key PCIe drive: supported when it is a compatible PCIe/NVMe device; verify its protocol because the same notch pattern can be used differently.
- B+M-key SATA drive: supported as an M.2 SATA SSD; its transfer ceiling is lower than NVMe even on a 20Gbps USB host.
- USB-C receptacle: is the enclosure’s host/data port and uses the included USB-C-to-C cable.
- USB 20Gbps route: requires USB 3.2 Gen 2x2 support at the host. Thunderbolt branding or USB-C shape does not by itself guarantee this mode.
- Thermal pad and shell: must contact the SSD correctly so heat can spread into the metal body.
- One-drive design: the bridge addresses one installed SSD and does not create RAID, duplication or multi-drive spanning.
Use scenarios
Where it makes sense
The enclosure suits one removable M.2 drive when speed, portability and support for either NVMe or SATA are more important than multi-drive features.
- Build fast external project storage around a compatible NVMe SSD and a USB 3.2 Gen 2x2 computer port.
- Reuse an M.2 SATA SSD from an older computer after confirming the B+M key and SATA protocol on its label.
- Transfer photos or video between compatible computers, tablets or phones when the mobile host can power and mount external USB storage.
- Clone or migrate a system drive with separately obtained software and a second independently connected source/destination.
- Use as supported external storage for a console or handheld only within that platform’s formatting and game-location rules.
- Perform backup, file transport and drive diagnostics while recognising that low-level health, secure erase and firmware commands may not pass through every USB bridge.
Setup and usability guidance
A dependable first connection
Install the SSD while the enclosure is fully disconnected. Protect the card from static and never force an M.2 edge into the socket.
- Read the SSD label/specification to confirm NVMe/PCIe or M.2 SATA protocol, supported key and one of the four accepted lengths.
- Disconnect the enclosure from every host, open the housing as shown, and handle the SSD only by its edges.
- Insert the M.2 card into the socket at a shallow angle with the notch aligned, then lower it to the correct 2230/2242/2260/2280 fixing point.
- Fit the supplied thermal interface material so it contacts the main SSD components without folding over the connector.
- Close the aluminium housing securely; do not operate the board loose or leave conductive parts exposed.
- Connect the included USB-C cable directly to a known data-capable host port. A charging-only port/cable cannot provide storage access.
- If the drive is new, initialise, partition and format it in the intended system. Stop if the disk contains data you need.
- Before unplugging, close applications, eject/unmount the volume and wait until file operations have completed even if the RGB light remains on.
Compatible devices and systems
Match the whole chain
Successful use requires a supported M.2 drive, host-mode USB port, data-capable cable, adequate bus power and a filesystem understood by the host.
- M.2 PCIe NVMe SSDs with M-key or compatible B+M-key edge in 2230/2242/2260/2280 length.
- M.2 SATA SSDs with compatible B+M-key edge in 2230/2242/2260/2280 length.
- USB-C computers that support USB mass storage; 20Gbps requires explicit USB 3.2 Gen 2x2 host support.
- Many Mac computers at up to the listed 10Gbps host ceiling for this enclosure, subject to model and OS behavior.
- Compatible Windows, macOS, Linux, Android, iPadOS and iOS hosts when they support external USB storage, the installed filesystem and required bus power.
- Consoles such as PS5 only within the console’s external-USB storage rules; the enclosure is not an internal PS5 M.2 expansion heatsink.
- Drives up to the listed 8TB ceiling, subject to controller, partition table, filesystem and host implementation.
What this product does
Capabilities
- Houses one compatible M.2 PCIe NVMe or M.2 SATA SSD behind a USB-C storage bridge.
- Negotiates up to USB 3.2 Gen 2x2 20Gbps with a truly compatible host and cable.
- Supports all four common M.2 lengths from 2230 through 2280.
- Transfers heat through thermal material into an aluminium enclosure body.
- Lists UASP, TRIM and automatic sleep features when the complete software and hardware chain supports them.
- Provides RGB illumination and a portable closed housing for an installed drive.
What this product does not do
Clear boundaries
- It does not include an M.2 SSD or create extra storage without a separately purchased compatible drive.
- It does not make every USB-C or Thunderbolt port operate at 20Gbps; the host must explicitly support USB 3.2 Gen 2x2.
- It does not guarantee a Mac link above the stated 10Gbps ceiling.
- It does not support mSATA, 2.5-inch SATA, PCIe add-in cards or proprietary Apple blade SSDs.
- It does not provide RAID, independent cloning, a second drive bay or guaranteed hot swapping.
- It does not guarantee external boot support; firmware, OS, encryption and installation configuration decide bootability.
- It does not guarantee TRIM, UASP, SMART, secure erase or firmware-update pass-through in every operating system and application.
What to do
Good practice
- Verify protocol, key, length and capacity on the SSD label before opening the enclosure.
- Install the thermal pad correctly and keep the shell unobstructed during sustained transfers.
- Use the included cable and a direct Gen 2x2 host port when testing maximum available performance.
- Eject/unmount before disconnection and keep reliable backups of important data.
- Use a filesystem suited to every intended host, or maintain separate volumes when platform requirements differ.
- Test the empty enclosure/installed drive on one known computer before introducing hubs, docks, phones or consoles.
What not to do
Avoid these mistakes
- Do not insert an unsupported M.2 card because its length or notch appears similar.
- Do not touch SSD contacts, force the socket, operate the open board on metal or install while USB is connected.
- Do not peel away or omit the thermal interface material for high-load use, and do not cover the hot enclosure with fabric.
- Do not unplug during writes, formatting, cloning, firmware work or filesystem repair.
- Do not call USB-C shape, Thunderbolt compatibility or a high-watt charger proof of a 20Gbps data path.
- Do not assume a console or phone can run every file format, application or game directly from external storage.
Warnings and limitations
Important safety and performance notes
Fast SSDs can become hot, and storage errors can destroy data. Warmth is normal; abnormal heat, repeated disconnection or a burning smell is not.
- The enclosure surface can become noticeably warm while moving large files because the body is part of the thermal path.
- Sustained speed can fall when the SSD, bridge or host thermally throttles; this is different from the advertised interface ceiling.
- USB bus power varies by host. Phones, tablets and unpowered hubs may not provide enough current for every high-performance SSD.
- Automatic sleep, TRIM and UASP depend on system support and may behave differently across filesystems, virtual machines and console platforms.
- Formatting or initialising permanently changes disk metadata. Identify the correct device before approving any operation.
- No hot-swap promise is retained. Always eject, wait for activity to finish and disconnect before opening or replacing the SSD.
- Keep the enclosure dry, do not open it while powered and stop use if the USB socket, cable or housing becomes damaged.
Care, troubleshooting and buying checklist
Keep it working and solve common issues
Read the negotiated link and disk state separately. A drive can be detected at 10Gbps or less and still function normally.
- SSD not detected: reopen the unpowered enclosure, verify the M.2 protocol/key, reseat the card and test a direct computer port.
- Visible in disk utility only: the SSD may need a partition and compatible filesystem; do not format it if it contains needed data.
- Link limited to 10Gbps: verify that the host explicitly supports USB 3.2 Gen 2x2. Many Mac ports do not expose that USB mode.
- Disconnects under load: test the included cable, a direct host port, thermal pad contact and another known-compatible SSD.
- Very slow small files: compare a large-file transfer; filesystem overhead, encryption, caches and SSD media behavior can dominate.
- Phone or tablet cannot mount it: check host-mode support, available power, filesystem support and any required Files app permissions.
- Buying check: confirm M.2 NVMe or M.2 SATA, accepted key/length, desired host link, filesystem and whether the host can supply adequate power.
Technical specifications
Model details
Brand / SKU
UGREEN / 25665
Product type
USB-C enclosure for one M.2 SSD
Supported protocols
M.2 PCIe NVMe and M.2 SATA
Supported keys
M-key and compatible B+M-key as appropriate to protocol
Supported lengths
2230 / 2242 / 2260 / 2280
Host connector
USB-C
USB standard
USB 3.2 Gen 2x2
Maximum host-link ceiling
Up to 20Gbps theoretical on a Gen 2x2 path
Mac guidance
Up to 10Gbps as listed for this enclosure
Maximum listed SSD capacity
Up to 8TB, subject to host and filesystem
Bridge functions
UASP, TRIM and automatic sleep listed; chain support required
Thermal design
Aluminium housing with thermal interface material
Lighting
Integrated RGB light strip
Installed drives
One
RAID / standalone cloning
Not provided
Hot-swap / boot
Not guaranteed; host and system dependent

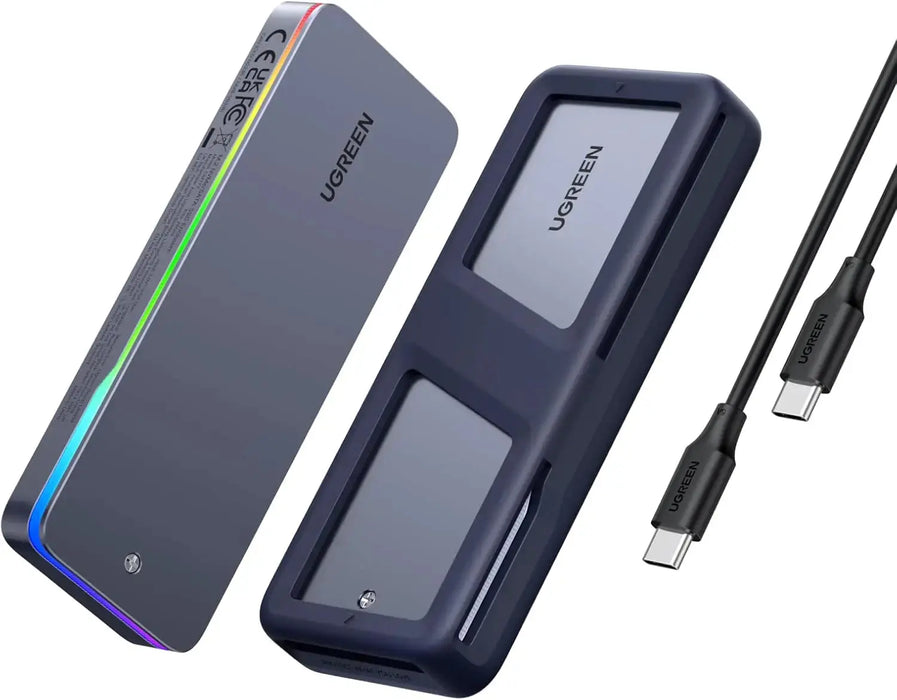

In the box
Package contents
- 1 × UGREEN 25665 M.2 SSD enclosure
- 1 × USB-C to USB-C data cable
- Thermal/installation pieces supplied with the enclosure
- 1 × user documentation set
- M.2 SSD, USB-A adapter, phone, computer and console are not included
