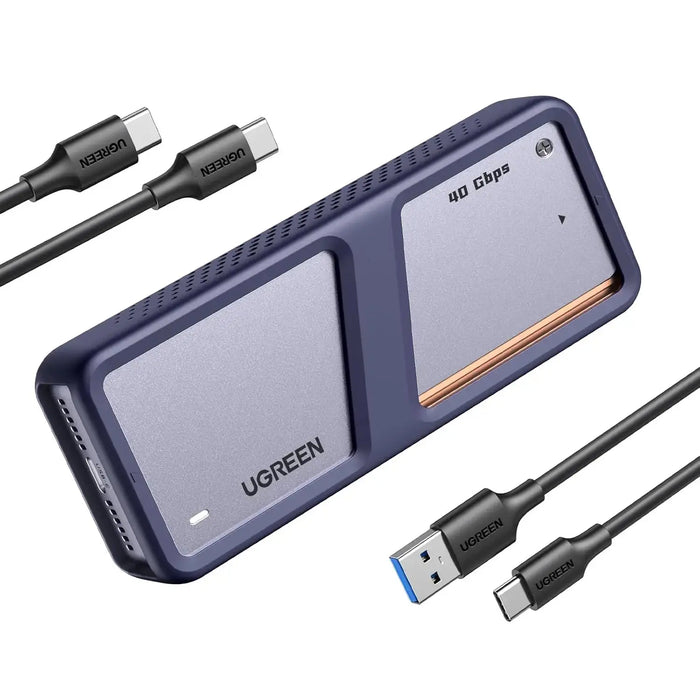

UGREEN 15976 USB4 40Gbps M.2 NVMe Enclosure with Fan
Overview
UGREEN 15976 houses one compatible M.2 PCIe NVMe SSD and connects it to USB4 or Thunderbolt 3/4 hosts with active fan-assisted cooling. The guide below separates drive protocol, physical size, host link and real-world limits so buyers can choose safely without confusing SATA, M.2 and NVMe.
- USB4 • 40GBPS-CLASS • ACTIVE COOLING
- SKU 15976
What it does well.
Key features
Storage role. houses one compatible M.2 PCIe NVMe SSD and connects it to USB4 or Thunderbolt 3/4 hosts with active fan-assisted cooling.
Supported drive. M.2 PCIe NVMe SSD, M-key or NVMe B+M-key, sizes 2230/2242/2260/2280.
Connection path. USB-C enclosure port; supplied USB-C-to-USB-C and USB-C-to-USB-A cables; internal M.2 PCIe NVMe.
Thermal and controller design.
Understand the complete storage path
1. The drive. M.2 PCIe NVMe SSD, M-key or NVMe B+M-key, sizes 2230/2242/2260/2280.
2. Internal bus. M.2 PCIe NVMe. This is the protocol used between the installed drive and bridge.
3. Enclosure bridge.
4. Host connection. USB-C enclosure port; supplied USB-C-to-USB-C and USB-C-to-USB-A cables. The host port, cable and any hub must support the required data mode.
Do not shop by shape alone: not for M.2 SATA/NGFF, mSATA, 2.5-inch SATA, 3.5-inch SATA or an SSD with a permanently attached oversized heatsink. An M.2 notch does not by itself identify SATA versus NVMe, and a USB-C connector does not guarantee USB4 or 10Gbps.

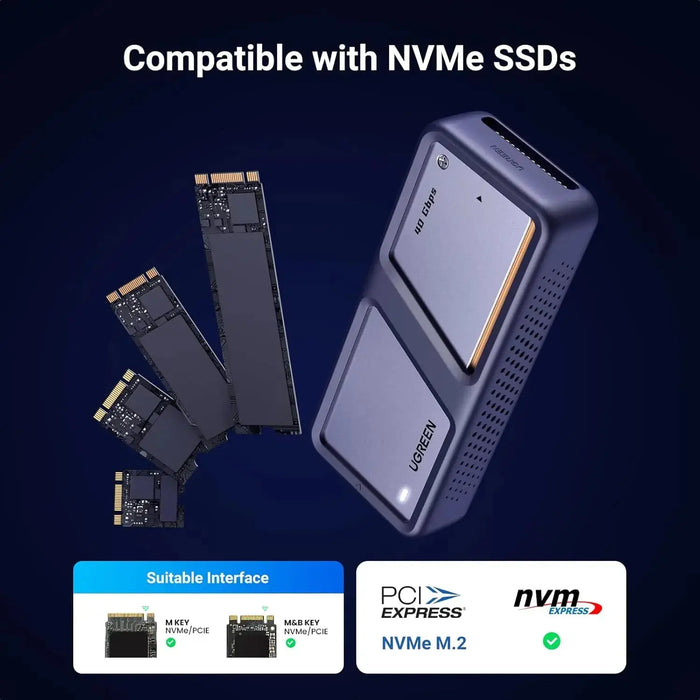

Drive compatibility: form factor, key and capacity
Compatible: M.2 PCIe NVMe SSD, M-key or NVMe B+M-key, sizes 2230/2242/2260/2280.
Not compatible: not for M.2 SATA/NGFF, mSATA, 2.5-inch SATA, 3.5-inch SATA or an SSD with a permanently attached oversized heatsink.
Capacity guidance: The live India text states 2TB tested; current regional UGREEN pages may list higher capacities, so 2TB tested is the conservative India-specific guidance.
Brand examples are not enough: the same SSD brand can sell SATA and NVMe products under similar names. Check this model’s protocol, dimensions, key and any pre-installed heatsink before purchase.

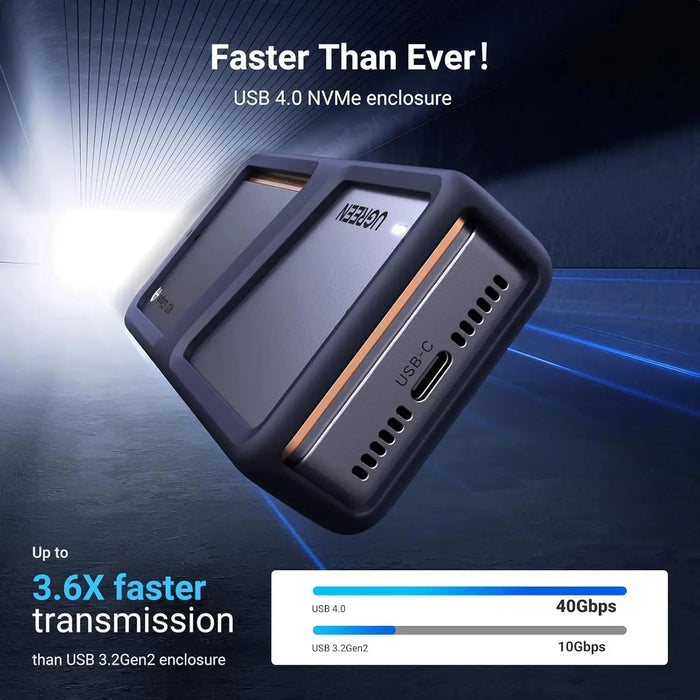

Performance reality: link rate versus file speed
40Gbps is the theoretical USB4 link rate, not guaranteed file-copy throughput. USB 3.2 Gen 2 hosts are limited to 10Gbps-class operation, and USB-A cannot provide the 40Gbps USB4 path. SSD, thermal state, host PCIe/USB implementation and workload all matter.
- Large sequential files usually transfer faster than folders containing thousands of small files.
- HDD mechanics, SSD cache exhaustion, encryption, antivirus scanning and thermal throttling can dominate the result.
- UASP, TRIM and S.M.A.R.T. require compatible drive, bridge, host controller, operating system and software; a feature label does not force every host to expose it.
- Backward compatibility means operation at the slower negotiated link; it does not preserve the headline speed.
Use scenarios
High-speed project workspace. Use a compatible SSD for large photo, video or development files while remembering that external-link and thermal ceilings remain.
Laptop storage expansion. Add removable solid-state capacity without opening the host computer after the SSD is correctly installed and formatted.
Migration and upgrade staging. Copy data between an old system and a new drive using trusted cloning or backup software; the enclosure itself does not clone.
Backups and archives. Build a scheduled backup target, then keep a second independent copy. An enclosure is storage hardware, not a complete backup strategy.
Drive inspection. Read a removed drive on another computer when the drive is electrically healthy, unlocked and formatted in a file system the host understands.
Setup and usability guidance
Critical distinction: “Not visible in File Explorer/Finder” does not automatically mean hardware failure. A blank, offline, encrypted, unsupported or unmounted disk can appear only in the system disk utility.
- Step 1: Disconnect the enclosure from every host. Identify the SSD protocol from its label or manufacturer data sheet—not only its notch pattern.
- Step 2: Open the housing as shown in this product instructions. Insert the M.2 edge connector at a slight angle, seat it fully and secure the correct 2230/2242/2260/2280 position without bending the PCB.
- Step 3: Apply the supplied thermal pad exactly over the controller/NAND contact area and close the housing. Do not stack thermal pads or leave protective film in place.
- Step 4: Connect the supplied data cable directly to a suitable host port. Avoid unpowered hubs during first detection.
- Step 5: If the drive is new, open the operating system’s disk utility, verify the correct disk by capacity/model, then initialise, partition and format it. Formatting erases data.
- Step 6: If the drive already contains data, do not initialise or format it merely because the host prompts you. First check encryption, file system, health and the original machine.
- Step 7: Before disconnecting, finish all transfers, eject or safely remove the volume in the operating system, wait for activity to stop and then unplug or switch off.
Migration, cloning and data-recovery planning
Before migration. Back up irreplaceable files separately. Record encryption/recovery keys and confirm source and target health before changing partitions.
Cloning is software-driven. This enclosure exposes one drive; it has no standalone clone button. Use trusted software and verify the copy before erasing the original.
Booting is not guaranteed. External boot depends on the computer firmware, operating system, security policy, partition scheme and licensing—not just the enclosure.
Recovery has limits. An enclosure cannot repair failed heads, damaged NAND, controller faults, corrupted encryption or severe file-system damage. Repeated retries can worsen a failing drive.
Compatible devices and systems
Listed/class: Windows, macOS, Linux and Android are listed; USB4/Thunderbolt capability and software support vary by host.
Computers. Most modern systems support USB mass storage, but file-system write support differs across Windows, macOS and Linux.
Phones and tablets. A matching connector is insufficient: the mobile host must support USB OTG/mass storage, the chosen file system and the enclosure’s power demand.
TVs, routers and consoles. Check the device manual for USB generation, file system, partition table, maximum capacity and whether formatting is mandatory.
Hubs and adapters. An extra hub or converter can reduce speed or power stability. Test directly on the host before diagnosing the enclosure.
What this product does
- Houses one compatible M.2 PCIe NVMe SSD and connects it to USB4 or Thunderbolt 3/4 hosts with active fan-assisted cooling.
- Provides the path: M.2 PCIe NVMe to USB-C enclosure port; supplied USB-C-to-USB-C and USB-C-to-USB-A cables.
- Supports the drive boundary: M.2 PCIe NVMe SSD, M-key or NVMe B+M-key, sizes 2230/2242/2260/2280.
- Exposes the drive to a compatible host for normal file access, formatting, backup, migration or supported cloning software.
What this product does not do
- Not for M.2 SATA/NGFF, mSATA, 2.5-inch SATA, 3.5-inch SATA or an SSD with a permanently attached oversized heatsink.
- It does not include an SSD/HDD or add capacity by itself.
- It does not guarantee the theoretical link rate as sustained file throughput.
- It does not bypass passwords, BitLocker/FileVault encryption, permissions or unsupported file systems.
- It does not repair a failing drive, replace a backup, provide RAID or perform unattended offline cloning.
- It does not make a host support capacities, formats or game-install rules that the host manufacturer excludes.
What to do
Verify the drive. Read the drive label/data sheet for protocol, physical size, key and thickness before opening the enclosure.
Use the supplied path. Start with USB-C enclosure port; supplied USB-C-to-USB-C and USB-C-to-USB-A cables. Connect directly to a known-good host data port.
Protect the thermal path. Install pads as directed, keep vents clear and allow airflow during sustained transfers.
Eject and keep backups. Safely remove before unplugging and maintain at least one independent copy of important data.
What not to do
Do not force connectors. Misaligned SATA or M.2 connectors can be damaged by surprisingly little force. Recheck orientation and protocol.
Do not format blindly. If a host asks to initialise or erase an existing drive, stop until you know why and have a backup.
Do not unplug during activity. Removing USB or power during writes can corrupt files, file systems or the drive translation layer.
Do not block cooling. Do not wrap, stack or operate on soft insulating surfaces during sustained transfer.
Warnings and limitations
Data first: an enclosure can expose a drive; it cannot guarantee the integrity of the data already on it. Keep independent backups before migration, repartitioning or firmware work.
Power: bus power depends on the host. If detection resets under load, remove unpowered hubs and use the supplied cable on a stronger direct port.
Heat: warmth can be normal, especially with NVMe. Stop use for smoke, burning smell, deformation, liquid ingress, repeated drop-outs or abnormal mechanical HDD sounds.
Handling: protect bare drives from electrostatic discharge; hold an SSD by its edges, avoid touching gold contacts and never move a spinning 3.5-inch HDD roughly.
Removal: wait for all writes, eject in the OS, allow the activity indicator to settle, then disconnect. Auto-sleep is not a substitute for safe removal.
Troubleshooting guide
No device at all. Disconnect, power down, reseat the drive and retest with the supplied cable directly on another known-good host data port. Verify the drive protocol and orientation.
Enclosure detected, no volume. Open Disk Management/Disk Utility. A new disk may need initialisation; an old disk may be offline, encrypted or use an unsupported file system. Do not erase valuable data.
Slower than expected. Confirm negotiated USB mode, remove slow hubs, use the supplied cable, test a large file and check SSD/HDD health, cache and temperature. Link rate is not file speed.
Disconnects under load. Check cable seating, direct-port power, thermal-pad placement and airflow. For SKU 50422, use the supplied 12V/2A adapter. Stop if the drive reports health errors.
Read-only or permission errors. Check write protection, ownership, encryption and file-system support. macOS and Windows do not natively write every file system used by the other.
Console/TV asks to format. That host may require its own partition and file system. Formatting erases the drive; move needed data elsewhere first and review the host manual.
At a glance.
- Brand / SKU
- UGREEN 15976
- Product role
- houses one compatible M.2 PCIe NVMe SSD and connects it to USB4 or Thunderbolt 3/4 hosts with active fan-assisted cooling
- Supported drive
- M.2 PCIe NVMe SSD, M-key or NVMe B+M-key, sizes 2230/2242/2260/2280
- Excluded drive types
- not for M.2 SATA/NGFF, mSATA, 2.5-inch SATA, 3.5-inch SATA or an SSD with a permanently attached oversized heatsink
- Capacity
- The live India text states 2TB tested; current regional UGREEN pages may list higher capacities, so 2TB tested is the conservative India-specific guidance
- Internal interface
- M.2 PCIe NVMe
- Host connection
- USB-C enclosure port; supplied USB-C-to-USB-C and USB-C-to-USB-A cables
- Nominal link
- USB4 up to 40Gbps with a compatible host and full-featured cable; lower on USB 3.x or USB-A
- Performance note
- 40Gbps is the theoretical USB4 link rate, not guaranteed file-copy throughput. USB 3.2 Gen 2 hosts are limited to 10Gbps-class operation, and USB-A cannot provide the 40Gbps USB4 path. SSD, thermal state, host PCIe/USB implementation and workload all matter.

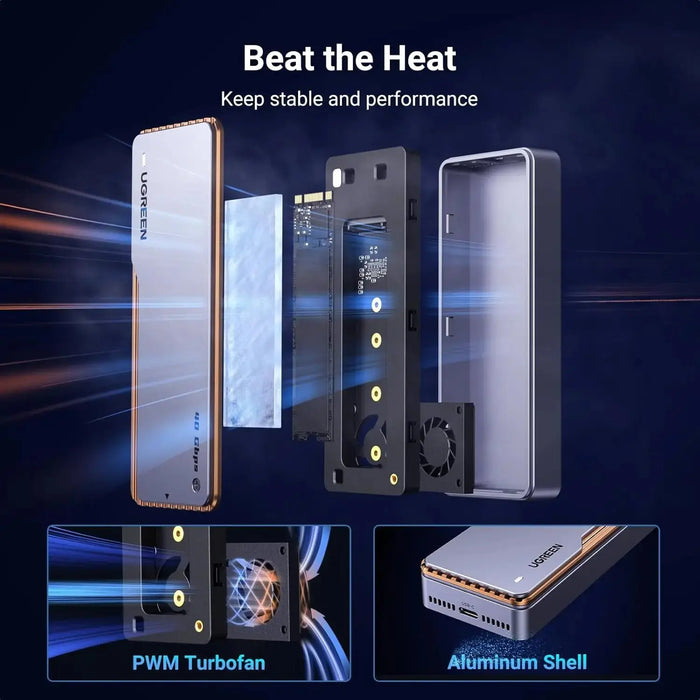

- Housing / thermal design
- Aluminum-alloy enclosure, silicone thermal pad, external silicone protective sleeve and internal PWM fan
- Storage features
- UASP, TRIM, S.M.A.R.T. pass-through, auto-sleep and PWM cooling; monitoring features depend on OS and utility support
- Cable
- USB-C-to-USB-C for the fastest compatible path; USB-C-to-USB-A for broad fallback at a lower link ceiling
- System/device class
- Windows, macOS, Linux and Android are listed; USB4/Thunderbolt capability and software support vary by host
1 Ă— UGREEN 15976 enclosure with fan, 1 Ă— USB-C-to-USB-C cable, 1 Ă— USB-C-to-USB-A cable, 1 Ă— external silicone sleeve, 1 Ă— thermal pad, 1 Ă— screwdriver, 1 Ă— user guide; SSD is not included
No host computer, phone, tablet, console, TV, router, SSD/HDD, cloning software or data-recovery service is included unless explicitly named above.
