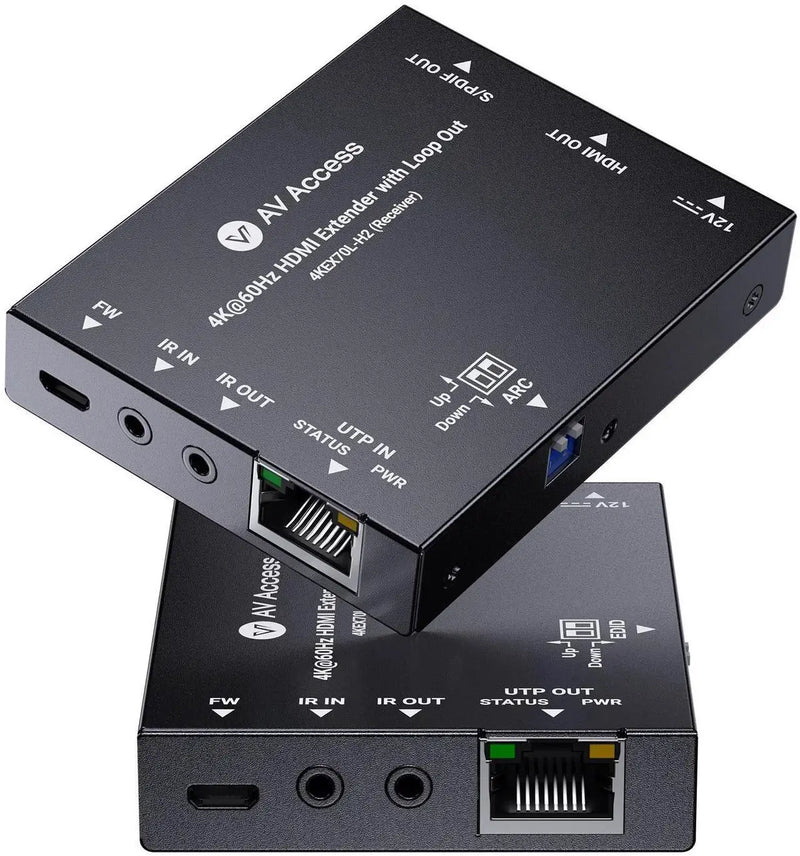

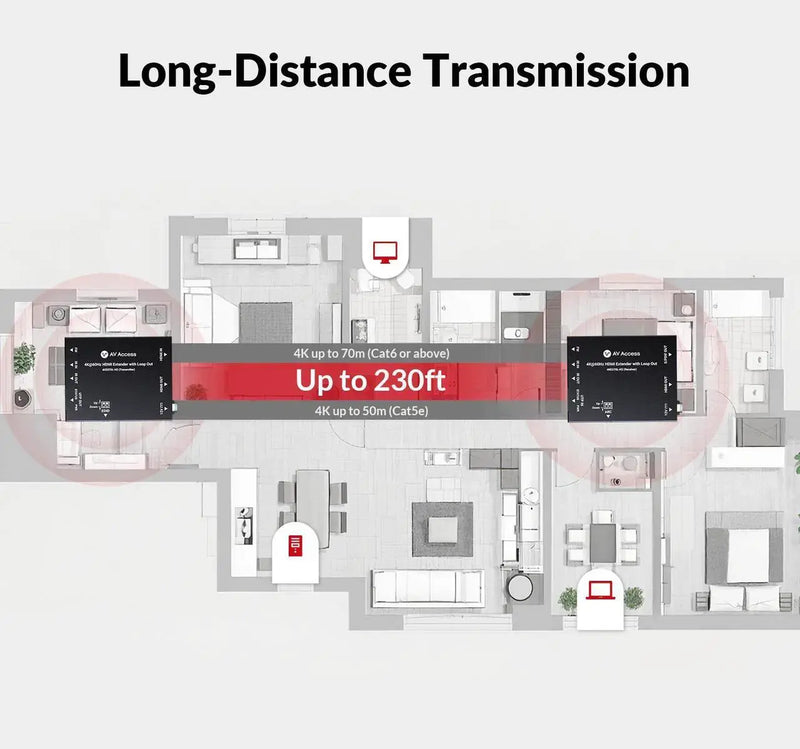

AV Access 4KEX70L-H2 4K@60Hz HDMI Over Ethernet Extender Over Cat6/7 Upto 70m/230ft with Loop Out, Supports 4K 4:4:4, HDR10, HDCP 2.3, Doby Atmos, DTS:X, Bi-Directional IR, PoC, EDID & ARC Switch
4K@60Hz 4:4:4 Ultra HD Video Over a Single Cable: Deliver stunning 4K@60Hz 4:4:4 8-bit video over a single Cat6/6A/7 cable up to 70m/230ft, ensuring sharp, color-accurate images for conference rooms, classrooms, digital signage, and home theater setups.
HDCP 2.3 & Multichannel Audio Support: Fully compatible with the latest HDCP 2.3 standard and supports PCM 7.1, Dolby Atmos, and DTS:X, making it ideal for professional AV distribution and immersive audio applications.
Bi-Directional IR Passthrough for Full Remote Control: Control your source or display from either end of the extender using the included IR emitter and broadband IR receiver (3050 kHz), enabling seamless remote operation in AV installations.

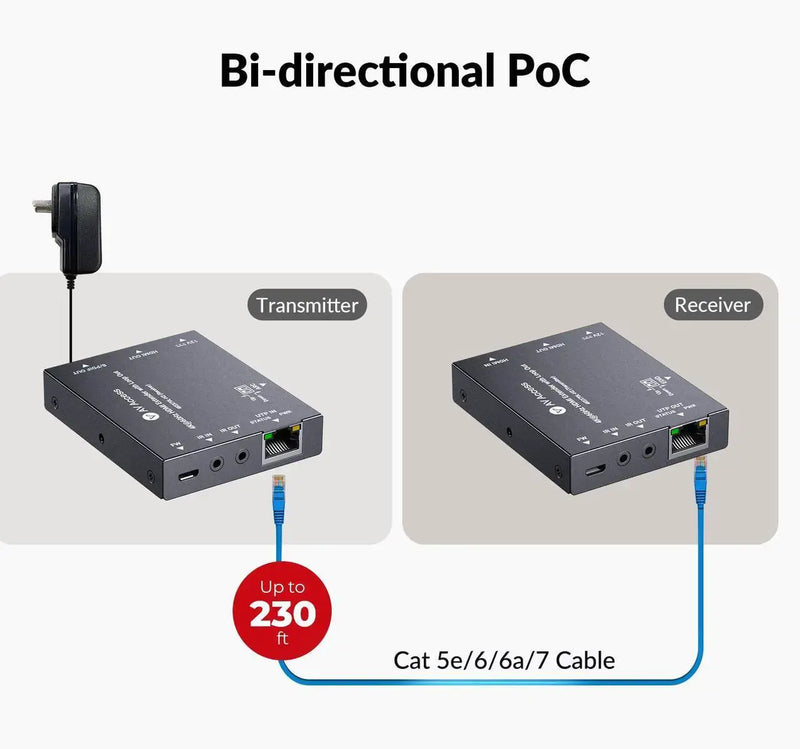

One-Cable Power via Bi-Directional PoC: Only one power adapter is required at either the transmitter or receiver. Bi-directional PoC reduces wiring complexity and makes the system easier to deploy in tight or concealed mounting environments.

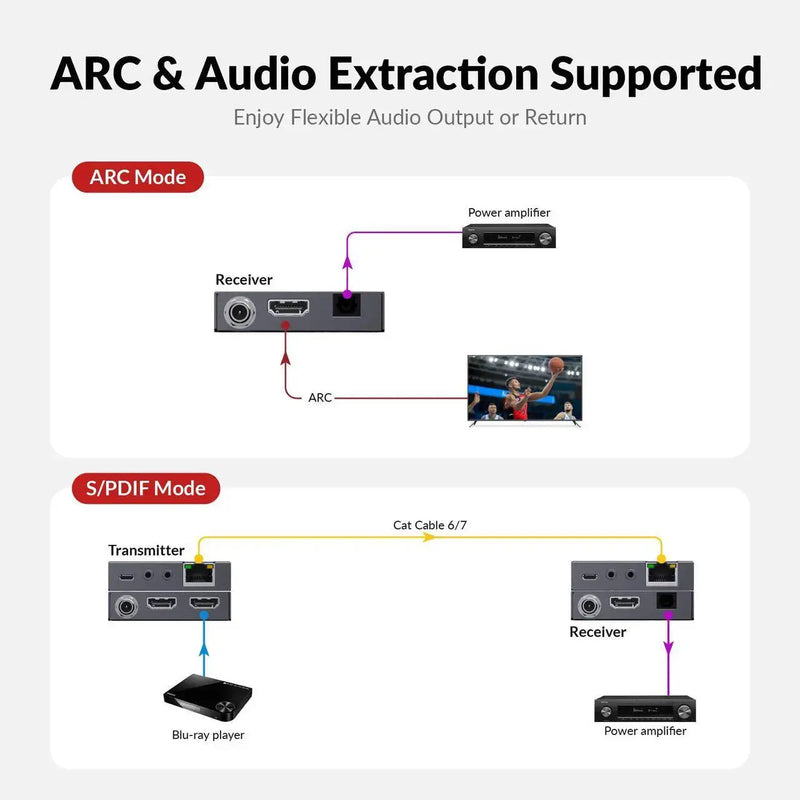

EDID & ARC Hardware Switches for Easy System Integration: Fine-tune device compatibility using the built-in EDID and ARC configuration switchesideal for AV integrators who need reliable handshake control and flexible audio routing.
Package Contents:
- Extender Set, Power Adapter (DC 12V 1A) x 1
- IR Emitter x 1
- Broadband IR Receiver (30-50 kHz) x 1
- Mounting Brackets (with Screws) x 4
- User Manual x 1.
