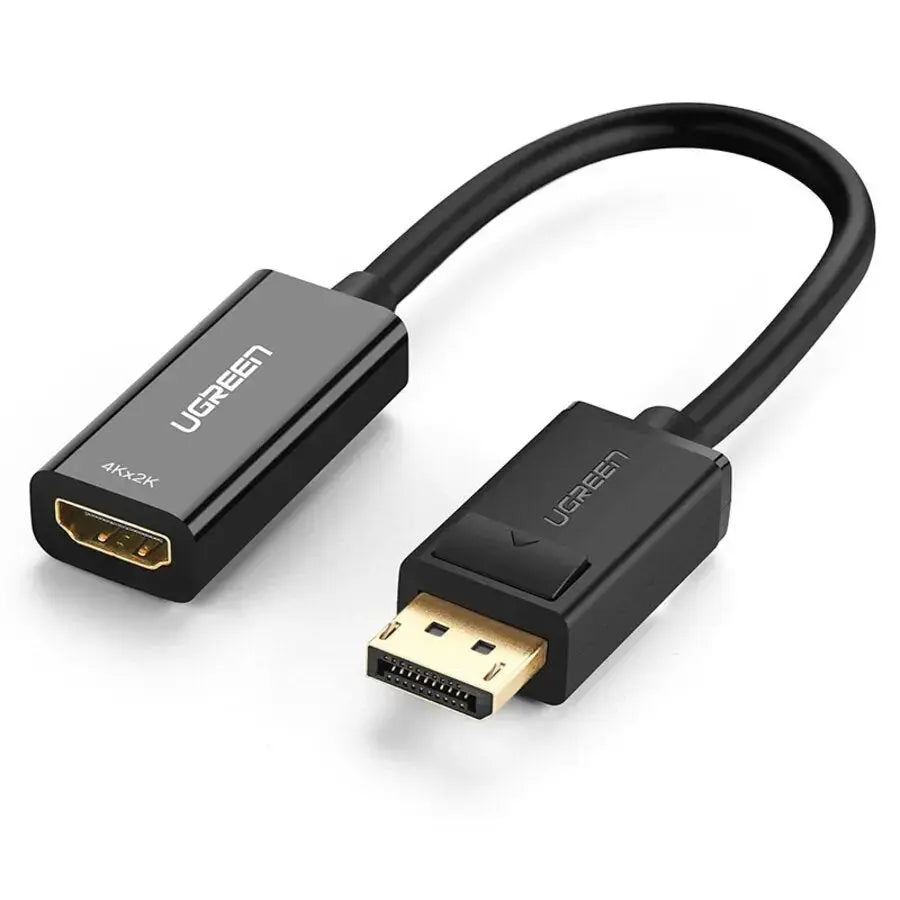

UGREEN MM137 DisplayPort to HDMI Adapter, DP Male to HDMI Female Active Converter, 1080p@60Hz – 40362
Convert a Computer DisplayPort Output into an HDMI Connection
Insert the DisplayPort male plug into a compatible desktop computer, laptop, workstation or graphics card. Connect a separate HDMI cable to the adapter’s HDMI female socket and then connect the other end to an HDMI monitor, television or projector.
What it does well.
This Adapter Does Not Work from HDMI to DisplayPort
Signal conversion works only from a DisplayPort-equipped source to an HDMI-equipped display. It cannot connect an HDMI-output laptop, console or streaming device to a DisplayPort monitor.
Correct Connection.
- Computer DisplayPort output → UGREEN adapter
- UGREEN adapter → separate HDMI cable
- HDMI cable → monitor, TV or projector
- Do not connect an HDMI source to the HDMI female socket
- HDMI-to-DisplayPort use requires a different powered converter
Clear 1920 × 1080 Video at up to 60Hz
The adapter supports Full HD output up to 1080p at 60Hz for compatible monitors, televisions and projectors. It is suitable for documents, presentations, videos, web browsing, office applications and everyday desktop use.
Carry Compatible DisplayPort Audio through HDMI
The adapter can transmit digital video and compatible audio together, including supported LPCM audio. This allows sound to play through an HDMI television, monitor, projector or connected audio system when the source computer provides DisplayPort audio.
Audio Requirements.
- The computer’s DisplayPort output must support audio.
- The HDMI display must include speakers or audio output.
- Select the HDMI display as the audio device in system settings.
- The adapter does not generate audio independently.
- Audio format support depends on the complete connection.
Duplicate the Main Screen or Create a Second Workspace
Compatible computers can use their normal display settings to mirror the primary screen or extend the desktop onto the connected HDMI display.
Mirror Mode. Display the same presentation, video or application on both the computer and the external screen.
Extended Mode. Use the HDMI monitor or projector as an additional desktop for separate applications and windows.
Connect the Adapter without Installing Additional Software
1. Connect DP. Insert the DisplayPort plug into the source computer or graphics card.
2. Add HDMI Cable. Connect a separate HDMI male cable to the HDMI female socket.
3. Connect Display. Connect the HDMI cable to the monitor, television or projector.
4. Select Display Mode. Choose mirror or extended mode in the computer’s display settings.

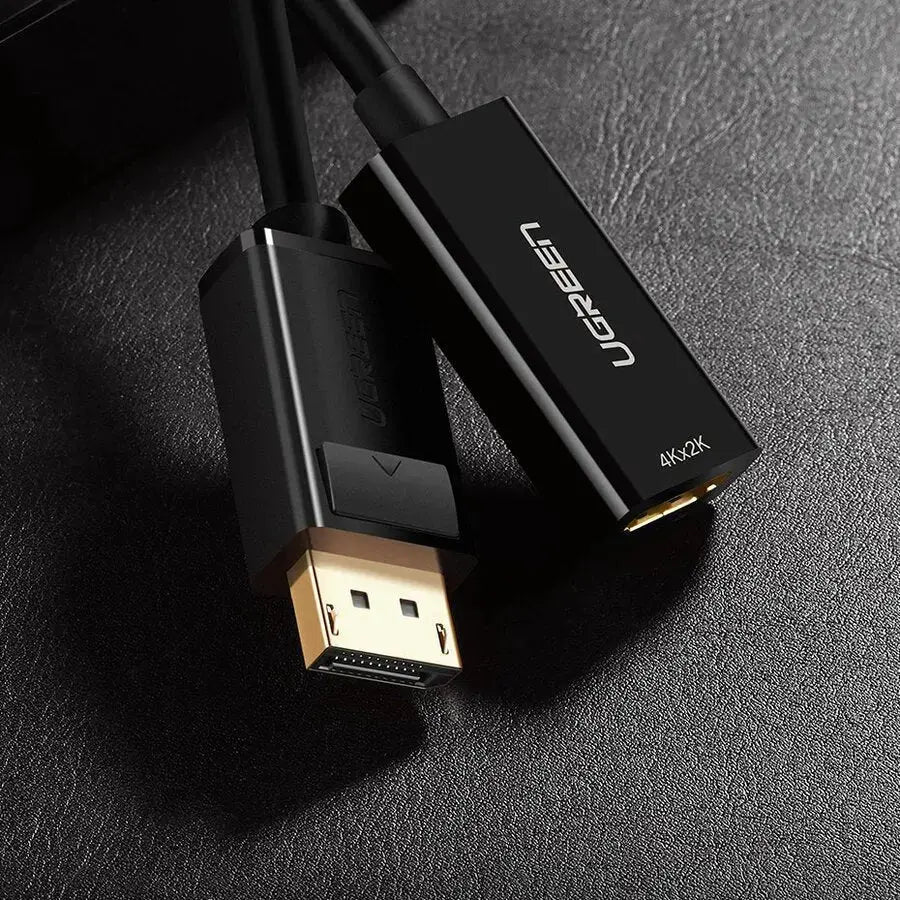

Gold-Plated Contacts and Reinforced Adapter Housing

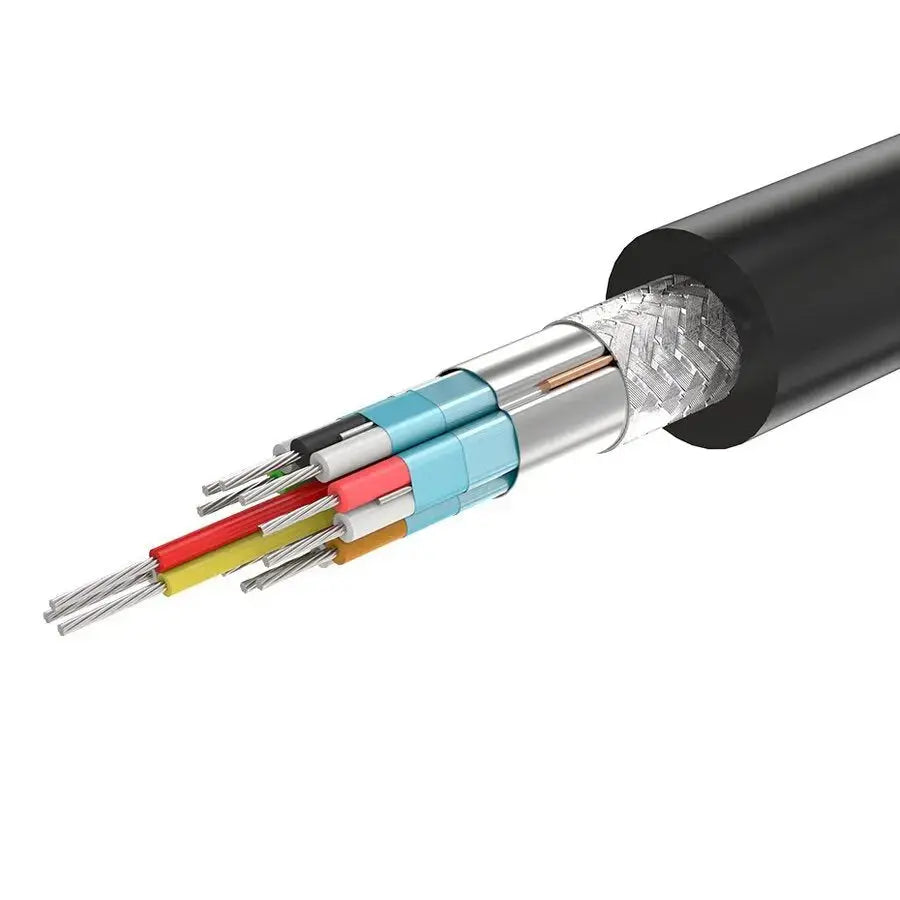

Gold-plated connector surfaces help resist corrosion and maintain consistent contact. The short flexible cable reduces direct strain on the computer’s DisplayPort socket, while the moulded housing protects the internal conversion electronics.
- Gold-plated DisplayPort connector
- Gold-plated HDMI female socket
- DisplayPort release-button design
- Flexible short adapter cable
- ABS/PVC moulded construction
- Compact travel-friendly size
Connect PCs, Workstations and Graphics Cards to HDMI Displays
The adapter is designed for source devices with a full-size DisplayPort output and display devices with a standard HDMI input. Compatibility depends on the source’s DisplayPort capabilities and the display’s supported resolution.
Desktop PCs. Connect a compatible desktop DisplayPort output to an HDMI display.

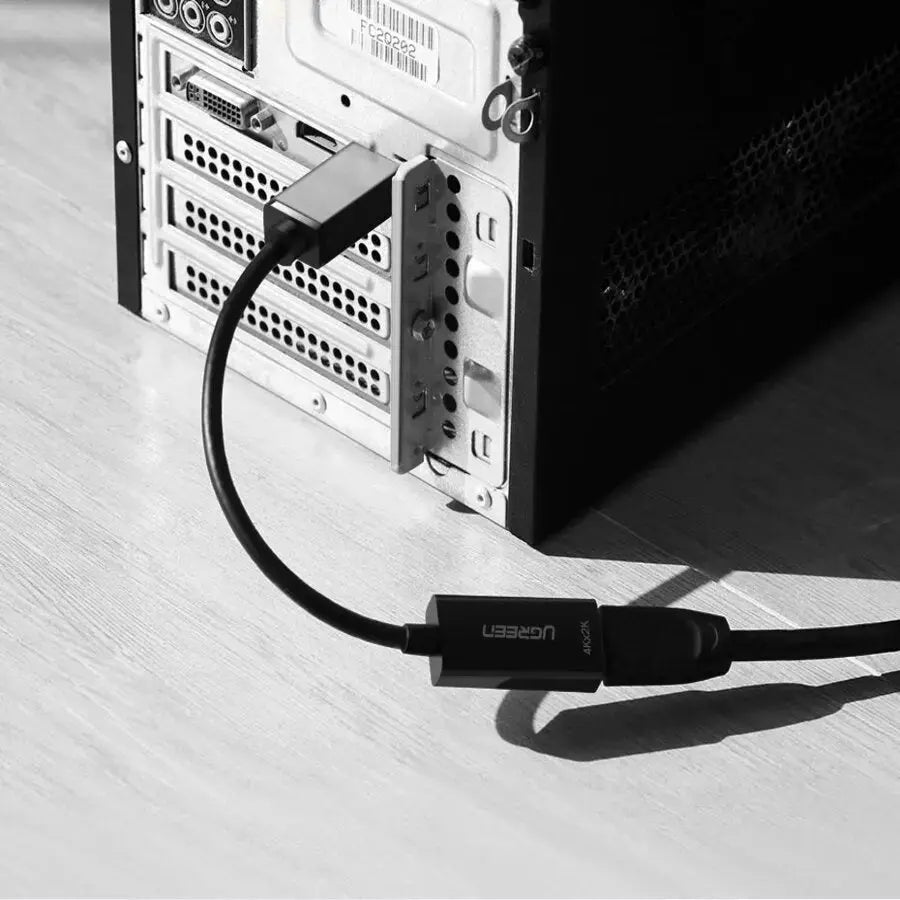

Graphics Cards. Use an available full-size DisplayPort output on a compatible GPU.
Business Laptops. Suitable for laptops and docking stations fitted with full-size DisplayPort output.
HDMI Monitors. Connect office and home monitors with standard HDMI input.

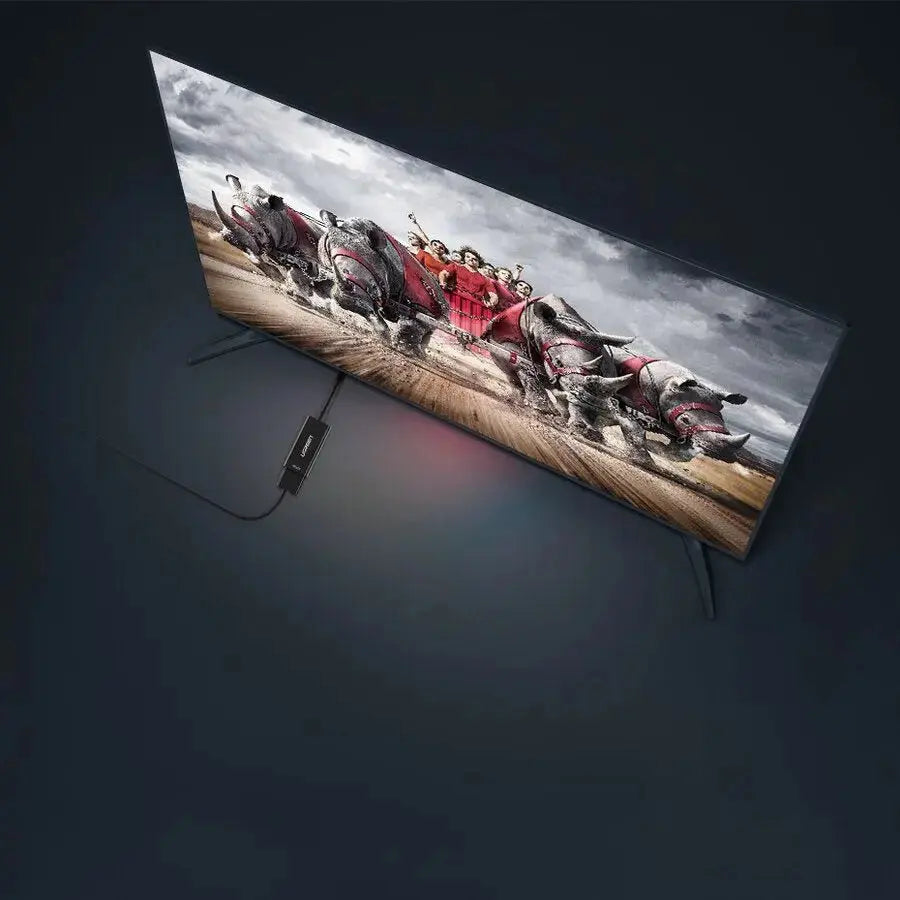

Televisions. Display computer content on compatible Full HD televisions.

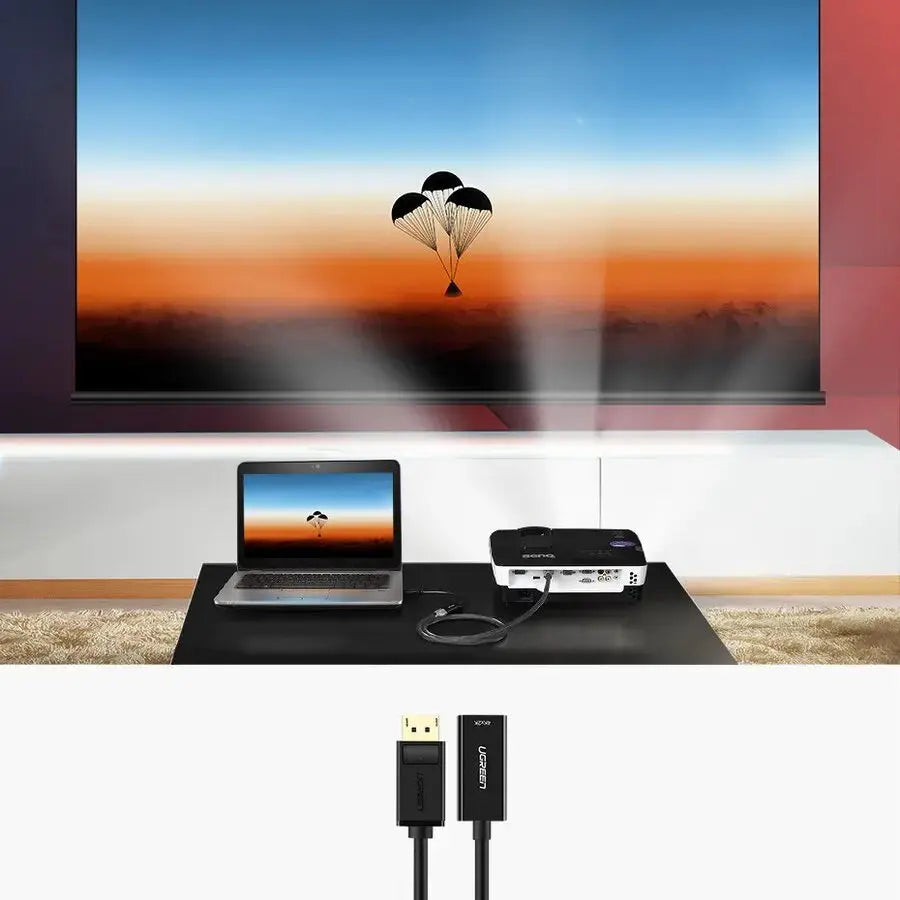

Projectors. Connect to HDMI projectors for meetings, classes and presentations.
Full HD Display Adapter — Not a 4K or Bidirectional Converter
This model is intended for straightforward Full HD DisplayPort-to-HDMI conversion. It does not provide HDMI input, DisplayPort output, USB connectivity, capture functions or multi-monitor splitting.
What This Product Does
- Converts a full-size DisplayPort output into an HDMI female connection.
- Supports Full HD video up to 1920 × 1080 at 60Hz.
- Transmits compatible digital audio and video together.
- Supports compatible LPCM audio.
- Supports mirror and extended-desktop display modes.
- Works without a separately installed driver.
- Connects PCs and graphics cards to HDMI monitors.
- Connects compatible computers to televisions and projectors.
- Uses gold-plated connector surfaces.
- Includes a DisplayPort release-button plug.
- Uses a short flexible cable to reduce port strain.
- Provides a compact adapter for office and travel use.
- The computer must have a full-size DisplayPort output.
- This is not a Mini DisplayPort or USB-C adapter.
- The destination display must have an HDMI input.
- A separate HDMI male-to-male cable is required.
- Conversion works only from DisplayPort to HDMI.
- HDMI-to-DisplayPort reverse use is not supported.
- Maximum verified resolution is 1080p@60Hz.
- The adapter cannot add audio if the source DisplayPort does not output audio.
- The adapter cannot increase the source computer’s maximum resolution.
- It supports one display connection and is not a splitter.
Frequently Asked Questions
Important answers for customers buying the UGREEN 40362 DisplayPort to HDMI Adapter.
What is UGREEN 40362 used for?. It connects a computer or graphics card with full-size DisplayPort output to an HDMI monitor, television or projector.
What is the maximum resolution?. The verified maximum specification for SKU 40362 is Full HD 1920 × 1080 at 60Hz.
Does this adapter support 4K?. The current UGREEN India title and description identify this model as 1080p@60Hz. Do not purchase it specifically for 4K output.
Can it convert HDMI to DisplayPort?. No. It is unidirectional and works only from a DisplayPort source to an HDMI display.
Is an HDMI cable included?. No HDMI cable is specified as included. A separate HDMI male-to-male cable is required.
Does it carry audio?. Yes, when the source DisplayPort output and HDMI destination support audio. Select the HDMI display as the sound-output device in the computer settings.
Does it support mirror and extended mode?. Yes. Compatible computers can duplicate the main screen or use the HDMI display as an extended desktop.
Does it require a driver?. No additional adapter driver is normally required. Display configuration is handled through the computer’s operating-system settings.
Will it work with a USB-C laptop?. Not directly. The laptop must have a full-size DisplayPort output. A USB-C laptop requires a suitable USB-C-to-HDMI adapter instead.
Is DisplayPort the same as Mini DisplayPort?. No. This adapter uses the larger full-size DisplayPort connector and does not fit Mini DisplayPort or Thunderbolt 1/2 sockets.
Can it connect a gaming console to a DisplayPort monitor?. No. Consoles normally provide HDMI output, and this adapter does not convert HDMI output into DisplayPort input.
Buy Direct from Official UGREEN India
Shop genuine UGREEN display adapters in India with GST invoice availability, assured authenticity, official India warranty support and responsive local assistance.
At a glance.
- Brand
- UGREEN
- Model
- MM137
- SKU
- 40362
- Product Type
- Active DisplayPort-to-HDMI video and audio converter adapter
- Input Connector
- Full-size DisplayPort male
- Output Connector
- Standard HDMI Type-A female
- Signal Direction
- DisplayPort source to HDMI display only
- Reverse HDMI-to-DisplayPort Use
- Not supported
- Maximum Verified Resolution
- 1920 × 1080 at 60Hz
- 4K Support
- Not supported; this model is specified for up to 1080p at 60Hz
- Audio Support
- Compatible digital audio transmission, including supported LPCM audio
- Audio Requirement
- The DisplayPort source and HDMI destination must support audio
- Display Modes
- Mirror and extended-desktop modes, depending on source operating-system support
- Driver Requirement
- Plug and play; no additional driver normally required
- DisplayPort Compatibility
- Compatible DisplayPort, DP and DP++ source equipment as listed
- HDMI Cable
- Separate HDMI male-to-male cable required
- Approximate Adapter Length
- 25cm according to regional product specifications
- Housing Material
- ABS with PVC/TPE cable construction, depending on regional specification terminology
- Connector Finish
- Gold-plated connector surfaces
- DisplayPort Retention
- Release-button design shown on the DisplayPort male plug
- Colour
- Black
- Typical Compatible Sources
- Desktop PCs, workstations, graphics cards, docking stations and laptops with compatible full-size DisplayPort output
- Typical Compatible Displays
- HDMI monitors, televisions, projectors and HDTV displays
- Operating Systems
- Hardware-based operation with compatible Windows, macOS and Linux systems
- EAN
- 6957303843626 according to regional product specifications
- Package Contents
- 1× UGREEN MM137 DisplayPort male to HDMI female adapter; HDMI cable sold separately
- Best Use
- Office monitors, presentations, conference rooms, classrooms, televisions, projectors and desktop workstations
- GST Invoice
- Available from UGREEN India
Complete product information for UGREEN MM137 / SKU 40362 DisplayPort Male to HDMI Female Adapter.
